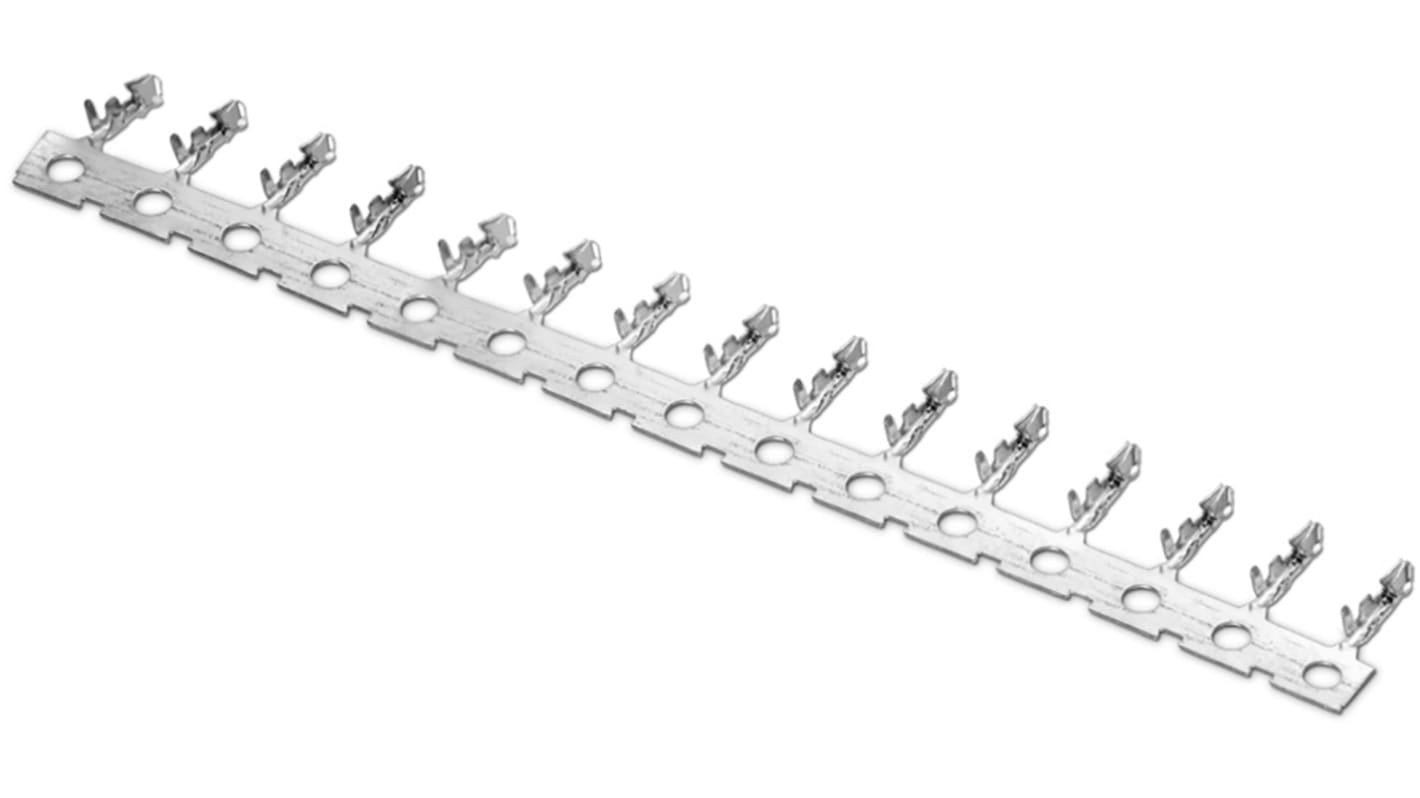

Wurth Elektronik WR-WTB Series Female Crimp Terminal, 32AWG Min, 28AWG Max
- RS Stock No.:
- 176-9916
- Mfr. Part No.:
- 66500113722DEC
- Manufacturer:
- Wurth Elektronik
400 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 100)
MYR0.841
| Units | Per Unit | Per Bag* |
| 100 - 100 | MYR0.841 | MYR84.10 |
| 200 - 400 | MYR0.808 | MYR80.80 |
| 500 - 900 | MYR0.774 | MYR77.40 |
| 1000 + | MYR0.757 | MYR75.70 |
| *price indicative | ||
- RS Stock No.:
- 176-9916
- Mfr. Part No.:
- 66500113722DEC
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Wurth Elektronik WR-WTB is a 1.00 mm female crimp terminal with tin contact plating and phosphor bronze contact material.
RoHS compliant
Lead free
Operating temperature ranging between -25°C up to +85°C
25 mating cycles
Wire dimension : 32-28 (AWG)
Lead free
Operating temperature ranging between -25°C up to +85°C
25 mating cycles
Wire dimension : 32-28 (AWG)
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | Wire to Board Connectors |
| Series | WR-WTB |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 32AWG |
| Maximum Wire Size AWG | 28AWG |
| Contact Material | Phosphor Bronze |
| Series Number | 6650 |
| Maximum Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
