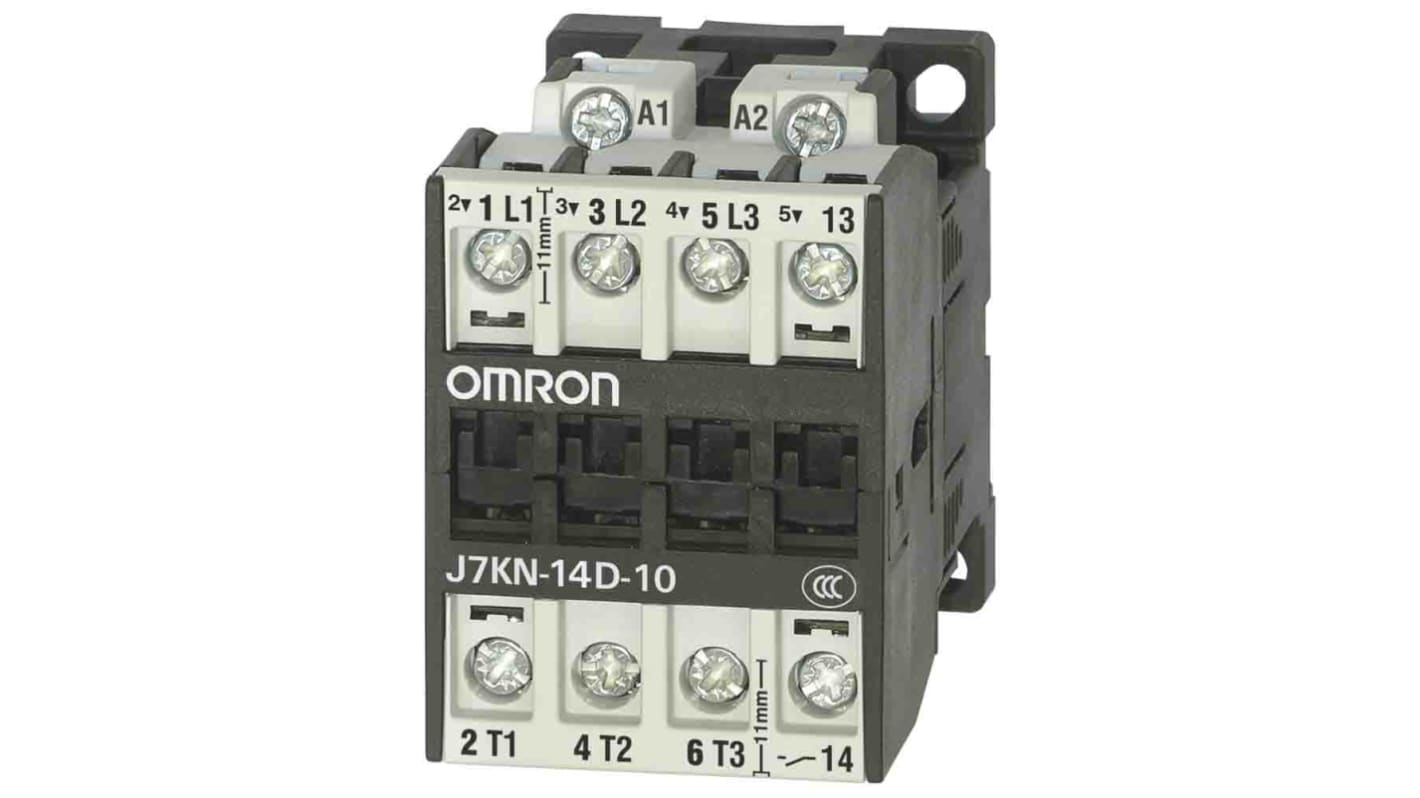

Omron J7KN Contactor, 24V dc Coil, 3-Pole, 14 A, 5.5 kW 45V, 1 NO/3 NC
- RS Stock No.:
- 215-5190
- Mfr. Part No.:
- J7KN-14D-10 24D
- Manufacturer:
- Omron
Subtotal (1 unit)*
MYR308.36
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR308.36 |
*price indicative
- RS Stock No.:
- 215-5190
- Mfr. Part No.:
- J7KN-14D-10 24D
- Manufacturer:
- Omron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Current | 14A | |
| Power Rating | 5.5kW | |
| Series | J7KN | |
| Mount Type | Front | |
| Normal State Configuration | 1 NO/3 NC | |
| Auxiliary Contact Configuration | 1 NC | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 25A | |
| Control Circuit Voltage Uc | 45V | |
| Maximum Operating Temperature | 60°C | |
| Length | 65mm | |
| Depth | 66mm | |
| Width | 45mm | |
| Standards/Approvals | EN 60947-4-1 | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Current 14A | ||
Power Rating 5.5kW | ||
Series J7KN | ||
Mount Type Front | ||
Normal State Configuration 1 NO/3 NC | ||
Auxiliary Contact Configuration 1 NC | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 25A | ||
Control Circuit Voltage Uc 45V | ||
Maximum Operating Temperature 60°C | ||
Length 65mm | ||
Depth 66mm | ||
Width 45mm | ||
Standards/Approvals EN 60947-4-1 | ||
Pole and Throw Configuration 3 | ||
The Omron J7KN series motor contactor has 3-main-poles.This modular system consists of main contactors and additional contact blocks. The basic units can be combined with auxiliary contacts.
AC and DC operated
Integrated auxiliary contacts
Screw fixing and snap fitting
System contactors for Fuseless Load Feeders with integrated link modules
Finger proof (BGV A2)
