Lapp, M16 Thread, Fibreglass Reinforced Polyamide, 69 mm Diameter Threaded
- RS Stock No.:
- 243-9387
- Mfr. Part No.:
- 52006030
- Manufacturer:
- Lapp
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
MYR91.58
FREE delivery for orders over RM 150.00
In Stock
- 95 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 15 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 20 | MYR18.316 | MYR91.58 |
| 25 - 45 | MYR17.93 | MYR89.65 |
| 50 + | MYR17.392 | MYR86.96 |
*price indicative
- RS Stock No.:
- 243-9387
- Mfr. Part No.:
- 52006030
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Threaded | Yes | |
| Product Type | Cable Gland Plug | |
| Thread Size | M16 | |
| Sub Type | Blanking Plug | |
| Material | Fibreglass Reinforced Polyamide | |
| Diameter | 69mm | |
| Colour | Light Grey | |
| Hazardous Area Certification | No | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Series | SKINDICHT BL | |
| Standards/Approvals | acc. to DIN 40430 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Threaded Yes | ||
Product Type Cable Gland Plug | ||
Thread Size M16 | ||
Sub Type Blanking Plug | ||
Material Fibreglass Reinforced Polyamide | ||
Diameter 69mm | ||
Colour Light Grey | ||
Hazardous Area Certification No | ||
IP Rating IP54 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Series SKINDICHT BL | ||
Standards/Approvals acc. to DIN 40430 | ||
- COO (Country of Origin):
- DE

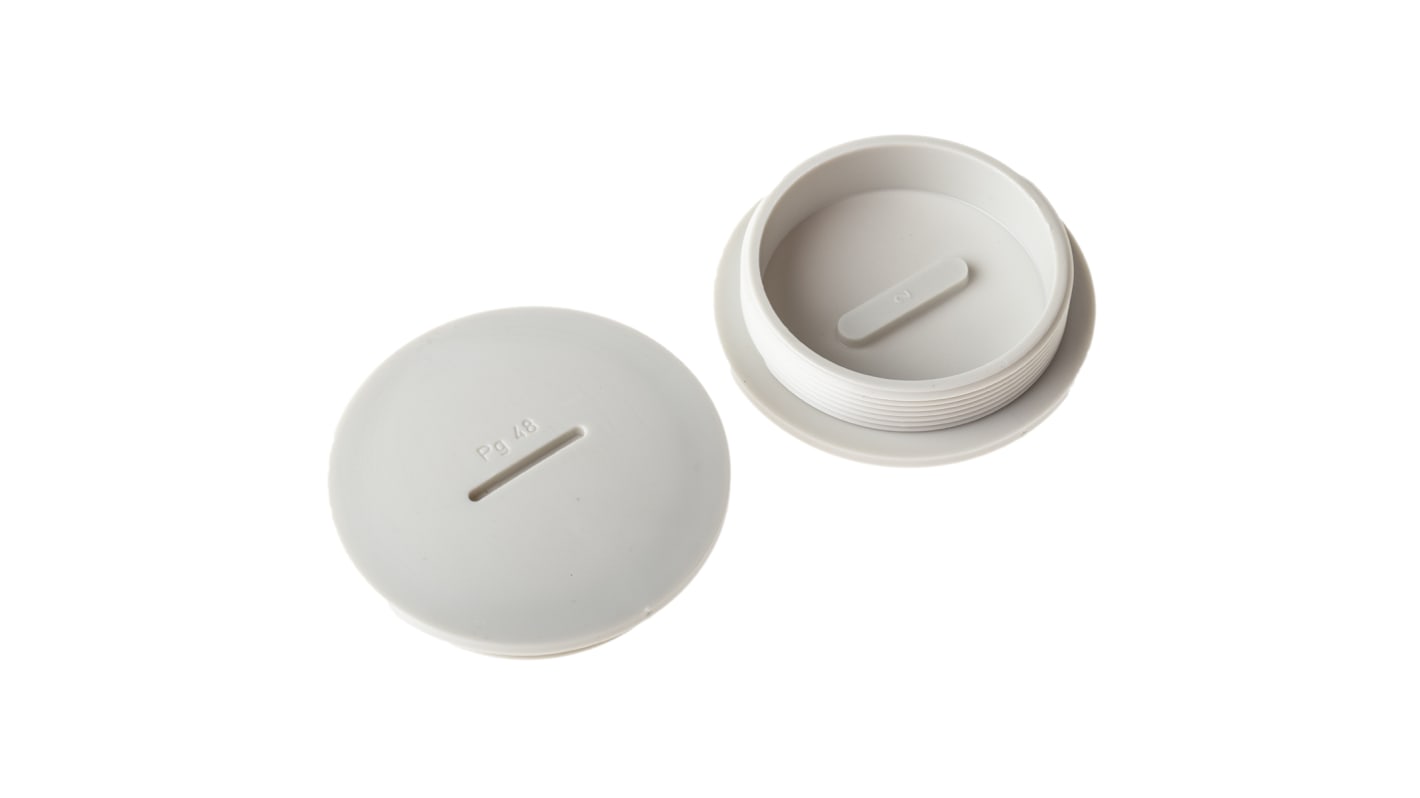

Lapp Blanking Plug - PG
From Lapp, these blanking plugs are used to close other pre-drilled threaded bore holes. If a cable opening in a panel, junction box or machine housing has become redundant, these blanking plugs can be used to seal the bore hole.
Ensuring a low level of environmental resistance (or higher when coupled with an o-ring) these blind plugs have far more use than the merely aesthetic, and can help protect wiring and machinery components.
Features and Benefits
• Robust Glass Fibre Reinforced Construction
• IP54 Protection (IP68 when used with appropriate o-ring)
• PG Sizes
Applications
These blind plugs can be used in;
• Control Cabinet Manufacturing
• Distribution Boxes
• Junction Boxes
Accessories
These blind plugs can be used with corresponding Lapp o-rings for added environmental sealing.
• 664-4609 are M 12 x 1.5mm O-Rings
• 664-4606 are M 12 x 2.0mm O-Rings
• 664-4603 are M 16 x 1.5mm O-Rings
• 664-4612 are M 16 x 2.0mm O-Rings
• 664-4619 are M 20 x 1.5mm O-Rings
• 664-4615 are M 20 x 2.0mm O-Rings
• 664-4628 are M 25 x 2.0mm O-Rings
• 664-4621 are M 32 x 2.0mm O-Rings
• 664-4625 are M 40 x 2.0mm O-Rings
• 664-4634 are M 50 x 2.0mm O-Rings
