Diodes Inc BC807-16-7-F Transistor, -500 mA PNP, -45 V, 3-Pin SOT-23

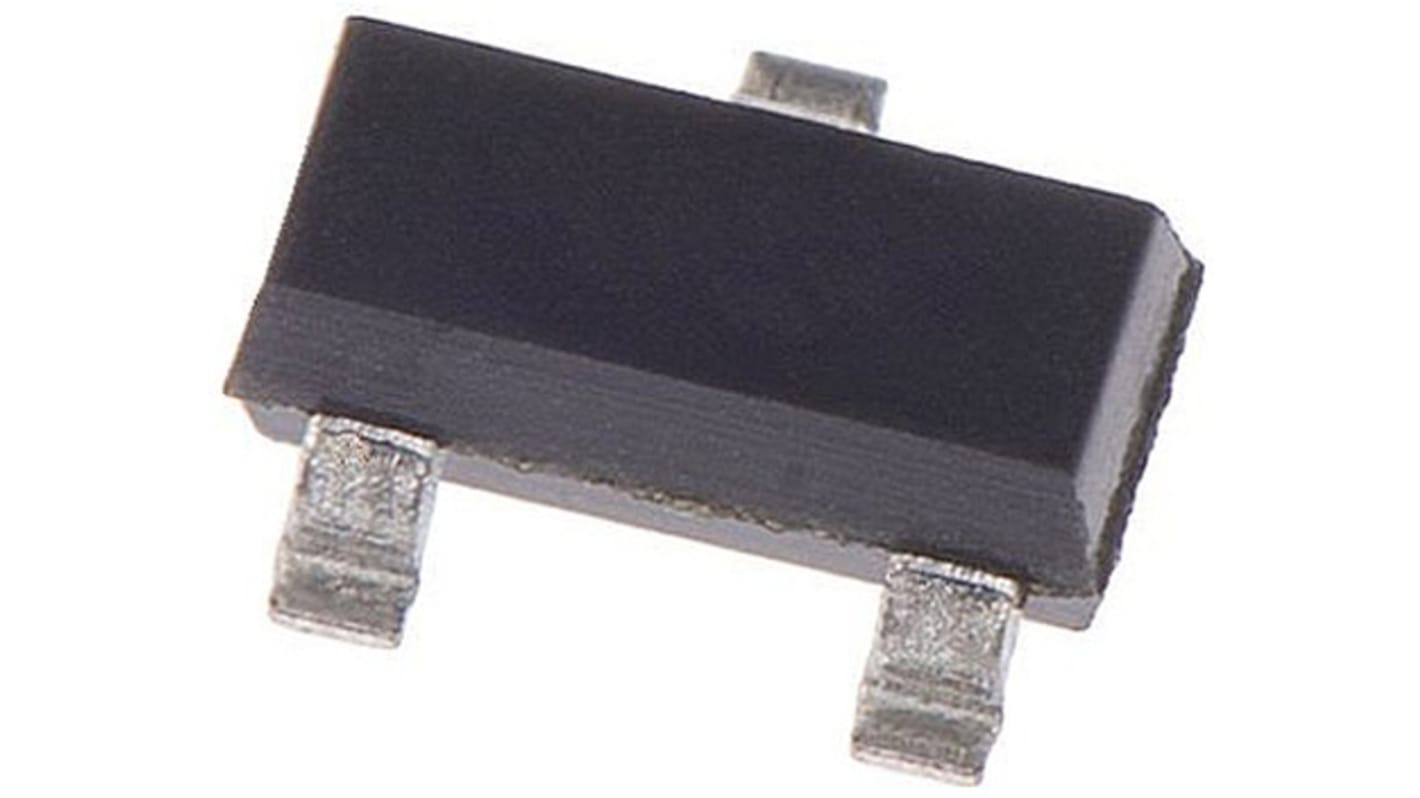

This image is representative of the product range

Bulk discount available

Subtotal (1 tape of 250 units)*

MYR90.75

Stock information currently inaccessible - Please check back later

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Product Type	Transistor
	Maximum DC Collector Current Idc	-500mA
	Maximum Collector Emitter Voltage Vceo	-45V
	Package Type	SOT-23
	Mount Type	Surface
	Transistor Configuration	Single
	Maximum Collector Base Voltage VCBO	-50V
	Minimum Operating Temperature	-55°C
	Maximum Emitter Base Voltage VEBO	-5V
	Minimum DC Current Gain hFE	60
	Maximum Transition Frequency ft	100MHz
	Transistor Polarity	PNP
	Maximum Power Dissipation Pd	310mW
	Pin Count	3
	Maximum Operating Temperature	150°C
	Series	BC807
	Standards/Approvals	No
	Height	1.1mm
	Length	3mm
	Automotive Standard	AEC-Q100, AEC-Q101, AEC-Q200

	Select all
	Brand DiodesZetex
	Product Type Transistor
	Maximum DC Collector Current Idc -500mA
	Maximum Collector Emitter Voltage Vceo -45V
	Package Type SOT-23
	Mount Type Surface
	Transistor Configuration Single
	Maximum Collector Base Voltage VCBO -50V
	Minimum Operating Temperature -55°C
	Maximum Emitter Base Voltage VEBO -5V
	Minimum DC Current Gain hFE 60
	Maximum Transition Frequency ft 100MHz
	Transistor Polarity PNP
	Maximum Power Dissipation Pd 310mW
	Pin Count 3
	Maximum Operating Temperature 150°C
	Series BC807
	Standards/Approvals No
	Height 1.1mm
	Length 3mm
	Automotive Standard AEC-Q100, AEC-Q101, AEC-Q200
