Diodes Inc MMBTA56-7-F PNP Transistor, -500 mA, -80 V, 3-Pin SOT-23

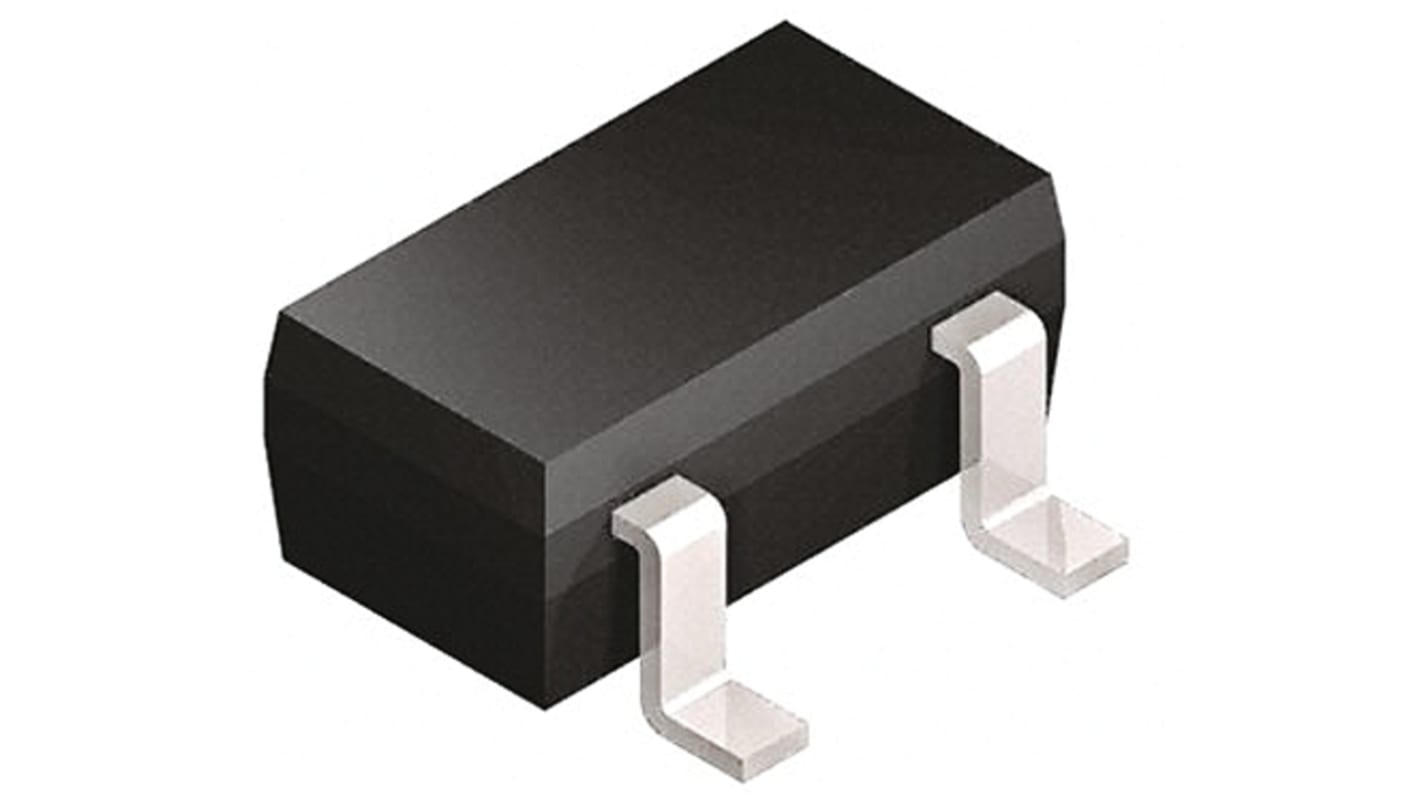

This image is representative of the product range

Bulk discount available

Subtotal (1 reel of 3000 units)**

MYR462.00

6000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Manufacturer	DiodesZetex
	Transistor Type	PNP
	Maximum DC Collector Current	-500 mA
	Maximum Collector Emitter Voltage	-80 V
	Package Type	SOT-23
	Mounting Type	Surface Mount
	Maximum Power Dissipation	300 mW
	Minimum DC Current Gain	100
	Transistor Configuration	Single
	Maximum Collector Base Voltage	-80 V
	Maximum Emitter Base Voltage	-4 V
	Maximum Operating Frequency	50 MHz
	Pin Count	3
	Number of Elements per Chip	1
	Dimensions	3 x 1.4 x 1mm
	Maximum Operating Temperature	+150 °C

	Select all
	Manufacturer DiodesZetex
	Transistor Type PNP
	Maximum DC Collector Current -500 mA
	Maximum Collector Emitter Voltage -80 V
	Package Type SOT-23
	Mounting Type Surface Mount
	Maximum Power Dissipation 300 mW
	Minimum DC Current Gain 100
	Transistor Configuration Single
	Maximum Collector Base Voltage -80 V
	Maximum Emitter Base Voltage -4 V
	Maximum Operating Frequency 50 MHz
	Pin Count 3
	Number of Elements per Chip 1
	Dimensions 3 x 1.4 x 1mm
	Maximum Operating Temperature +150 °C
