RS PRO CR2032 Battery Holder Surface Mount
- RS Stock No.:
- 185-4783
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR6.43
FREE delivery for orders over RM 150.00
In Stock
- 63 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR6.43 |
| 5 + | MYR5.29 |
*price indicative
- RS Stock No.:
- 185-4783
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Battery Holder | |
| Compatible Battery Size | CR2032 | |
| Sub Type | Battery Holder | |
| Number of Cells | 1 | |
| Mount Type | PCB | |
| Body Material | Polybutylene Terephthalate | |
| Termination Type | Surface Mount | |
| Width | 16.1mm | |
| Standards/Approvals | No | |
| Series | CH005 | |
| Length | 28.5mm | |
| Height | 5.4mm | |
| Diameter | 20mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Battery Holder | ||
Compatible Battery Size CR2032 | ||
Sub Type Battery Holder | ||
Number of Cells 1 | ||
Mount Type PCB | ||
Body Material Polybutylene Terephthalate | ||
Termination Type Surface Mount | ||
Width 16.1mm | ||
Standards/Approvals No | ||
Series CH005 | ||
Length 28.5mm | ||
Height 5.4mm | ||
Diameter 20mm | ||
- COO (Country of Origin):
- CN

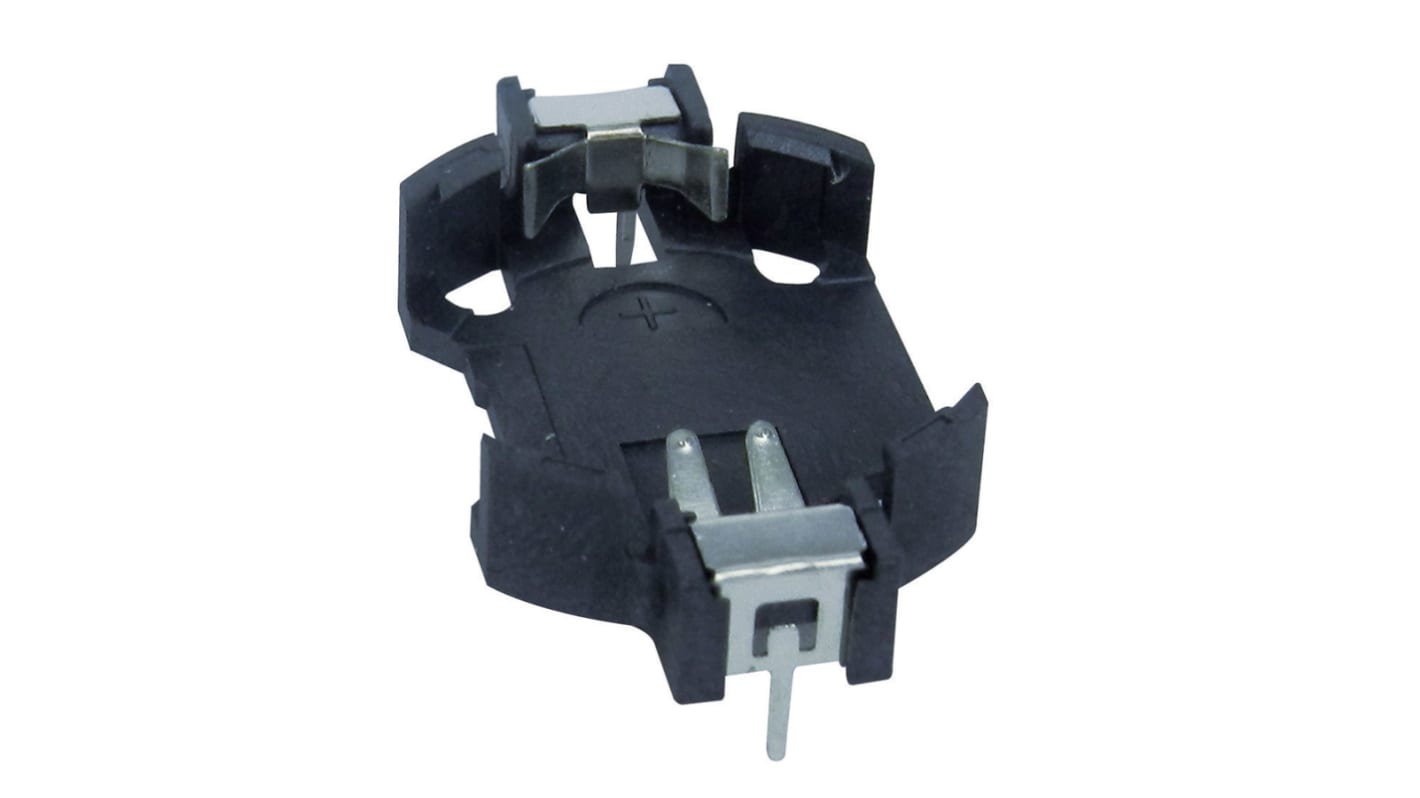

RS PRO Battery Holder
The RS PRO battery holder is suitable for a CR2032 battery and it has dimensions of 28.5mm x 16.1mm x 5.4mm. It has a voltage rating of 500V (AC/DC) and a current rating of 3A.
Features and Benefits
• Material: PBT
• Operating temperature ranges between -55°C and +85°C
• Contact: Electrode: Phosphor bronze 0.25mm thick gold 1u plated over nickel 5u minimum
• Insulation resistance: 100megaohms
• Contact resistance: 100milliohms maximum
• Humidity: 40°C
Certifications
• UL 94V0 approved
