RS PRO CR2032 Battery Holder Surface Mount
- RS Stock No.:
- 185-4723
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR6.52
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 4 | MYR6.52 |
| 5 + | MYR5.37 |
*price indicative
- RS Stock No.:
- 185-4723
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Compatible Battery Size | CR2032 | |
| Product Type | Battery Holder | |
| Number of Cells | 2 | |
| Sub Type | Battery Holder | |
| Mount Type | PCB | |
| Body Material | Polybutylene Terephthalate | |
| Termination Type | Surface Mount | |
| Diameter | 20.5mm | |
| Length | 26mm | |
| Height | 7.1mm | |
| Series | CH258 | |
| Width | 23mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Compatible Battery Size CR2032 | ||
Product Type Battery Holder | ||
Number of Cells 2 | ||
Sub Type Battery Holder | ||
Mount Type PCB | ||
Body Material Polybutylene Terephthalate | ||
Termination Type Surface Mount | ||
Diameter 20.5mm | ||
Length 26mm | ||
Height 7.1mm | ||
Series CH258 | ||
Width 23mm | ||
Standards/Approvals No | ||

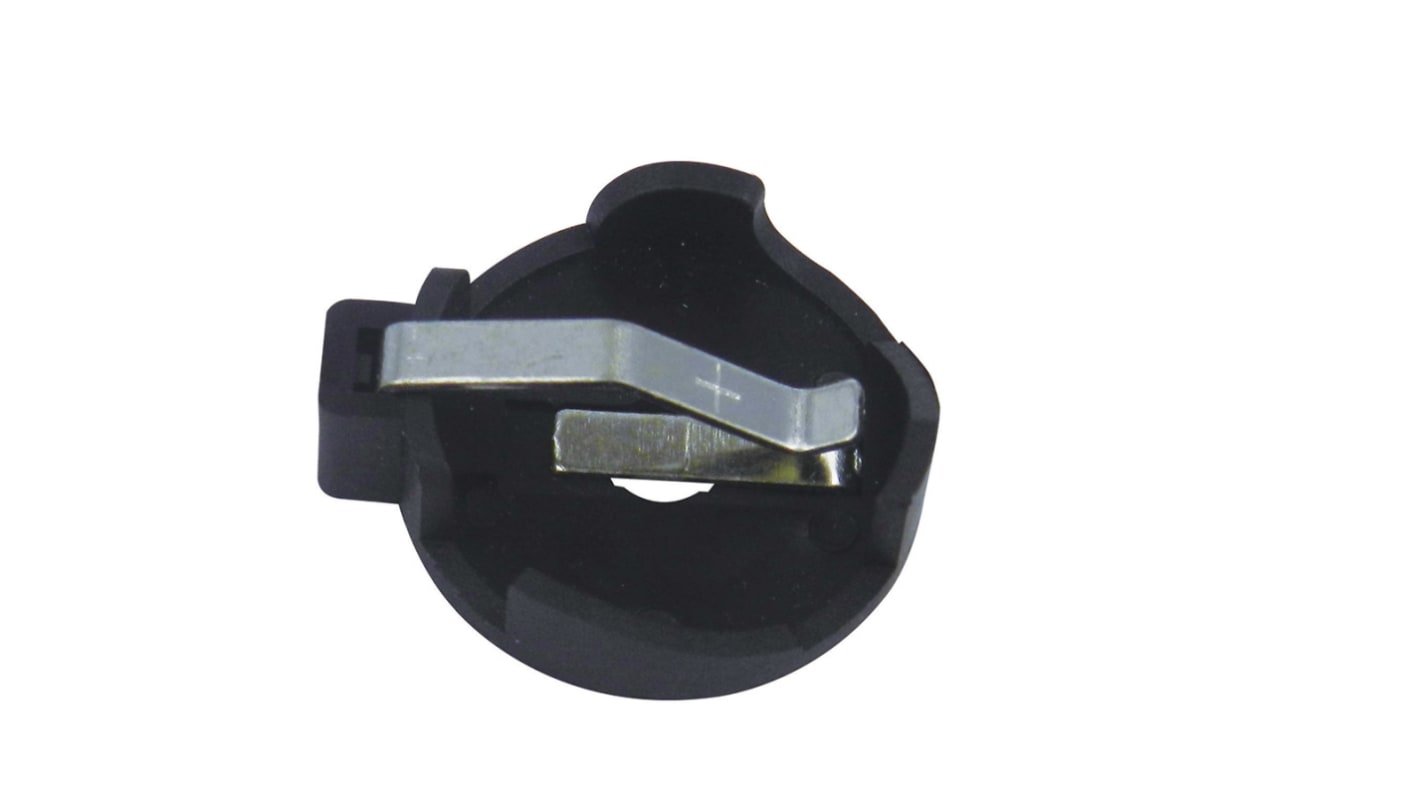

RS PRO Battery Holder
The RS PRO battery holder is suitable for a CR2032 battery and it has dimensions of 26mm x 7.1mm. It has a voltage rating of 250V (AC/DC) and a current rating of 2A.
Features and Benefits
• Material: PBT +30%GF
• Operating temperature ranges between -55°C and 85°C
• Contact: Electrode: Phosphor bronze 0.6mm thick tin plated over nickel
• Insulation resistance: 500megaohms
• Contact resistance: 30milliohms maximum
• Humidity: 40°C
Certifications
• UL 94V0 approved
