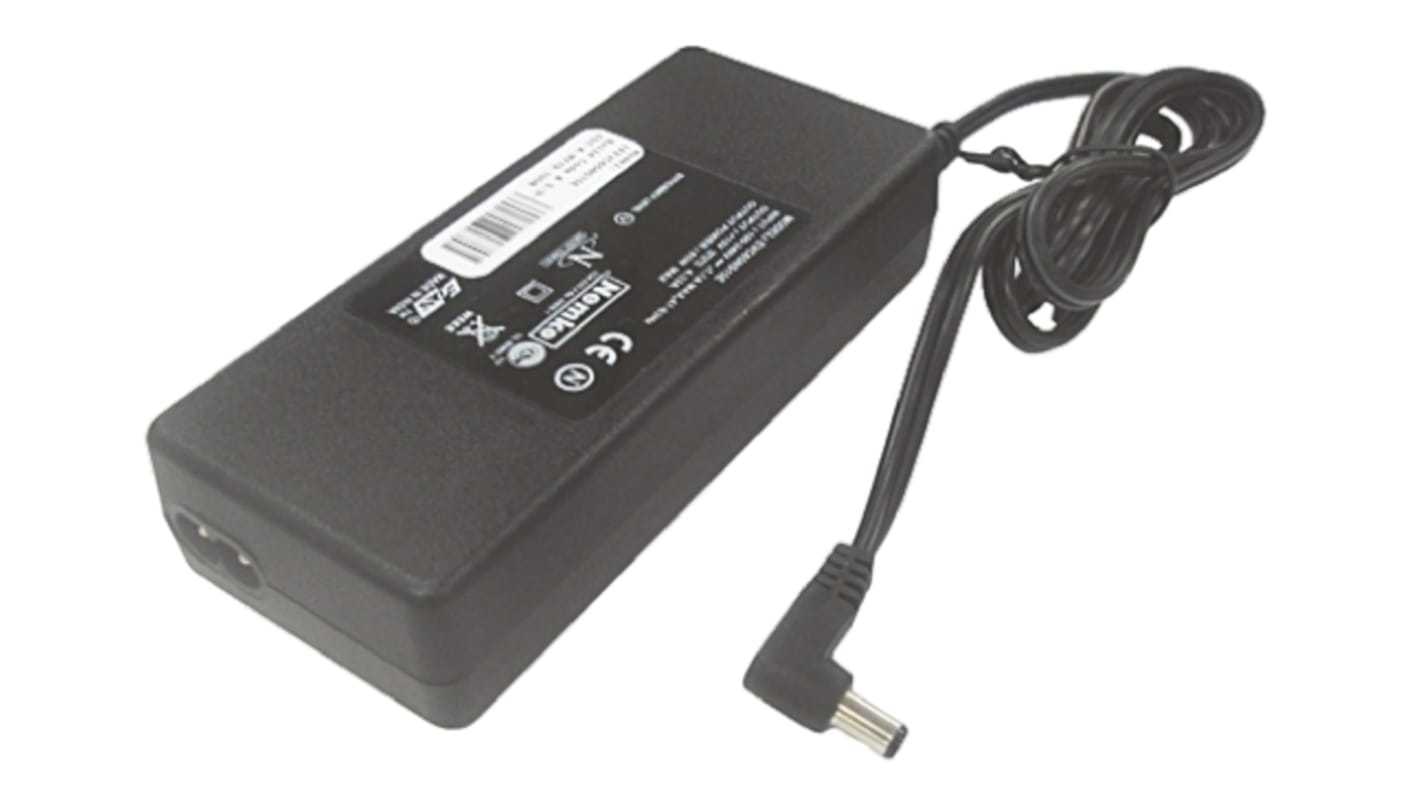

EOS 65 W Power Adapter AC/DC Adapter Optional, IEC 320 15V dc Output, 4.33 A
- RS Stock No.:
- 764-6798
- Mfr. Part No.:
- LFEVC65NS15E
- Manufacturer:
- EOS
Bulk discount available
Subtotal (1 unit)*
MYR419.91
FREE delivery for orders over RM 500.00
Being discontinued
- Final 14 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 1 - 9 | MYR419.91 |
| 10 - 49 | MYR411.09 |
| 50 + | MYR398.75 |
*price indicative
- RS Stock No.:
- 764-6798
- Mfr. Part No.:
- LFEVC65NS15E
- Manufacturer:
- EOS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EOS | |
| Product Type | AC/DC Adapter | |
| Sub Type | Power Adapter | |
| Plug Type | Optional, IEC 320 | |
| Output Voltage | 15V dc | |
| Output Connector Type | Right Angle Plug | |
| Power | 65W | |
| Cable Length | 1016mm | |
| Number of Outputs | 1 | |
| Input Connector Type | IEC 320-C8 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 4.33A | |
| Maximum Operating Temperature | 40°C | |
| Width | 58mm | |
| Standards/Approvals | IEC 60950, UL 60950, CSA C22.2 No. 60950, EN 60950 | |
| Length | 133mm | |
| Depth | 29.2mm | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 88% | |
| Series | LFEVC65 | |
| Load Regulation | -5 %, 2 % | |
| Minimum Input Voltage | 264V ac | |
| Energy Efficiency Level | V | |
| Select all | ||
|---|---|---|
Brand EOS | ||
Product Type AC/DC Adapter | ||
Sub Type Power Adapter | ||
Plug Type Optional, IEC 320 | ||
Output Voltage 15V dc | ||
Output Connector Type Right Angle Plug | ||
Power 65W | ||
Cable Length 1016mm | ||
Number of Outputs 1 | ||
Input Connector Type IEC 320-C8 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 4.33A | ||
Maximum Operating Temperature 40°C | ||
Width 58mm | ||
Standards/Approvals IEC 60950, UL 60950, CSA C22.2 No. 60950, EN 60950 | ||
Length 133mm | ||
Depth 29.2mm | ||
Maximum Input Voltage 264V ac | ||
Efficiency 88% | ||
Series LFEVC65 | ||
Load Regulation -5 %, 2 % | ||
Minimum Input Voltage 264V ac | ||
Energy Efficiency Level V | ||
- COO (Country of Origin):
- IN
EOS 25W to 65W Single Output Switch Mode Desktop Power Supply - EVC Series
The EVC65 series is a 25 to 65W High Efficiency ErP Level V adapter product, offering high specifications and features in a small package size. A switch mode single output desktop power supply with universal input and compact design. This energy saving desktop power supply is ideal for laptops and multimedia, industrial, networking and printing applications.
Small and lightweight switch mode power supply
Efficiency up to 87%
Universal input
No load standby power < 0.5W
ErP Level V
EN55022-B, FCC Part 15 Level B Noise safety approvals
Class 2 Product
Standards
EN60950, IEC60950, CSA C22.2 No. 60950, UL60950 (NRTL)
