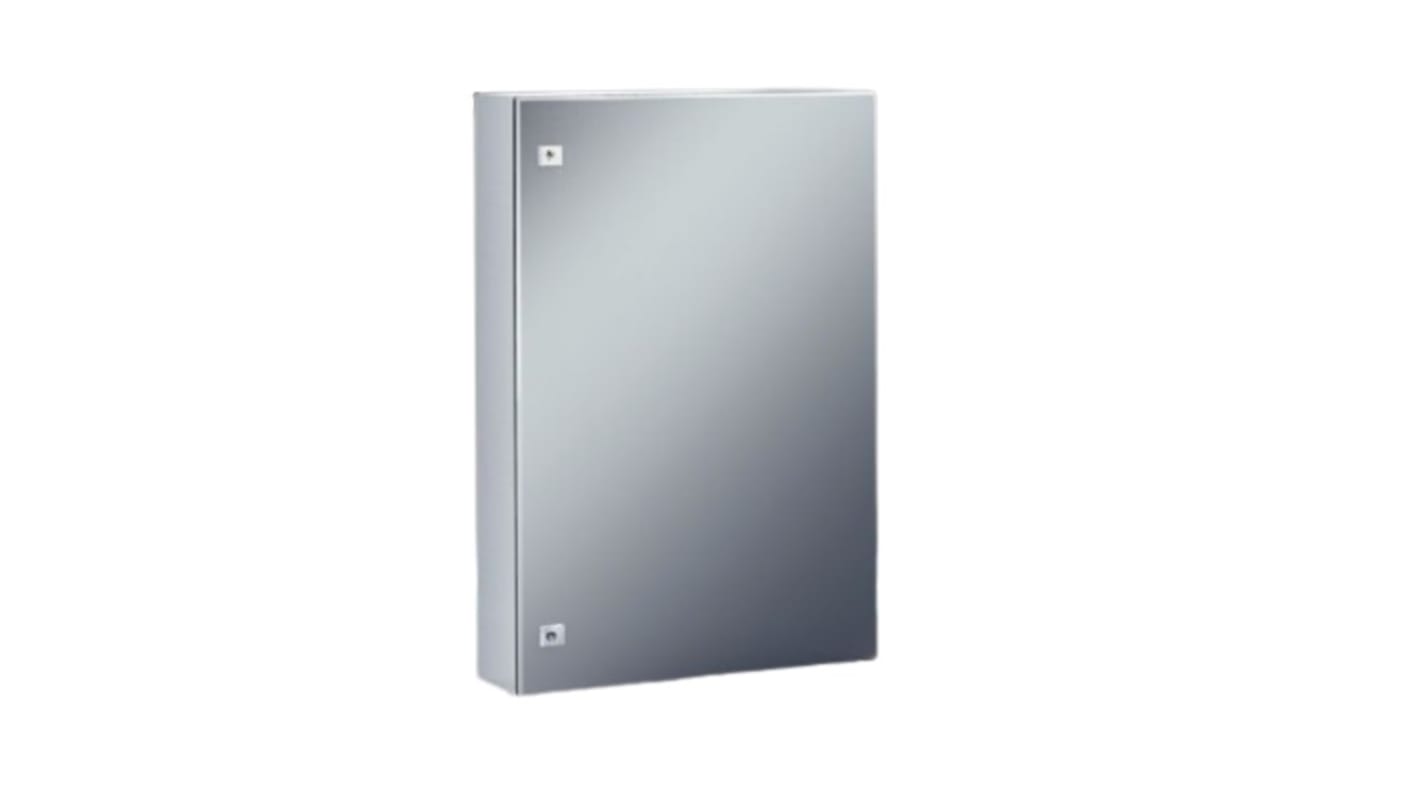

Rittal AE Series 304 Stainless Steel, 304 Stainless Steel Wall Box, IP66, IP66, 1000 mm x 800 mm x 300 mm
- RS Stock No.:
- 784-6178
- Mfr. Part No.:
- 1016600
- Manufacturer:
- Rittal
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 784-6178
- Mfr. Part No.:
- 1016600
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Wall Box | |
| External Height | 1000mm | |
| External Depth | 300mm | |
| Body Material | 304 Stainless Steel, 304 Stainless Steel | |
| Transparent Door | No | |
| IP Rating | IP66, IP66 | |
| Chassis Plate | No | |
| Door Lock Type | Cam | |
| Gland Plate | No | |
| External Width | 800mm | |
| Internal Mount Type | Panel, Panel | |
| Colour | Unpainted | |
| Mounting plate | Yes | |
| Series | AE | |
| Standards/Approvals | UL, UL | |
| Hazardous Area Certification | No | |
| IK Rating | IK08, IK08 | |
| Fixing Kit | No | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Wall Box | ||
External Height 1000mm | ||
External Depth 300mm | ||
Body Material 304 Stainless Steel, 304 Stainless Steel | ||
Transparent Door No | ||
IP Rating IP66, IP66 | ||
Chassis Plate No | ||
Door Lock Type Cam | ||
Gland Plate No | ||
External Width 800mm | ||
Internal Mount Type Panel, Panel | ||
Colour Unpainted | ||
Mounting plate Yes | ||
Series AE | ||
Standards/Approvals UL, UL | ||
Hazardous Area Certification No | ||
IK Rating IK08, IK08 | ||
Fixing Kit No | ||
- COO (Country of Origin):
- DE
Rittal Stainless Steel Wall Box, 800mm Width, 1000mm Height - AE Series - 1016600
Use this secure wall box from Rittal to protect and store valuables and equipment. The robust 304-grade stainless steel material is robust and corrosion-resistant to withstand use in heavy-duty industrial environments. The steel door shields the contents from view to enhance security in your workplace. Its dimensions of 1000 (height) x 800 (width) x 300mm (depth) provide ample room for storing a variety of items, such as keys or electrical switches.
Features & Benefits
• Cam lock to prevent unauthorised access to the contents of the box
• Wall bracket installation for simple and secure mounting
• Door opens at a 130° angle for ease of access to the interior of the box
Applications
• Industrial work areas
• Electrical control rooms
• Apartment complexes
Can I use this wall box in damp or dusty environments?
Yes, this wall box has a foamed-in polyurethane (PU) seal around the opening to prevent dust, moisture and other contaminants from entering the box. It also has an IP66 (ingress protection) rating, indicating that it's fully shielded against dust and protected against high-pressure water jets.
Rittal AE Compact Enclosures
The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.
Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°
Enclosure Canopy - available separately
Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm
Black Plastic Handles - available separately
Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E
Approvals
UL, CUL, TUV, CSA and Lloyds Register of Shipping.
