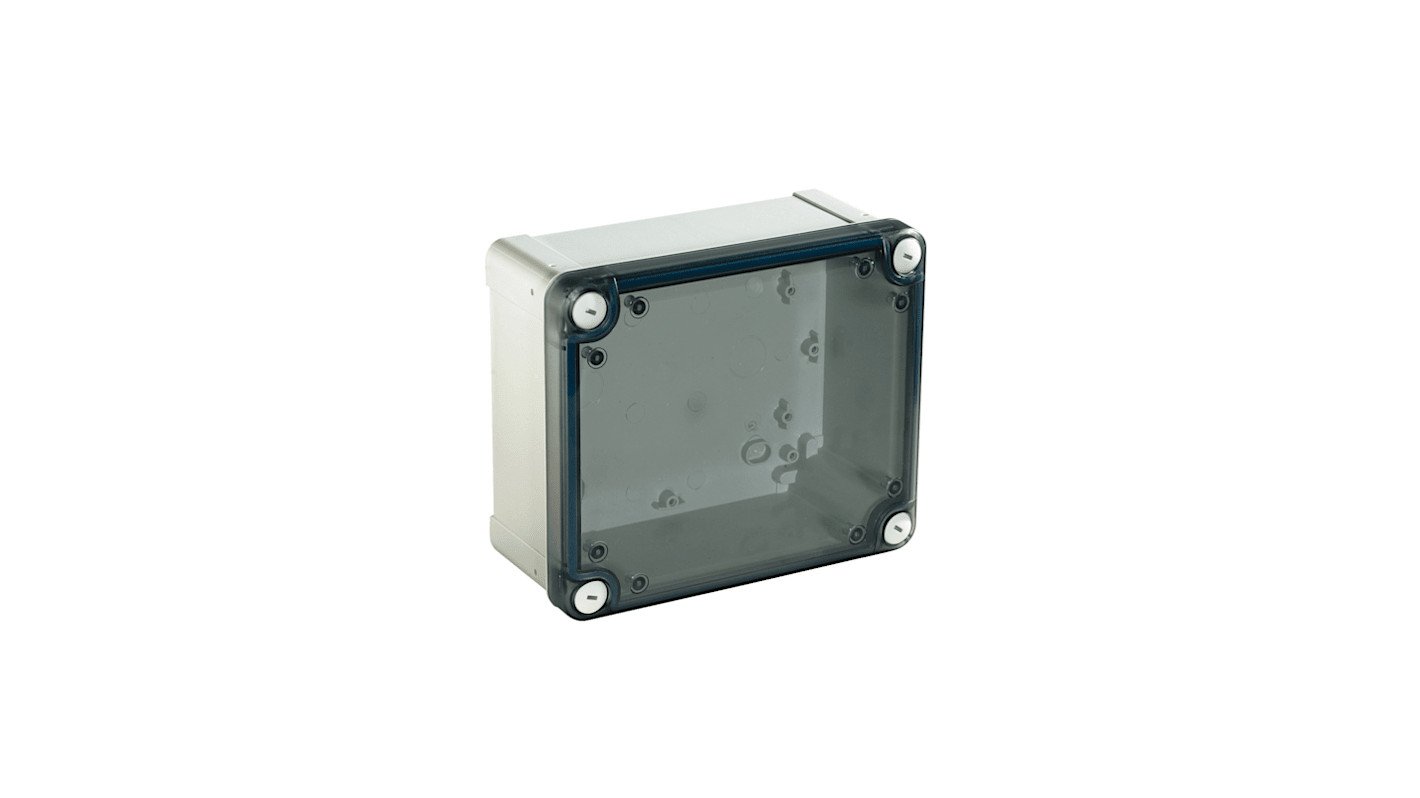

Schneider Electric Thalassa TBP Series Polycarbonate Wall Box, IP66, 164 mm x 121 mm x 87mm

RS Stock No.:: 219-9634
Mfr. Part No.:: NSYTBP16128T
Manufacturer:: Schneider Electric

Schneider Electric Thalassa TBP Series Polycarbonate Wall Box, IP66, 164 mm x 121 mm x 87mm

Price Each (In a Pack of 2)

MYR146.555

6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Pack**
2 +	MYR146.555	MYR293.11

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 219-9634
Mfr. Part No.:: NSYTBP16128T
Manufacturer:: Schneider Electric

Schneider Electric Thalassa TBP Polycarbonate Industrial Wall Box Enclosures.

From Schneider Electric the Thalassa TBP wall box enclosures provide protection for small components with various applications plus offering 2 types of cover, Opaque and Clear Transparent. Excellent for protecting components from liquids as is IP 66 rated to NEMA 4-4X (IK 08 mechanical resistance) and is Type II double electrical insulated with Glow wire resistance to 960°C. The Thalassa TBP offers you a choice of 36 plus different models in various sizes.

Thalassa TBP Wall Box Enclosure Features and Benefits.

Certification to UL 508A.

Covers lock by 4 plastic captive screws (course thread outside seal).

Choose from over 30 plus Thalassa TBP models.

Low covers from 10 mm and 20 mm.

High covers from 40 mm, 60 mm, and 80 mm.

2 x Types of cover (opaque and transparent).

Fixing studs for enclosure and cover.

Easy to machine.

Protection.

Watertight to IP 66, NEMA 4-4X.

Polyurethane gasket on the wall box enclosure lid.

Double electrical insulation, Type II.

Glow wire resistance: 960°C.

Operating temperature -25°C to +80°C.

IK 08 Mechanical resistance.

Solid hard-wearing rounded design.

Applications.

Thalassa TBP Wall Box enclosure has many applications where protecting components is important in all environments.

Junction boxes, protecting electronic cards, where you require to protect from dust or liquid including at sea in harsh conditions.

NSYTBP16128T Thalassa TBP Multi-Purpose Industrial Polycarbonate Wall Box Enclosure Transparent Cover.

Thalassa TBP industrial box enclosure.

Wall mounted.

Outdoor (with canopy or shelter and anticondensation valve)

One-piece moulded body.

Low Transparent front cover.

Fixing with Plastic screws.

Locked by Outside sealed area – Flat captive screw.

Cover and captive screws are removeable.

Made from Grey RAL 7035 Transparent, Polycarbonate.

Insulation class II.

IP66 conforming to NEMA 4.4X.

IK08 conforming to IEC 62262.

Fire resistant to 960°.

Internal Dimensions.

Height 150mm, Width 105 mm, Depth 80 mm.

What is included?

1 x Enclosure body, 1 x Enclosure Cover, 4 x Cover screws.

Approvals

TÜV, UL.

Standards

IEC 62208, UL 508 A.

Attribute	Value
External Height	164 mm
External Width	121 mm
External Depth	87mm
Body Material	Polycarbonate
IP Rating	IP66
Chassis Plate	No
Door Lock Type	Screw
Gland Plate	No
Colour	Grey, Transparent
RAL Code	RAL 7035
Series	Thalassa TBP
Better World Product	Yes
Better World Verification	Green Premium
For Protection Of	Multipurpose
Special Features	Flame Resistant
IK Rating	IK08
