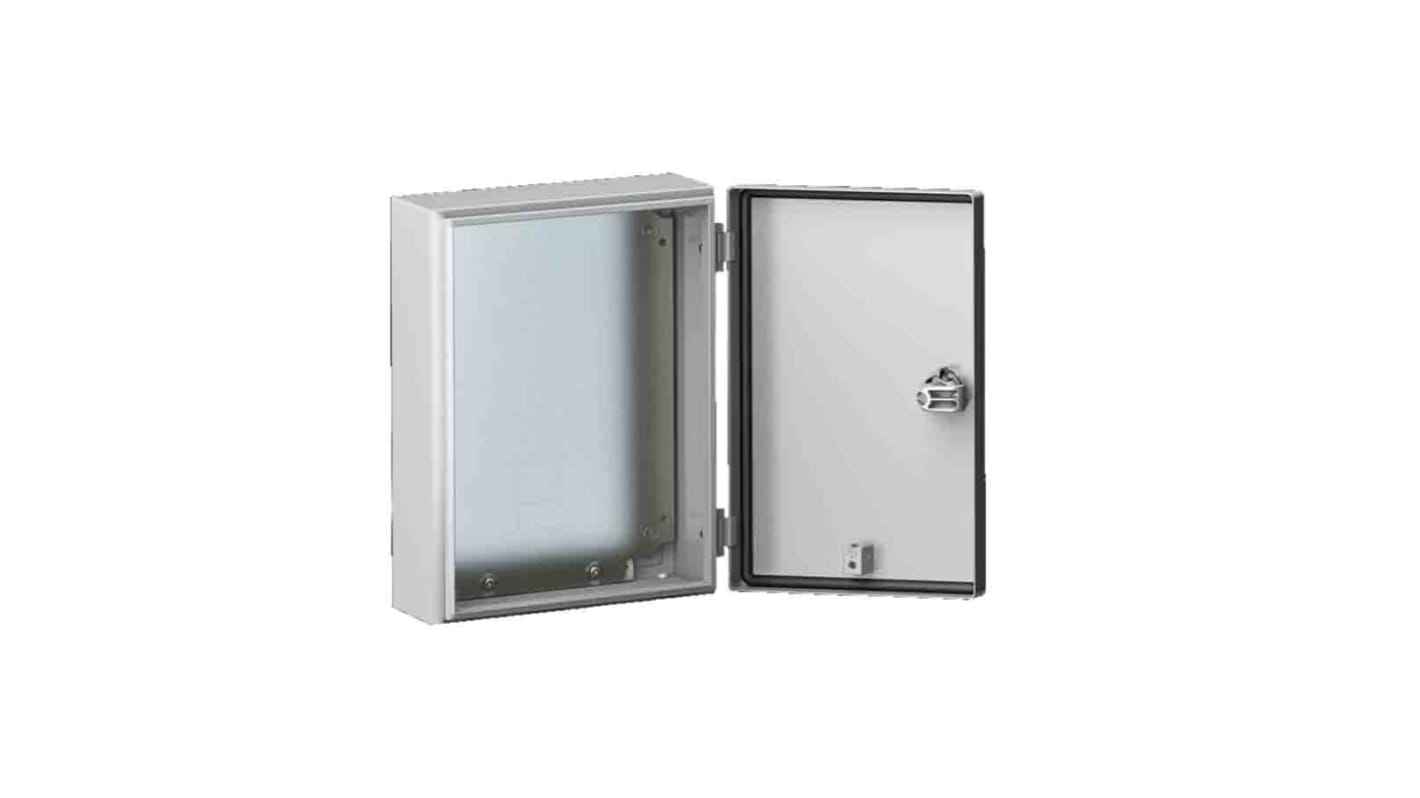

Rittal KX Series Sheet Steel Wall Box, IP66, 300 mm x 300 mm x 120mm
- RS Stock No.:
- 202-3888
- Mfr. Part No.:
- 1555000
- Manufacturer:
- Rittal
28 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR563.46
Units | Per Unit |
|---|---|
| 1 - 4 | MYR563.46 |
| 5 - 24 | MYR547.68 |
| 25 + | MYR450.74 |
- RS Stock No.:
- 202-3888
- Mfr. Part No.:
- 1555000
- Manufacturer:
- Rittal
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Rittal Lockable Steel Terminal Box, 300mm Height, 120mm Depth - KX Series - 1555000
Keep your electrical equipment safe with this lockable terminal box from Rittal. It’s made from durable sheet steel for resistance to impact and corrosion, making it a good choice for use in harsh environments. The solid front plate keeps the box's contents concealed from view for added security. This enclosure is fitted with a PU (polyurethane) seal for protection from moisture and contaminants. Its pre-fitted cam lock means it's only accessible using the supplied key, preventing unauthorised access. This box is supplied with a zinc-plated mounting plate that's corrosion-resistant for a long-lasting hold on a wall.
Features & Benefits
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Compact external dimensions of 300 (height) x 300 (width) x 120mm (depth) for installation in areas where space is limited
• Compact external dimensions of 300 (height) x 300 (width) x 120mm (depth) for installation in areas where space is limited
Applications
• Mechanical component housing
• Electrical devices
• Wire and cable organisation
• Electrical devices
• Wire and cable organisation
How much does the door to this enclosure open?
This enclosure's door opens at a wide angle of 180°, giving you ease of access to the contents of your box.
Note
Delivered in individual parts, still needs to be assembled
Specifications
Attribute | Value |
|---|---|
| External Height | 300 mm |
| External Width | 300 mm |
| External Depth | 120mm |
| Body Material | Sheet Steel |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | Yes |
| Door Lock Type | Cam |
| Gland Plate | Yes |
| Colour | RAL7035 |
| Series | KX |
| RAL Code | RAL 7035 |
| Standards Met | UL |
| IK Rating | IK08 |
