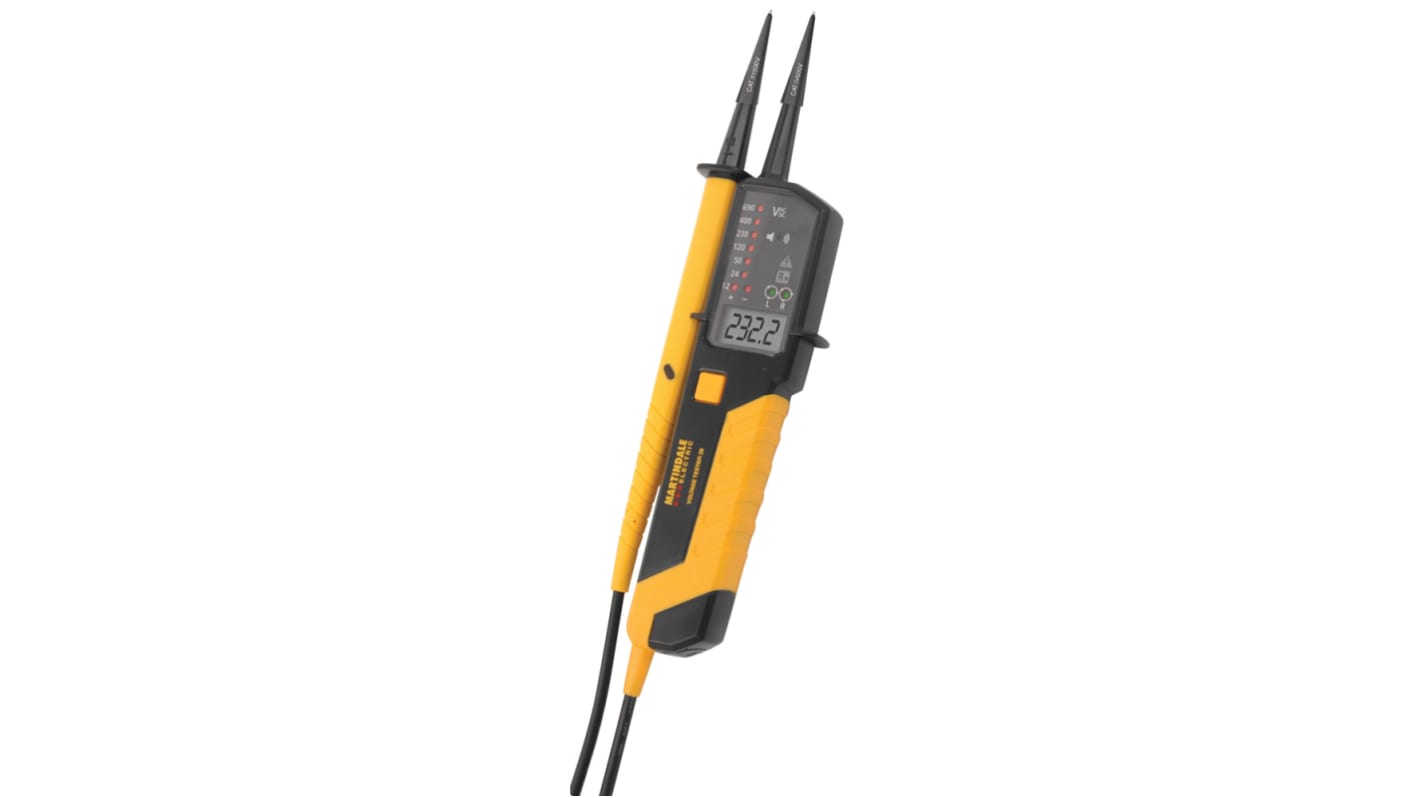

Martindale, LCD Voltage Tester, 690V Continuity Check, 1.5 V Battery Powered CAT III 600 V, CAT IV 300 V, VT28

RS Stock No.:: 865-4740
Mfr. Part No.:: VT28
Manufacturer:: Martindale

Martindale, LCD Voltage Tester, 690V Continuity Check, 1.5 V Battery Powered CAT III 600 V, CAT IV 300 V, VT28

Subtotal (1 unit)*

MYR539.17

FREE delivery for orders over RM 500.00

In Stock

11 unit(s) ready to ship from another location
Plus 7 unit(s) shipping from 06 March 2026
Plus 7 unit(s) shipping from 03 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR539.17

*price indicative

RS Stock No.:: 865-4740
Mfr. Part No.:: VT28
Manufacturer:: Martindale

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Martindale
	Product Type	Voltage Tester
	Continuity Check	Yes
	Display Type	LCD
	IP Rating	IP64
	Battery Type	AAA
	Power Source	1.5 V Battery
	Weight	130g
	Minimum Operating Temperature	-10°C
	Maximum Voltage	690V
	Maximum Operating Temperature	55°C
	Length	205mm
	Height	27mm
	Width	67 mm
	Hazardous Area Certification	No
	Standards/Approvals	No
	Safety Category Level	CAT III 600 V, CAT IV 300 V
	Safety Category Voltage	690V

	Select all
	Brand Martindale
	Product Type Voltage Tester
	Continuity Check Yes
	Display Type LCD
	IP Rating IP64
	Battery Type AAA
	Power Source 1.5 V Battery
	Weight 130g
	Minimum Operating Temperature -10°C
	Maximum Voltage 690V
	Maximum Operating Temperature 55°C
	Length 205mm
	Height 27mm
	Width 67 mm
	Hazardous Area Certification No
	Standards/Approvals No
	Safety Category Level CAT III 600 V, CAT IV 300 V
	Safety Category Voltage 690V

RoHS Status: Not Applicable

Martindale Voltage Tester

The Martindale voltage tester measures voltage ranging between 12V and 690VAC/DC. It comes with AAA batteries and an instruction manual.

Features and Benefits

LED indication

25mm x 15mm digit LCD display

Single-pole phase test ranges between 90v and 690V

Phase rotation test ranges between100V and 690V

Continuity range is500kOhm

GS38 caps are removable

Cable length is1.2m

Auto power OFF

Torch light with white LED

Power supply is 1.5V AAAx2

Dimensions: 258mm x 73mm x 23mm

CAT IV 600V, CAT III 1000V safety ratings

Operating temperature ranges between -10°C and 55°C

Applications

Electrical systems

Industrial applications

Commercial applications

Certifications

IP64 rated

EN61243-3:2010
