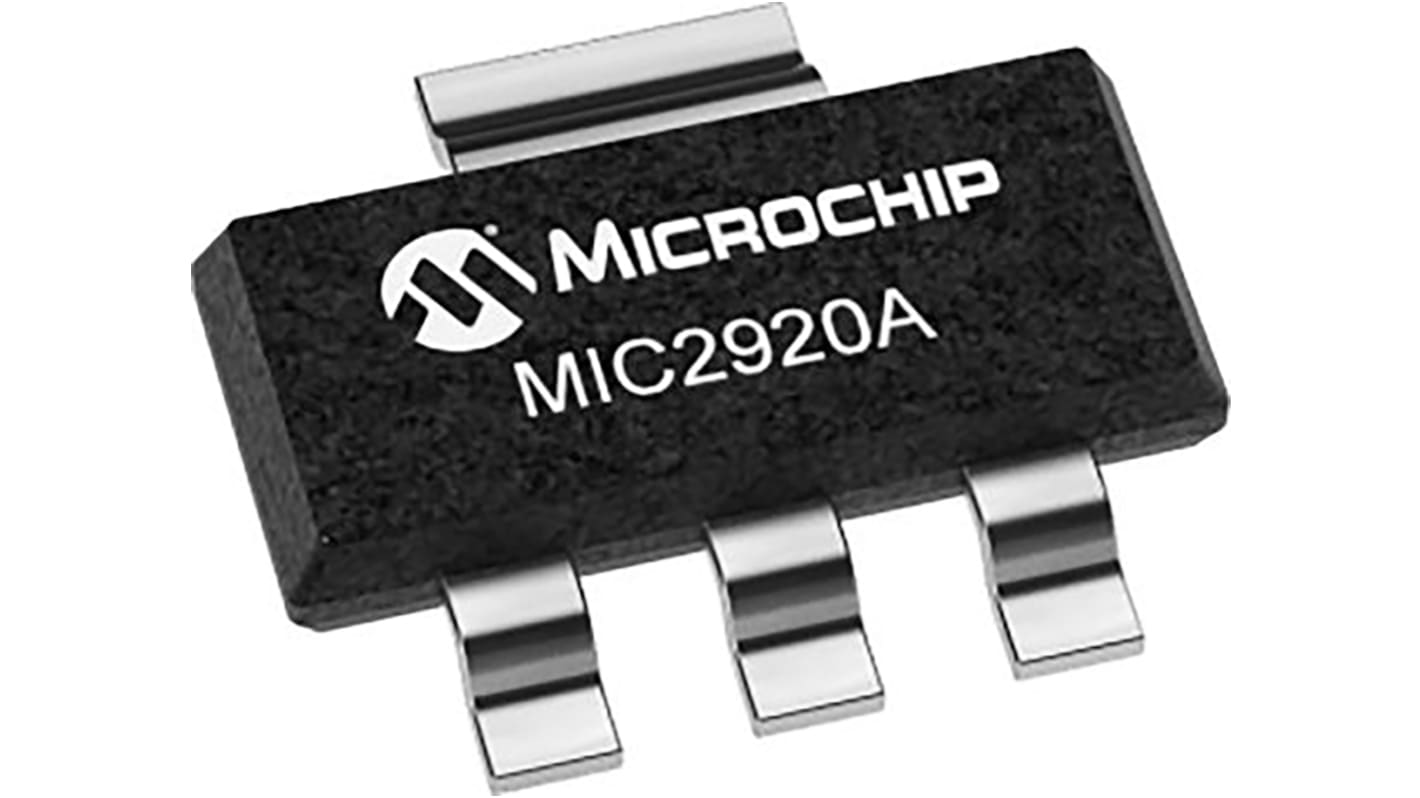

Microchip, Voltage Regulator 26V SOT-223 3-Pin

This image is representative of the product range

View all Voltage Regulators
Bulk discount available

Subtotal (1 reel of 2500 units)*

MYR14,702.50

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Reel*
2500 - 2500MYR5.881MYR14,702.50
5000 - 7500MYR5.751MYR14,377.50
10000 +MYR5.645MYR14,112.50

*price indicative

RS Stock No.:
177-2893
Mfr. Part No.:
MIC2920A-3.3WS-TR
Manufacturer:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Voltage Regulator

Package Type

SOT-223

Mount Type

Surface

Polarity

Positive

Quiescent Current

140μA

Pin Count

3

Length

6.7mm

Series

MIC2920A

Standards/Approvals

No

Height

1.7mm

Width

3.71 mm

Minimum Input Voltage

2V

Maximum Operating Temperature

125°C

Maximum Input Voltage

26V

Automotive Standard

No

COO (Country of Origin):
CN

Microchip Technology LDO Regulator


The Microchip Technology MIC2920A series bulletproof LDO regulator is a new age device with a low dropout voltage and quiescent current. The quiescent current increases slightly in dropout, prolonging battery life. It includes protection against reversed battery, folds back current limiting, and automotive load dump protection.

Features and Benefits


• Current and thermal limiting

• Error flag warns of output dropout

• Extremely tight load and line regulation

• High output voltage accuracy

• Input withstands 20V reverse battery and 60V positive transients

• Logic controlled electronic shutdown

• Maximum output current is 400mA

• Output programmable from 1.24V to 26V

• Output voltage is 3.3V

• Pin count is 3

• Very low temperature coefficient

Applications


• Automotive electronics

• Bar code scanners

• Battery powered equipment

• Cellular telephones

• High efficiency linear power supplies

• Laptop, notebook, and palmtop computers

• PCMCIA VCC and VPP regulation/switching

• SMPS post regulators

• Voltage reference

• High-efficiency linear power supplies
