Microchip USB2641I-HZH-02, Controller IC, 3.6 V, USB 2.0, 3 V, 48-Pin QFN

RS Stock No.:: 264-8939
Mfr. Part No.:: USB2641I-HZH-02
Manufacturer:: Microchip

Microchip USB2641I-HZH-02, Controller IC, 3.6 V, USB 2.0, 3 V, 48-Pin QFN

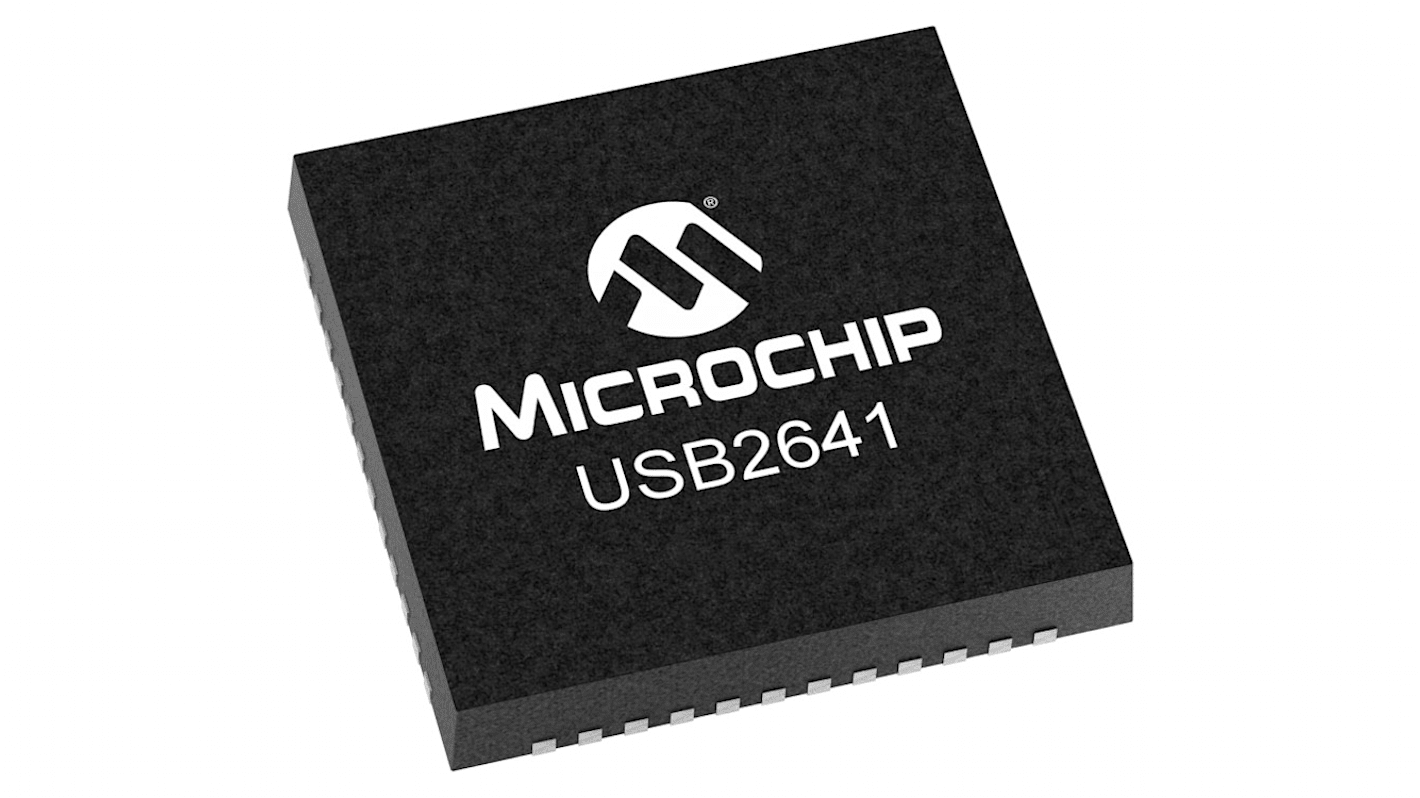

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

MYR27.46

FREE delivery for orders over RM 500.00

In Stock

198 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 9	MYR27.46
10 - 24	MYR26.94
25 - 49	MYR22.83
50 - 99	MYR22.35
100 +	MYR21.93

*price indicative

RS Stock No.:: 264-8939
Mfr. Part No.:: USB2641I-HZH-02
Manufacturer:: Microchip

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Microchip
	Product Type	Controller IC
	USB Specification	USB 2.0
	Power Supply Type	Single
	Minimum Supply Voltage	3V
	Maximum Supply Voltage	3.6V
	Package Type	QFN
	Pin Count	48
	Minimum Operating Temperature	-40°C
	Supported Protocols	USB 2.0
	Maximum Operating Temperature	85°C
	Series	USB2641I
	Standards/Approvals	RoHS
	Supply Current	65mA
	Automotive Standard	No

	Select all
	Brand Microchip
	Product Type Controller IC
	USB Specification USB 2.0
	Power Supply Type Single
	Minimum Supply Voltage 3V
	Maximum Supply Voltage 3.6V
	Package Type QFN
	Pin Count 48
	Minimum Operating Temperature -40°C
	Supported Protocols USB 2.0
	Maximum Operating Temperature 85°C
	Series USB2641I
	Standards/Approvals RoHS
	Supply Current 65mA
	Automotive Standard No

Datasheet - USB2641I-HZH-02

The Microchip USB flash media controller combines an ultra-fast interface between a USB host and today's most popular flash media cards with a versatile, cost-effective and power-efficient 2-port Hi-Speed USB 2.0 hub controller. It is designed for applications that demand low power, small footprint and reduced BOM without compromising performance or features. Offering a high level of USB 2.0 compliance and interoperability, it allows system designers the flexibility of independent access to a wide selection of flash media readers and also provides additional downstream USB access ports. The transaction translator (TT) in the hub supports operation of Full-Speed and Low-Speed peripherals.

9 K RAM & 64 K on-chip ROM

Enhanced EMI rejection and ESD protection performance

On board 24 MHz crystal driver circuit

Optional external 24 MHz clock input

8051 8-bit microprocessor

EEPROM update via USB

48-pin QFN RoHS compliant package (7 x 7 mm)

Supports the industrial temperature range of -40°C to 85°C
