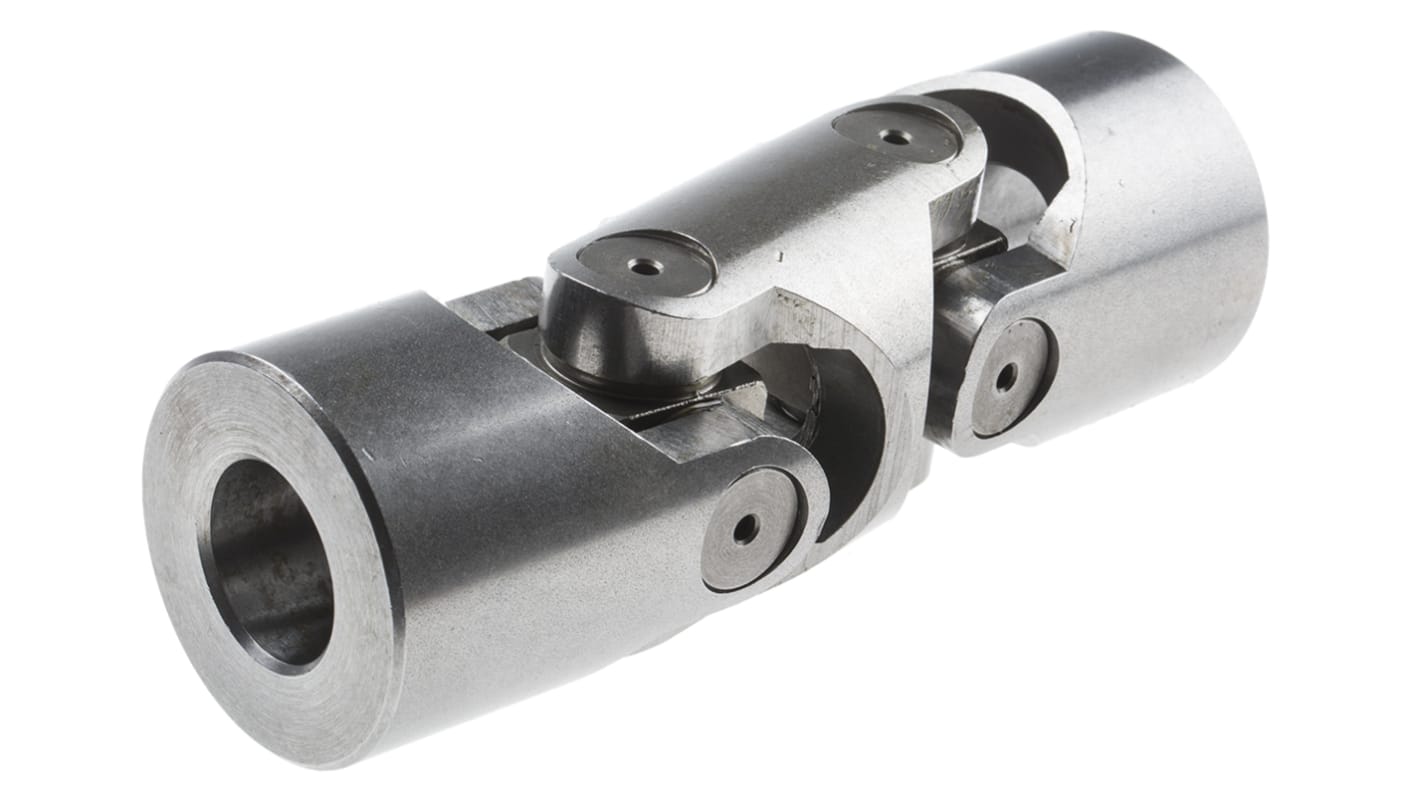

RS PRO Universal Joint, Double, Plain, Bore 22mm, 145mm Length
- RS Stock No.:
- 790-6775
- Manufacturer:
- RS PRO
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR693.24
| Units | Per Unit |
| 1 - 5 | MYR693.24 |
| 6 - 29 | MYR678.70 |
| 30 + | MYR558.57 |
- RS Stock No.:
- 790-6775
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Double Universal Joint with Plain Bearing
Carbon steel universal joints for connecting equipment where there is a misalignment greater than 5 degrees up to an angle of 90 degrees. These universal joints are constructed using wear resistant sliding bushes, suitable for applications with speeds of up to 1000 rpm. Smooth and silent operation, suitable applications include connection of conveyers, line shafts and drive shafts. Gaiters and regular lubrication are recommended to ensure longevity in service.
Specifications
Attribute | Value |
|---|---|
| Bore | 22mm |
| Number of Joints | Double |
| Hub Outer Diameter | 45mm |
| Overall Length | 145mm |
| Joint Type | Plain |
| Hub Type | Bored Hub |
| Maximum Working Angle | 90° |
| Peak Torque | 600Nm |
| Material | Steel |
| Maximum Speed | 1000rpm |
