RS PRO MPOS Series Data Cable, 1 Pairs, 0.56 mm², 100 m, Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 812-4763
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 100 metres)*
MYR651.47
FREE delivery for orders over RM 500.00
In Stock
- 156 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 03 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | MYR651.47 | MYR6.515 |
| 5 + | MYR536.16 | MYR5.362 |
*price indicative
Sponsored
- RS Stock No.:
- 812-4763
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Pairs | 1 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.56mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 5.2mm | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -15°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | Euroclass Eca | |
| Series | MPOS | |
| Voltage | 300V | |
| Conductor Material | Tin Copper Wire | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Pairs 1 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.56mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 5.2mm | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -15°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals Euroclass Eca | ||
Series MPOS | ||
Voltage 300V | ||
Conductor Material Tin Copper Wire | ||
Core Strands 7 | ||
- COO (Country of Origin):
- CN

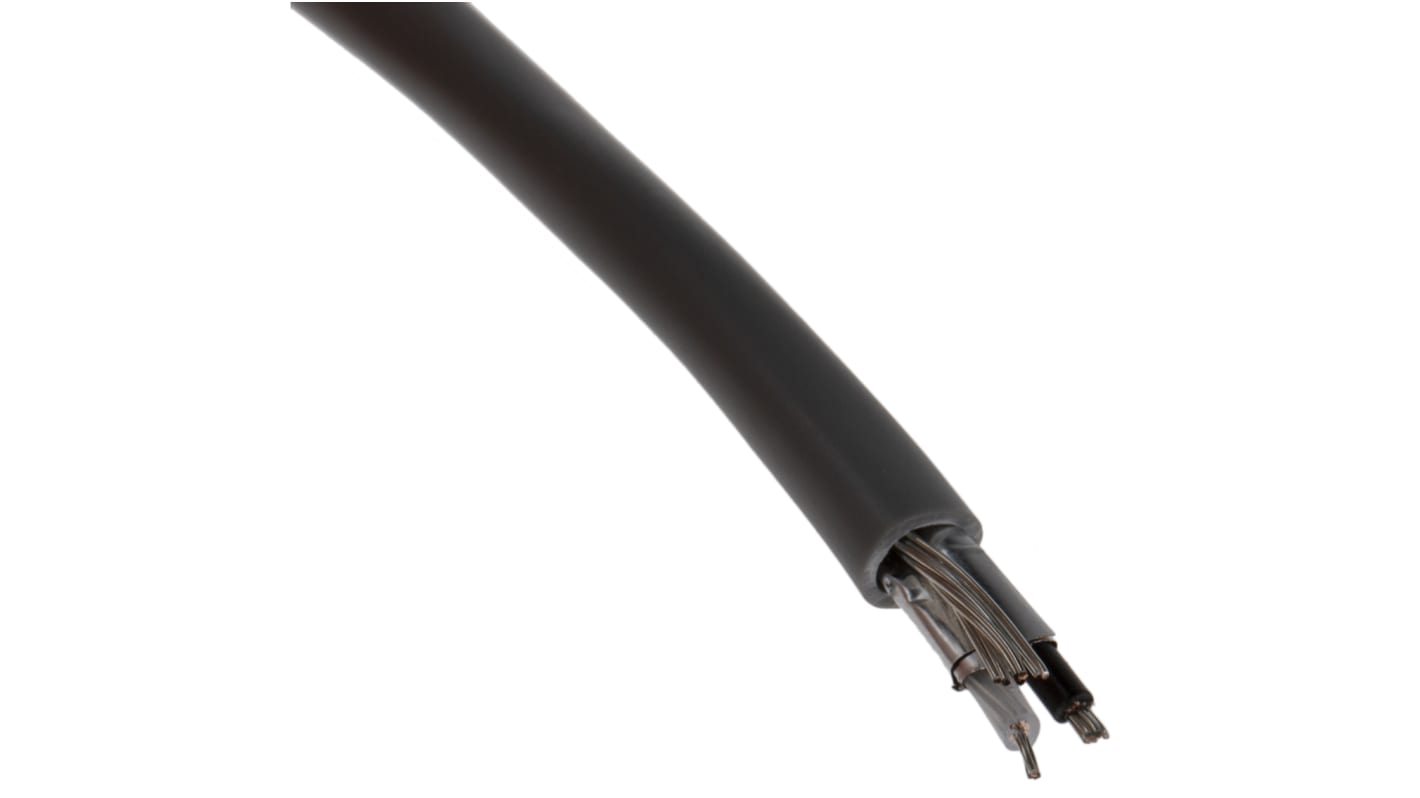

RS PRO 1 Pair Aluminium Foil-PET Tape Multipair Data Cable 0.56 mm² (Euroclass Eca) Grey 100m
Multipair cables contain multiple conductors in a single jacket, enabling high-speed data transmission with little to no external interference. This multipair data cable from the trusted RS PRO range features two conductors twisted into a single circuit. Cables like these are well suited for data processing, information systems and telecommunications environments.
Shielded with aluminium foil tape and grounded with a tinned-copper drain wire, this cable is protected against electrical interference and reduces signal distortion at high-processing speeds. This additional screening ensures improved performance over higher data rates and makes the cable an effective choice for industrial use.
Covered with a grey PVC sheath, this multipair cable is robust and has high tensile strength. It comes in a length of 100 metres and is a cost-effective option that's simple to install in both homes and businesses.
Features and Benefits
• Multicore cable
• Cross sectional area of 0.56 mm²
• 20 AWG (American wire gauge)
• Screened by aluminium foil-PET tape
• PVC sheath
• Cable length of 100 m
• Stringently tested to RoHS (Restriction of Hazardous Substances) and Euroclass Eca standards
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Overall Screened Single Pair
A single twisted pair cable with tinned copper conductors insulated with polyethylene, wrapped in an aluminised tape with a tinned drain wire (same size as conductor) and a PVC outer sheath, UL style 2092.
Applications
Internal wiring;Electronic equipment
RS Industrial Cable
Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
Warning
These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.
