RS PRO Data Cable 1 Pairs 2 Cores 0.51 mm² 500 m Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 812-4674
- Manufacturer:
- RS PRO

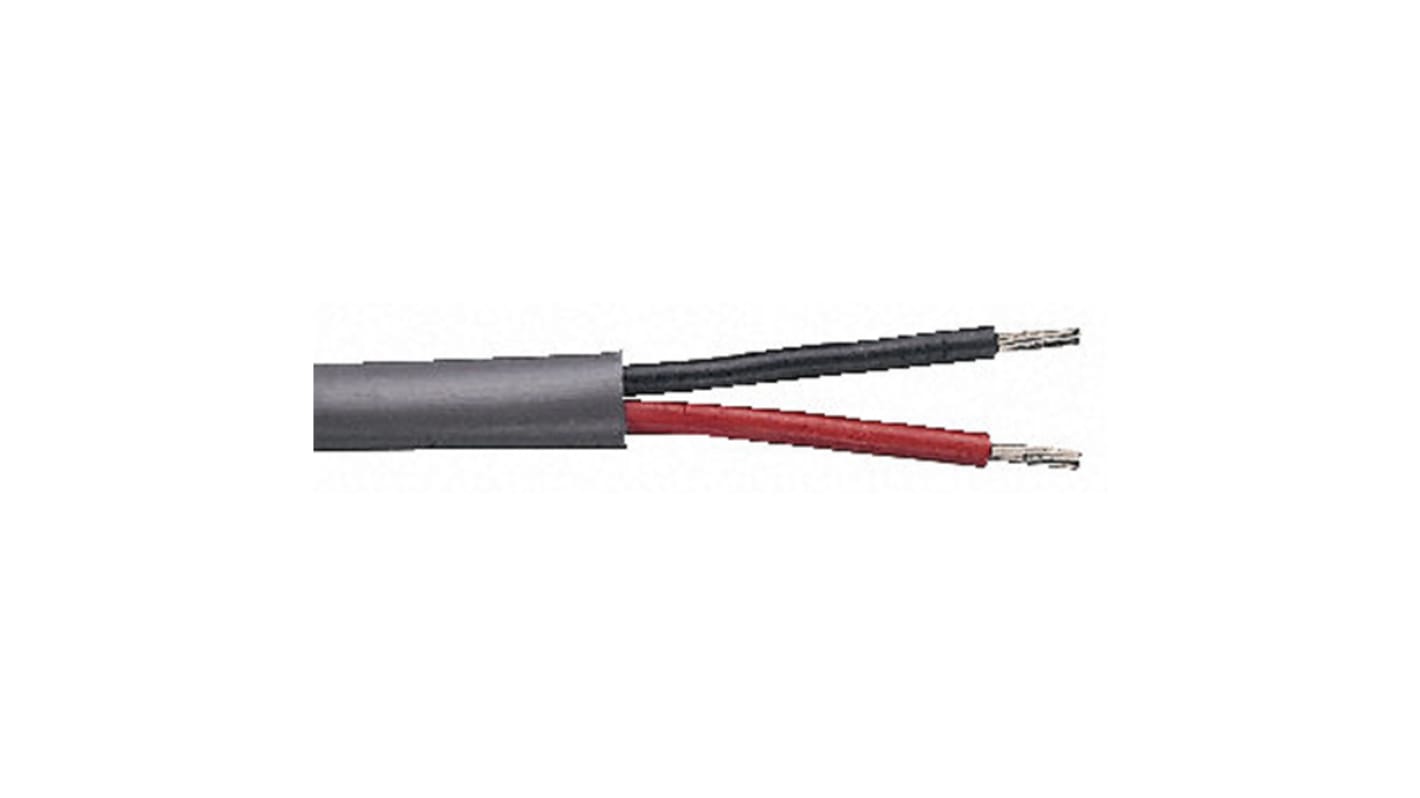

This image is representative of the product range
Subtotal (1 reel of 500 metres)*
MYR1,596.35
FREE delivery for orders over RM 150.00
In Stock
- 22 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 11 January 2027
- Plus 10 unit(s) shipping from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR1,596.35 | MYR3.193 |
*price indicative
- RS Stock No.:
- 812-4674
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Pairs | 1 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.51mm² | |
| Number of Cores | 2 | |
| Cable Length | 500m | |
| Jacket Colour | Grey | |
| Outside Diameter | 5.1mm | |
| Minimum Operating Temperature | -20°C | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Euroclass Eca | |
| Number of Strands | 10 | |
| Core Strands | 10 x 254 μm | |
| Size of Strands | 254μm | |
| Series | RS PRO | |
| Fire Behaviour | Flame Retardant | |
| Conductor Material | Tin Copper Wire | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Pairs 1 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.51mm² | ||
Number of Cores 2 | ||
Cable Length 500m | ||
Jacket Colour Grey | ||
Outside Diameter 5.1mm | ||
Minimum Operating Temperature -20°C | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Euroclass Eca | ||
Number of Strands 10 | ||
Core Strands 10 x 254 μm | ||
Size of Strands 254μm | ||
Series RS PRO | ||
Fire Behaviour Flame Retardant | ||
Conductor Material Tin Copper Wire | ||
- COO (Country of Origin):
- CN
Non-screened Single Pair 20AWG
A pair of 10//0.254 mm (20 a.w.g.) tinned copper conductors, insulated with PVC, twisted together and covered in a PVC grey outer sheath.
RS Industrial Cable
Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
Warning
These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.
