Wurth Elektronik 824551281, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB

RS Stock No.:: 921-7074
Mfr. Part No.:: 824551281
Manufacturer:: Wurth Elektronik

Wurth Elektronik 824551281, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB

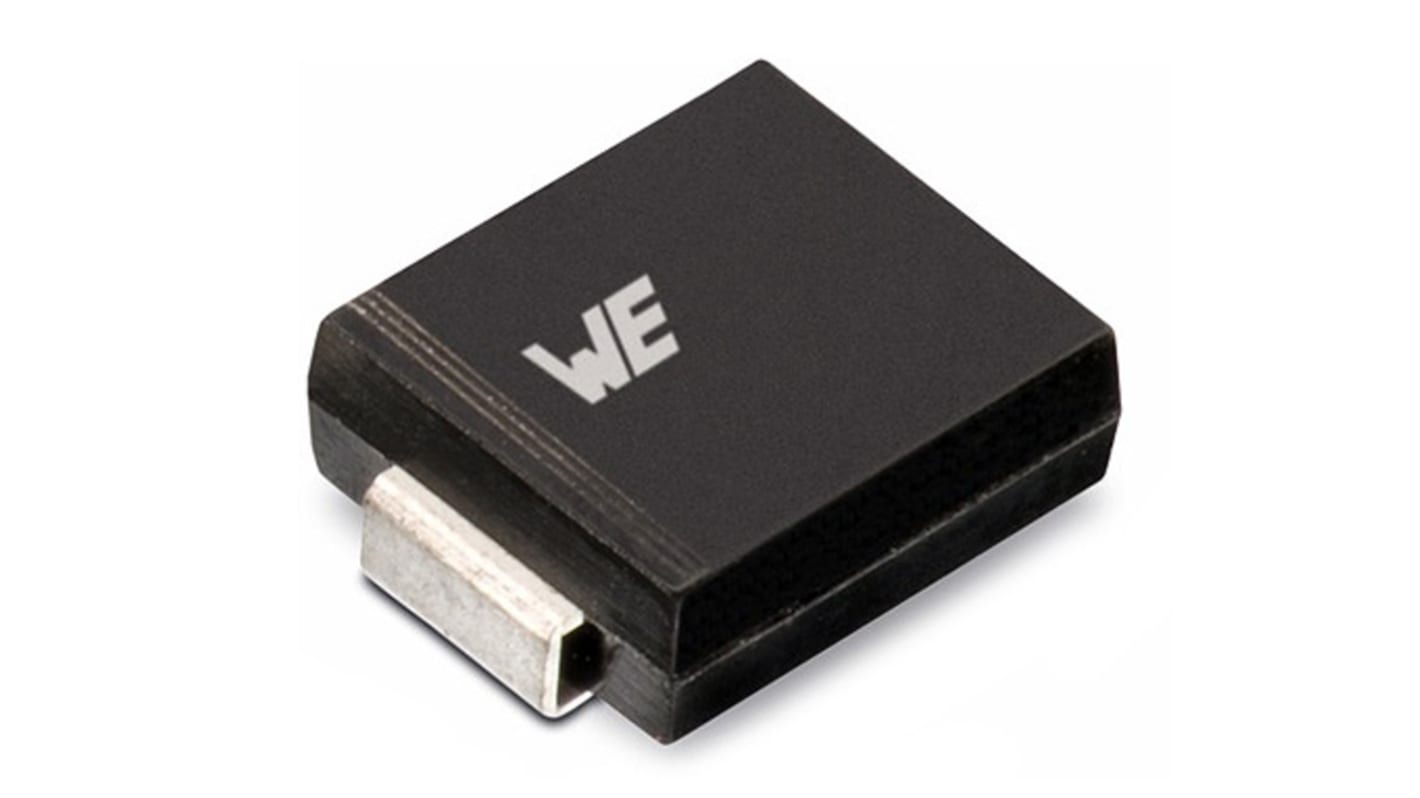

This image is representative of the product range

Available for back order.

Price Each (In a Pack of 10)

MYR7.429

Units	Per Unit	Per Pack*
10 - 120	MYR7.429	MYR74.29
130 - 240	MYR7.059	MYR70.59
250 +	MYR6.706	MYR67.06

*price indicative

RS Stock No.:: 921-7074
Mfr. Part No.:: 824551281
Manufacturer:: Wurth Elektronik

TVS Diode Bidirectional 3000W Datasheet
ESD Control Selection Guide V1
WE eiSos Embedded Flyer

Attribute	Value
Direction Type	Bi-Directional
Diode Configuration	Single
Maximum Clamping Voltage	45.4V
Minimum Breakdown Voltage	32.75V
Mounting Type	Surface Mount
Package Type	DO-214AB (SMC)
Pin Count	2
Peak Pulse Power Dissipation	3000W
Maximum Peak Pulse Current	66.1A
Number of Elements per Chip	1
Minimum Operating Temperature	-65 °C
Maximum Operating Temperature	+150 °C
Dimensions	6.86 x 5.9 x 2.34mm
Width	5.9mm
Height	2.34mm
Length	6.86mm
Test Current	1mA
Maximum Reverse Leakage Current	2µA

Wurth Elektronik 824551281, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB

Bidirectional TVS Diodes, 3000W, Wurth Elektronik
