Units	Per Unit	Per Pack**
10 - 120	MYR6.938	MYR69.38
130 - 240	MYR6.592	MYR65.92
250 +	MYR6.262	MYR62.62

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Diode Configuration	Single
	Direction Type	Bi-Directional
	Maximum Clamping Voltage	42.1V
	Minimum Breakdown Voltage	30.4V
	Mounting Type	Surface Mount
	Package Type	DO-214AB (SMC)
	Pin Count	2
	Peak Pulse Power Dissipation	3000W
	Maximum Peak Pulse Current	71.3A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Dimensions	6.86 x 5.9 x 2.34mm
	Maximum Operating Temperature	+150 °C
	Length	6.86mm
	Maximum Reverse Leakage Current	2µA
	Height	2.34mm
	Width	5.9mm
	Test Current	1mA

	Select all
	Brand Wurth Elektronik
	Diode Configuration Single
	Direction Type Bi-Directional
	Maximum Clamping Voltage 42.1V
	Minimum Breakdown Voltage 30.4V
	Mounting Type Surface Mount
	Package Type DO-214AB (SMC)
	Pin Count 2
	Peak Pulse Power Dissipation 3000W
	Maximum Peak Pulse Current 71.3A
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Dimensions 6.86 x 5.9 x 2.34mm
	Maximum Operating Temperature +150 °C
	Length 6.86mm
	Maximum Reverse Leakage Current 2µA
	Height 2.34mm
	Width 5.9mm
	Test Current 1mA

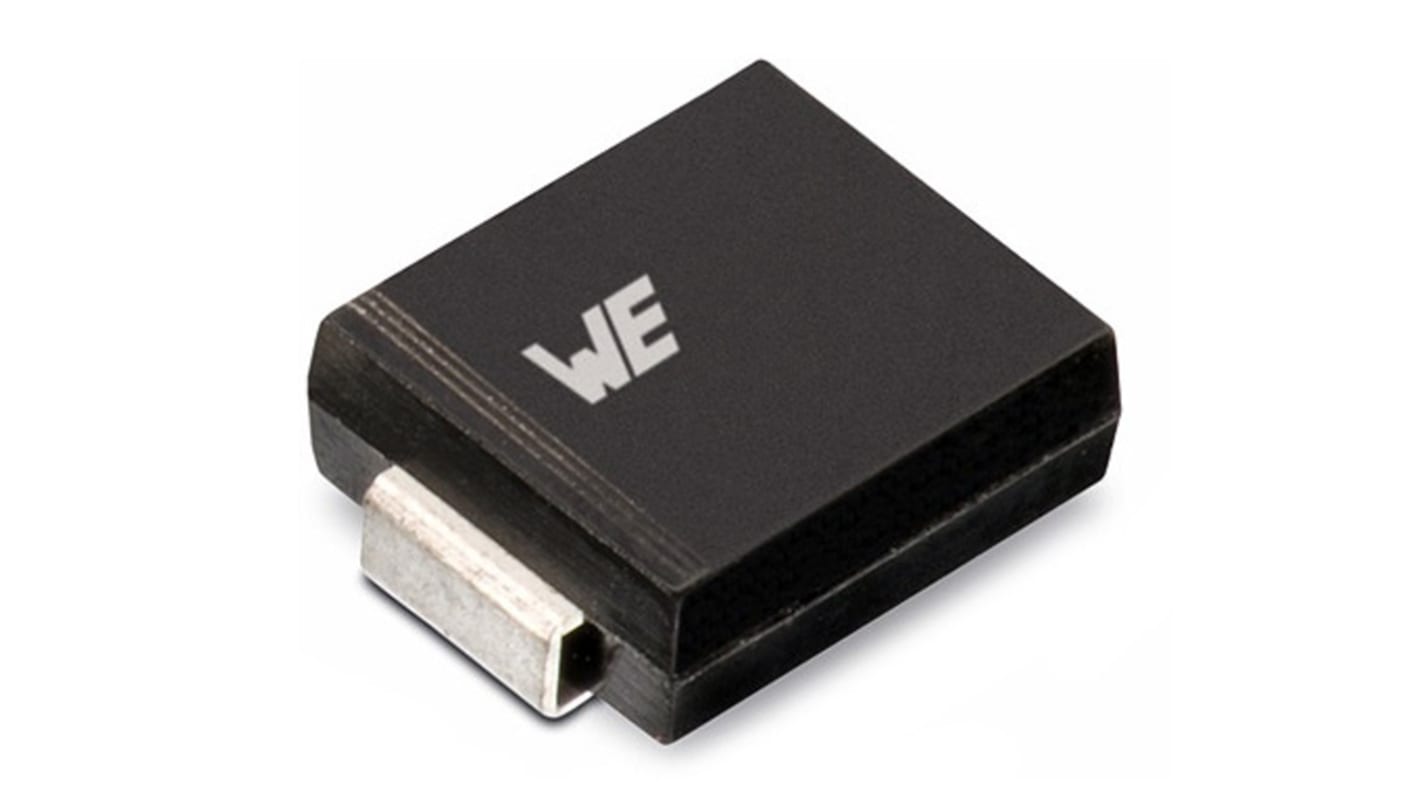

Wurth Elektronik 824551261, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB

FREE delivery for orders over MYR500.00

Bidirectional TVS Diodes, 3000W, Wurth Elektronik

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
