Units	Per Unit	Per Reel**
3000 - 3000	MYR1.539	MYR4,617.00
6000 - 9000	MYR1.505	MYR4,515.00
12000 +	MYR1.477	MYR4,431.00

Select all	Attribute	Value
	Brand	onsemi
	Direction Type	Uni-Directional
	Diode Configuration	Array
	Maximum Clamping Voltage	8.1V
	Minimum Breakdown Voltage	5.5V
	Mounting Type	Surface Mount
	Package Type	UDFN
	Pin Count	14
	Maximum Peak Pulse Current	16A
	ESD Protection	Yes
	Number of Elements per Chip	8
	Minimum Operating Temperature	-55 °C
	Dimensions	5.5 x 1.5 x 0.5mm
	Maximum Operating Temperature	+125 °C
	Maximum Reverse Leakage Current	500nA
	Working Voltage	3.3V
	Capacitance	0.35pF
	Test Current	1mA
	Width	1.5mm
	Height	0.5mm
	Automotive Standard	AEC-Q101
	Length	5.5mm

	Select all
	Brand onsemi
	Direction Type Uni-Directional
	Diode Configuration Array
	Maximum Clamping Voltage 8.1V
	Minimum Breakdown Voltage 5.5V
	Mounting Type Surface Mount
	Package Type UDFN
	Pin Count 14
	Maximum Peak Pulse Current 16A
	ESD Protection Yes
	Number of Elements per Chip 8
	Minimum Operating Temperature -55 °C
	Dimensions 5.5 x 1.5 x 0.5mm
	Maximum Operating Temperature +125 °C
	Maximum Reverse Leakage Current 500nA
	Working Voltage 3.3V
	Capacitance 0.35pF
	Test Current 1mA
	Width 1.5mm
	Height 0.5mm
	Automotive Standard AEC-Q101
	Length 5.5mm

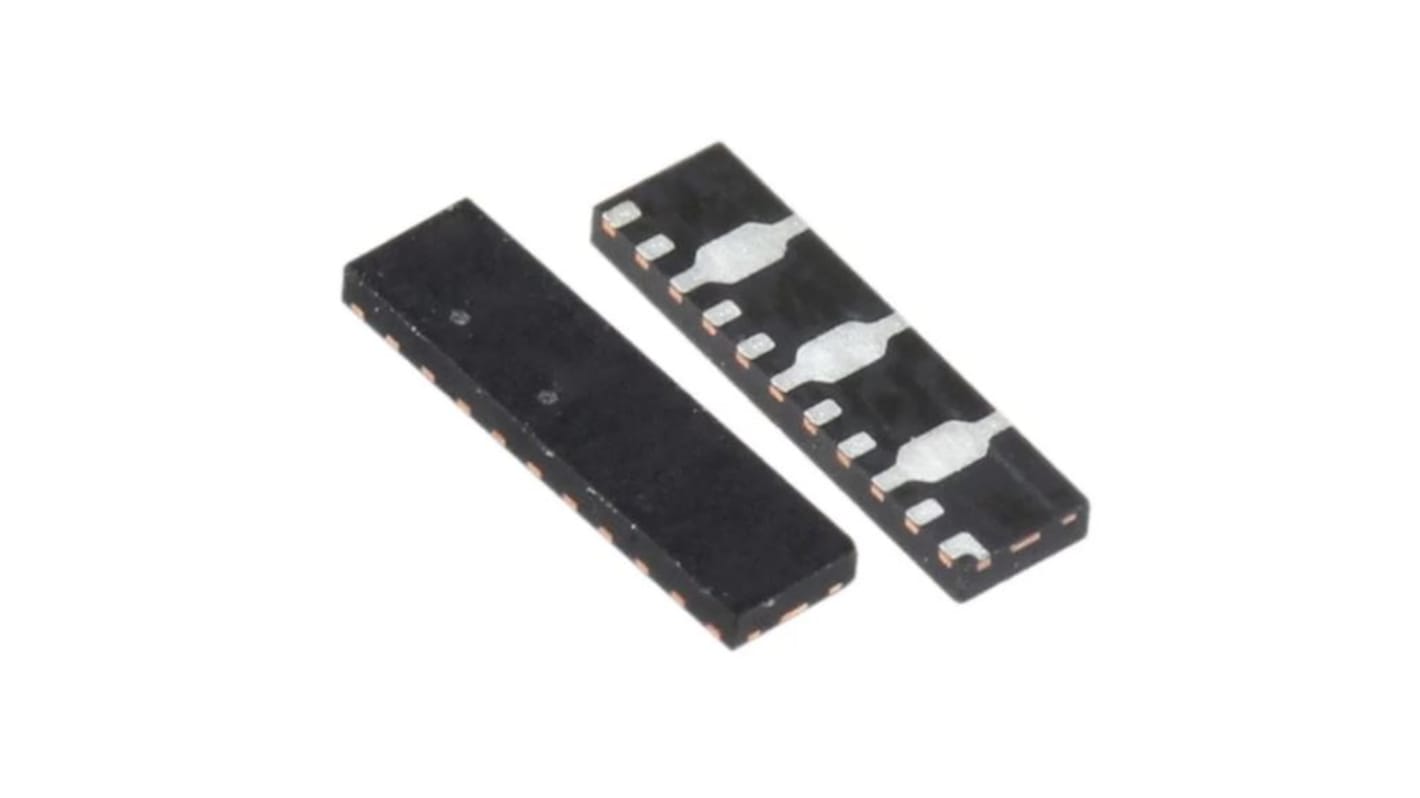

onsemi ESD8008MUTAG, Octal-Element Uni-Directional ESD Protection Array, 14-Pin UDFN

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
