Units	Per Unit	Per Pack**
10 - 40	MYR2.038	MYR20.38
50 - 90	MYR1.965	MYR19.65
100 - 490	MYR1.867	MYR18.67
500 - 990	MYR1.774	MYR17.74
1000 +	MYR1.686	MYR16.86

Select all	Attribute	Value
	Brand	Littelfuse
	Diode Configuration	Single
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	45.4V
	Minimum Breakdown Voltage	31.1V
	Mounting Type	Surface Mount
	Package Type	DO-214AB (SMC)
	Maximum Reverse Stand-off Voltage	28V
	Pin Count	2
	Peak Pulse Power Dissipation	1500W
	Maximum Peak Pulse Current	33.1A
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Dimensions	7.11 x 6.22 x 2.41mm
	Maximum Operating Temperature	+150 °C
	Height	2.41mm
	Maximum Reverse Leakage Current	1µA
	Width	6.22mm
	Test Current	1mA
	ESD Voltage	30kV
	Surge Current Rating	200A
	Length	7.11mm

	Select all
	Brand Littelfuse
	Diode Configuration Single
	Direction Type Uni-Directional
	Maximum Clamping Voltage 45.4V
	Minimum Breakdown Voltage 31.1V
	Mounting Type Surface Mount
	Package Type DO-214AB (SMC)
	Maximum Reverse Stand-off Voltage 28V
	Pin Count 2
	Peak Pulse Power Dissipation 1500W
	Maximum Peak Pulse Current 33.1A
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Dimensions 7.11 x 6.22 x 2.41mm
	Maximum Operating Temperature +150 °C
	Height 2.41mm
	Maximum Reverse Leakage Current 1µA
	Width 6.22mm
	Test Current 1mA
	ESD Voltage 30kV
	Surge Current Rating 200A
	Length 7.11mm

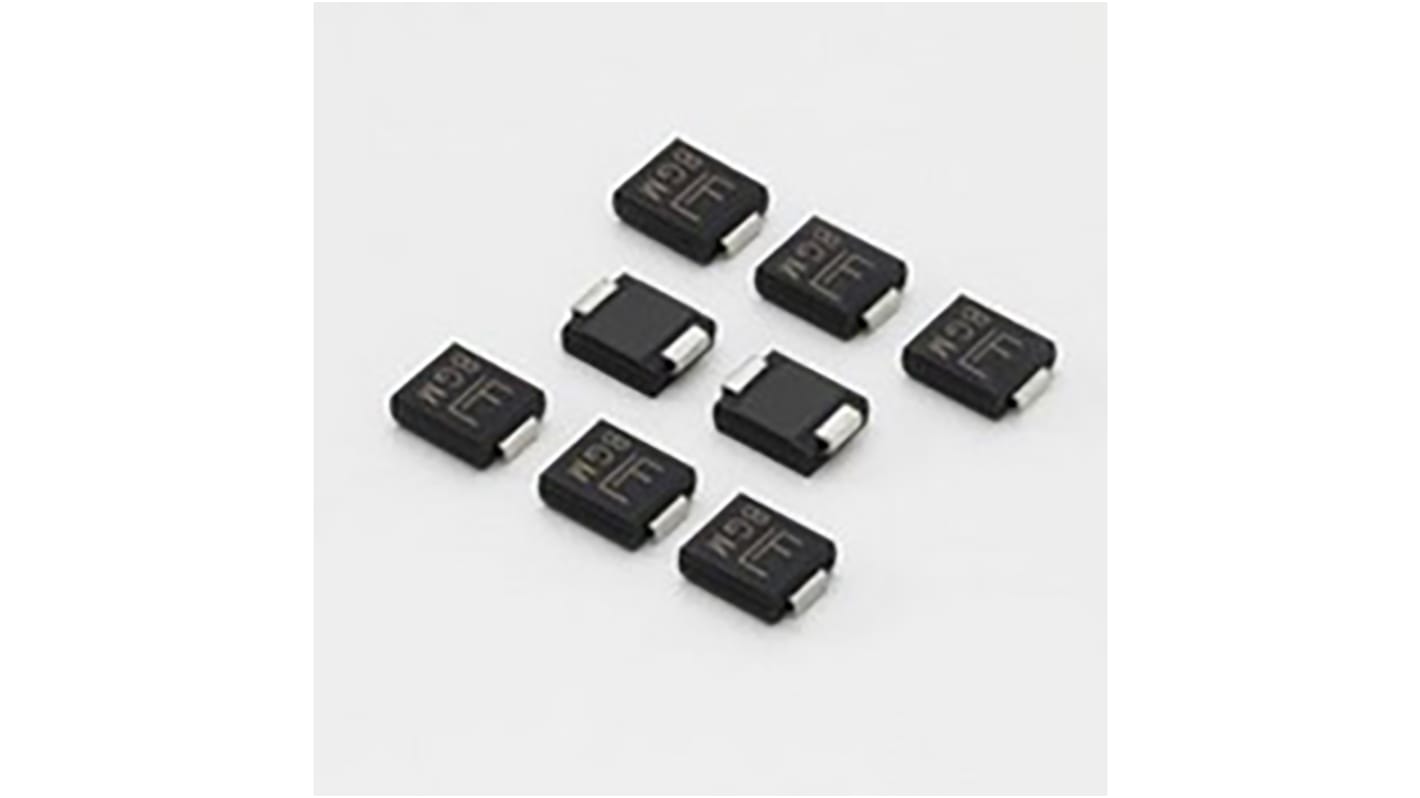

Littelfuse SMCJ28A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
