Select all	Attribute	Value
	Brand	Littelfuse
	Direction Type	Uni-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	324V
	Minimum Breakdown Voltage	224V
	Mounting Type	Surface Mount
	Package Type	DO-214AB (SMC)
	Maximum Reverse Stand-off Voltage	200V
	Pin Count	2
	Peak Pulse Power Dissipation	1500W
	Maximum Peak Pulse Current	4.6A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	7.11 x 6.22 x 2.417mm
	Length	7.11mm
	Maximum Reverse Leakage Current	1µA
	Width	6.22mm
	Test Current	1mA
	Height	2.417mm

	Select all
	Brand Littelfuse
	Direction Type Uni-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 324V
	Minimum Breakdown Voltage 224V
	Mounting Type Surface Mount
	Package Type DO-214AB (SMC)
	Maximum Reverse Stand-off Voltage 200V
	Pin Count 2
	Peak Pulse Power Dissipation 1500W
	Maximum Peak Pulse Current 4.6A
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Maximum Operating Temperature +150 °C
	Dimensions 7.11 x 6.22 x 2.417mm
	Length 7.11mm
	Maximum Reverse Leakage Current 1µA
	Width 6.22mm
	Test Current 1mA
	Height 2.417mm

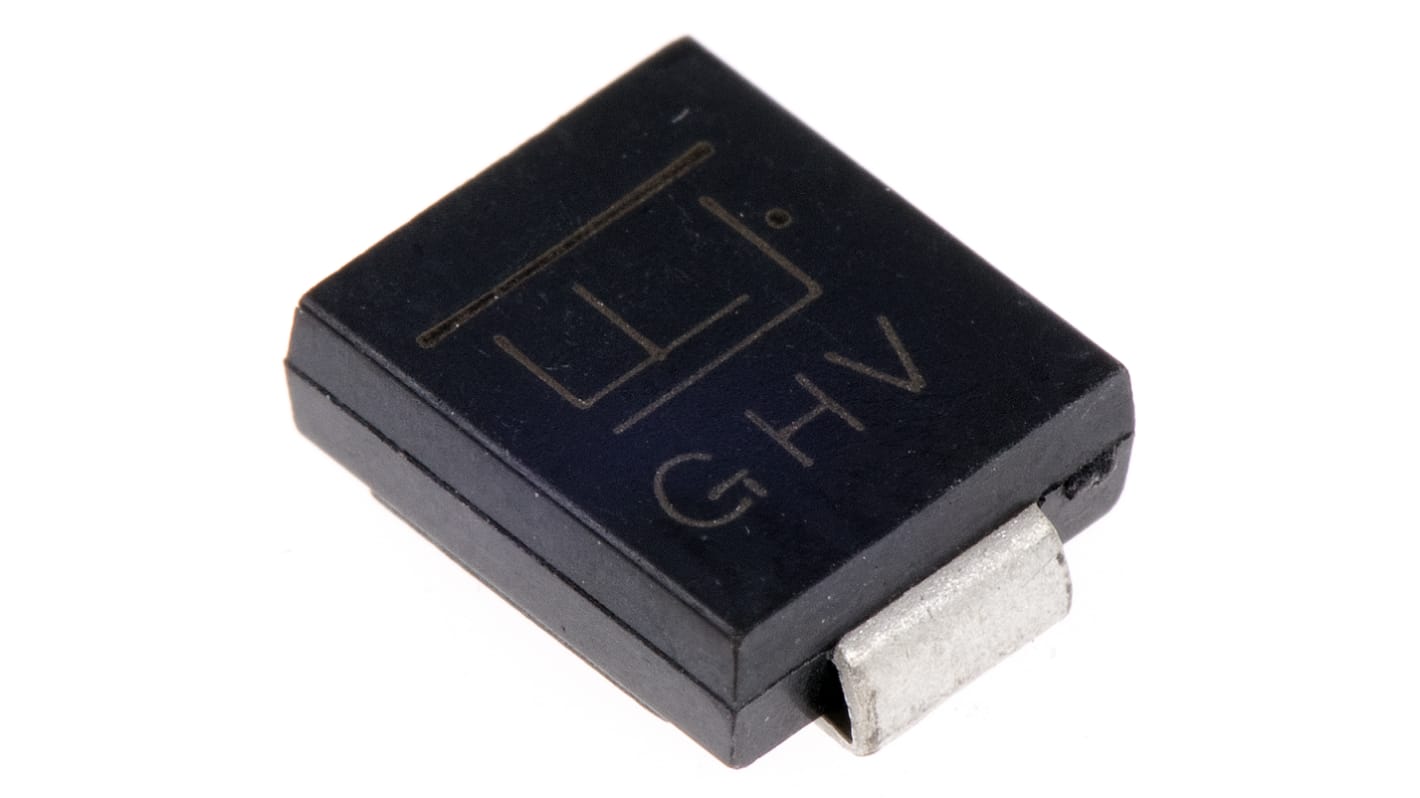

Littelfuse SMCJ200A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB

FREE delivery for orders over MYR500.00

TVS Diodes SMT Unidirectional 1500W, SMCJ Series, Littelfuse

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
