Select all	Attribute	Value
	Brand	Bourns
	Direction Type	Bi-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	48.4V
	Minimum Breakdown Voltage	33.3V
	Mounting Type	Surface Mount
	Package Type	DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage	30V
	Pin Count	2
	Peak Pulse Power Dissipation	400W
	Maximum Peak Pulse Current	8.3A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Dimensions	4.5 x 2.79 x 2.084mm
	Maximum Operating Temperature	+150 °C
	Height	2.087mm
	Maximum Reverse Leakage Current	1µA
	Width	2.79mm
	Test Current	1mA
	Length	4.5mm

	Select all
	Brand Bourns
	Direction Type Bi-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 48.4V
	Minimum Breakdown Voltage 33.3V
	Mounting Type Surface Mount
	Package Type DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage 30V
	Pin Count 2
	Peak Pulse Power Dissipation 400W
	Maximum Peak Pulse Current 8.3A
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Dimensions 4.5 x 2.79 x 2.084mm
	Maximum Operating Temperature +150 °C
	Height 2.087mm
	Maximum Reverse Leakage Current 1µA
	Width 2.79mm
	Test Current 1mA
	Length 4.5mm

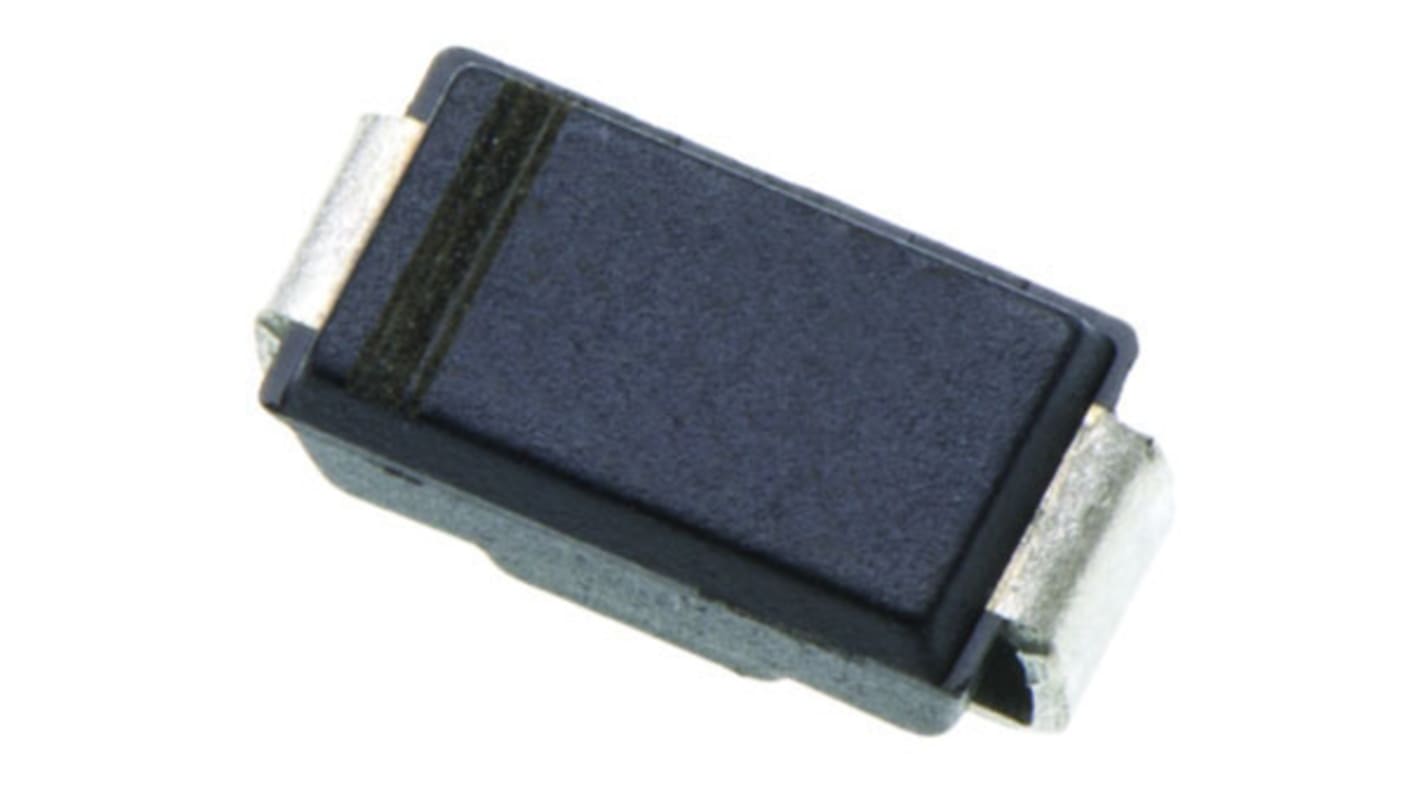

Bourns SMAJ30CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

FREE delivery for orders over MYR500.00

SMBJ Series 400W TVS Diodes, Bidirectional
