Texas Instruments, I2C Translator Voltage Level Translator 2 Voltage Level, 8-Pin VSSOP
- RS Stock No.:
- 922-2802
- Mfr. Part No.:
- PCA9306DCUR
- Manufacturer:
- Texas Instruments

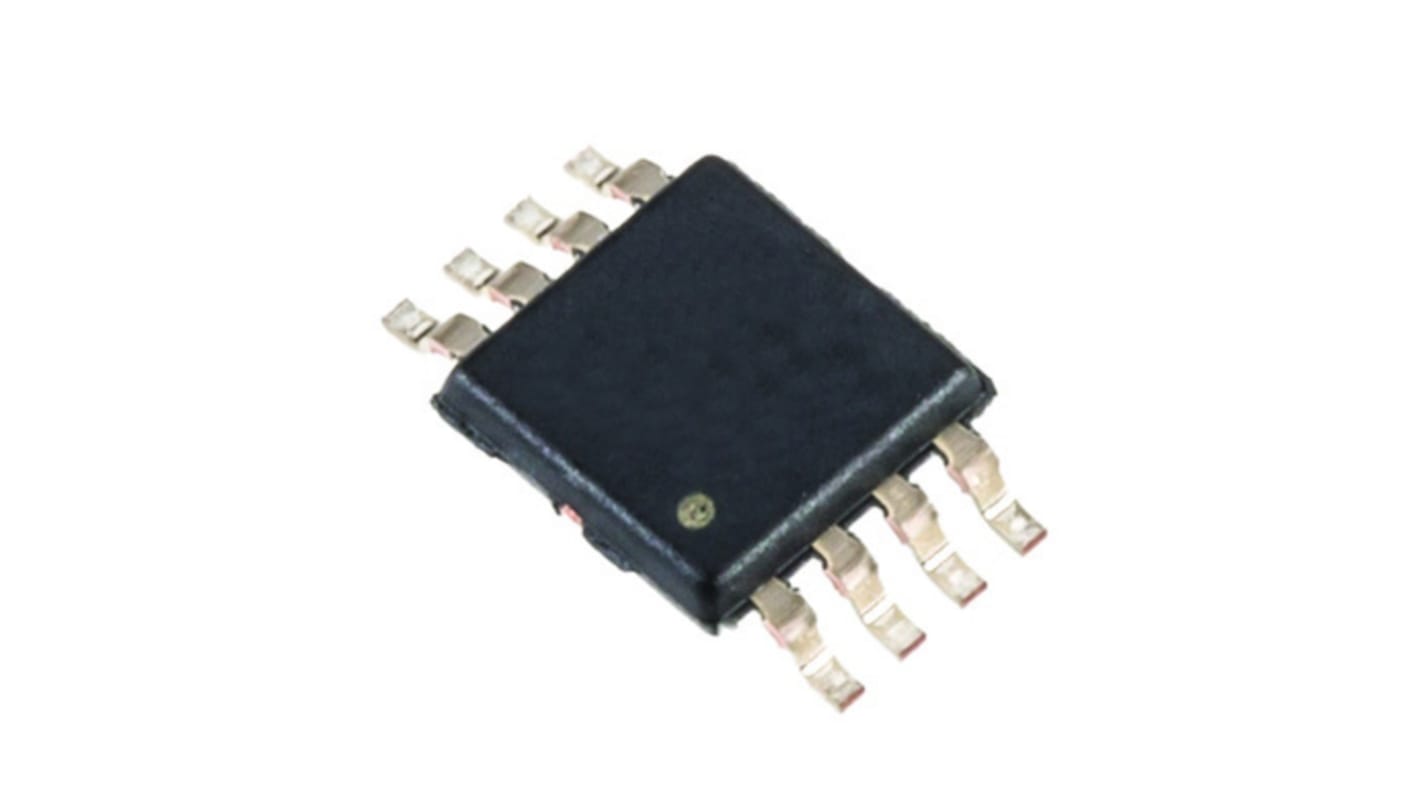

This image is representative of the product range
Subtotal (1 reel of 3000 units)*
MYR5,874.00
FREE delivery for orders over RM 500.00
In Stock
- 6,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 3000 + | MYR1.958 | MYR5,874.00 |
*price indicative
- RS Stock No.:
- 922-2802
- Mfr. Part No.:
- PCA9306DCUR
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | I2C | |
| Direction Type | Bi-Directional | |
| Product Type | I2C Translator | |
| Maximum Propagation Delay Time @ CL | 1.5ns | |
| Mount Type | Surface | |
| Number of Elements per Chip | 2 | |
| Package Type | VSSOP | |
| Output Type | 3 State | |
| Pin Count | 8 | |
| Logic Function | Voltage Level Translator | |
| Minimum Supply Voltage | 0V | |
| Maximum High Level Output Current | 128mA | |
| Translation | Voltage Level | |
| Maximum Supply Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | PCA9306 | |
| Standards/Approvals | No | |
| Length | 3.2mm | |
| Height | 0.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family I2C | ||
Direction Type Bi-Directional | ||
Product Type I2C Translator | ||
Maximum Propagation Delay Time @ CL 1.5ns | ||
Mount Type Surface | ||
Number of Elements per Chip 2 | ||
Package Type VSSOP | ||
Output Type 3 State | ||
Pin Count 8 | ||
Logic Function Voltage Level Translator | ||
Minimum Supply Voltage 0V | ||
Maximum High Level Output Current 128mA | ||
Translation Voltage Level | ||
Maximum Supply Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series PCA9306 | ||
Standards/Approvals No | ||
Length 3.2mm | ||
Height 0.9mm | ||
Automotive Standard No | ||
I²C/SMBus Voltage-Level Translator, Texas Instruments
I²C Bus
I²C, pronounced I-squared-C, stands for Inter-Integrated Circuit. This two-wire interface is a multi-master, multi-slave, single-ended, serial computer bus. SMBus is a subset of I²C.
