Texas Instruments, Voltage Level Shifter Voltage Level Translator 2 Voltage Level, 8-Pin VSSOP
- RS Stock No.:
- 921-5100
- Mfr. Part No.:
- TXB0102DCUT
- Manufacturer:
- Texas Instruments

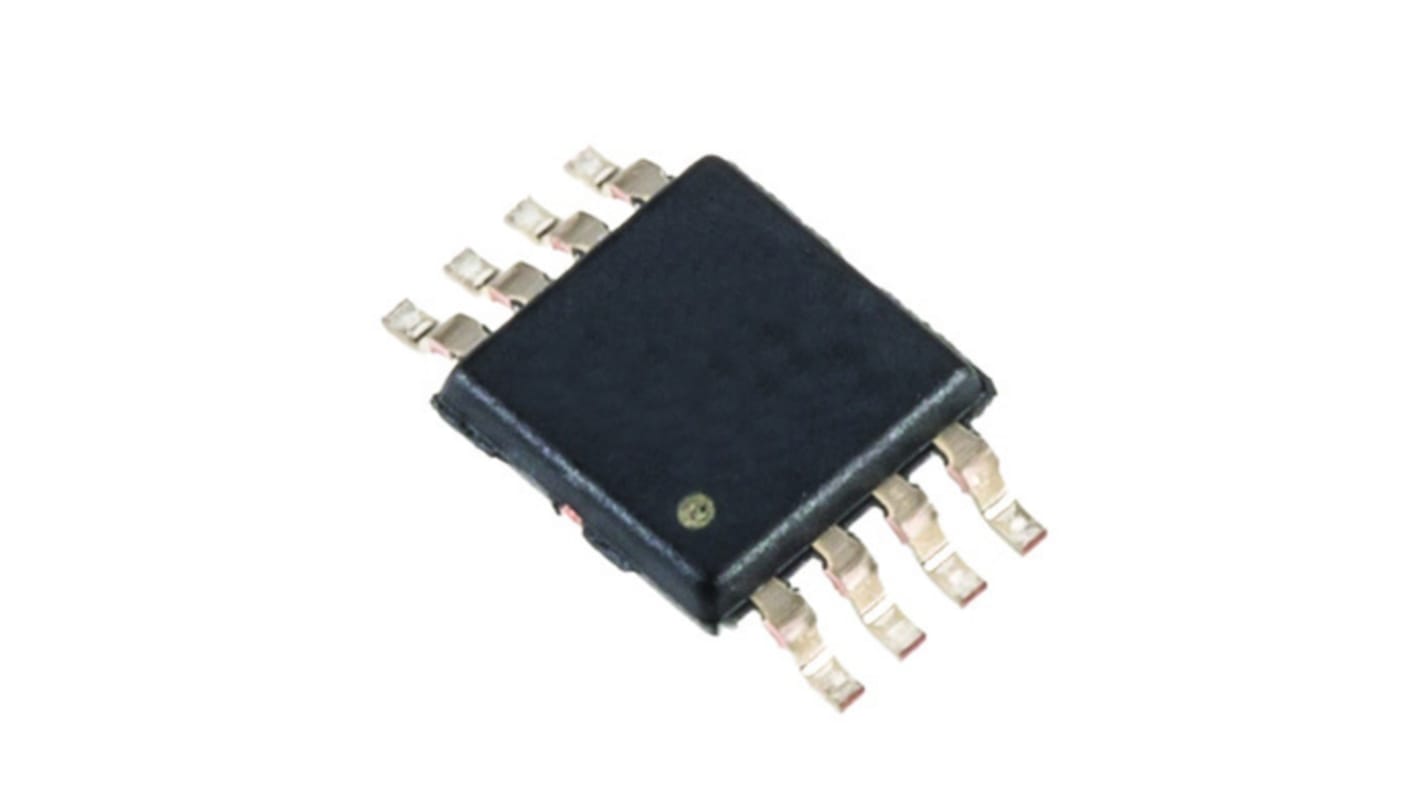

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 250 units)*
MYR885.25
FREE delivery for orders over RM 500.00
In Stock
- Plus 1,750 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 250 - 250 | MYR3.541 | MYR885.25 |
| 500 - 750 | MYR3.463 | MYR865.75 |
| 1000 + | MYR3.399 | MYR849.75 |
*price indicative
- RS Stock No.:
- 921-5100
- Mfr. Part No.:
- TXB0102DCUT
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | Translator | |
| Product Type | Voltage Level Shifter | |
| Direction Type | Bi-Directional | |
| Maximum Propagation Delay Time @ CL | 12.9ns | |
| Mount Type | Surface | |
| Number of Elements per Chip | 2 | |
| Package Type | VSSOP | |
| Output Type | 3 State | |
| Pin Count | 8 | |
| Logic Function | Voltage Level Translator | |
| Maximum Low Level Output Current | 0.02mA | |
| Maximum High Level Output Current | -0.02mA | |
| Minimum Supply Voltage | 1.2V | |
| Maximum Supply Voltage | 5.5V | |
| Translation | Voltage Level | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 2.3mm | |
| Standards/Approvals | No | |
| Series | TXB0102 | |
| Height | 0.85mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family Translator | ||
Product Type Voltage Level Shifter | ||
Direction Type Bi-Directional | ||
Maximum Propagation Delay Time @ CL 12.9ns | ||
Mount Type Surface | ||
Number of Elements per Chip 2 | ||
Package Type VSSOP | ||
Output Type 3 State | ||
Pin Count 8 | ||
Logic Function Voltage Level Translator | ||
Maximum Low Level Output Current 0.02mA | ||
Maximum High Level Output Current -0.02mA | ||
Minimum Supply Voltage 1.2V | ||
Maximum Supply Voltage 5.5V | ||
Translation Voltage Level | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 2.3mm | ||
Standards/Approvals No | ||
Series TXB0102 | ||
Height 0.85mm | ||
Automotive Standard No | ||
