Select all	Attribute	Value
	Brand	onsemi
	Logic Family	VHCT
	Mounting Type	Surface Mount
	Number of Elements per Chip	1
	Package Type	TSSOP
	Output Type	TTL
	Pin Count	24
	Logic Function	Bus Transceiver
	Dimensions	7.9 x 4.5 x 1.05mm
	Maximum Low Level Output Current	8mA
	Maximum High Level Output Current	-8mA
	Propagation Delay Test Condition	50pF
	Maximum Operating Supply Voltage	4.5 to 5.5 V
	Maximum Propagation Delay Time @ Maximum CL	9.5 ns @ 50 pF
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	4.5 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand onsemi
	Logic Family VHCT
	Mounting Type Surface Mount
	Number of Elements per Chip 1
	Package Type TSSOP
	Output Type TTL
	Pin Count 24
	Logic Function Bus Transceiver
	Dimensions 7.9 x 4.5 x 1.05mm
	Maximum Low Level Output Current 8mA
	Maximum High Level Output Current -8mA
	Propagation Delay Test Condition 50pF
	Maximum Operating Supply Voltage 4.5 to 5.5 V
	Maximum Propagation Delay Time @ Maximum CL 9.5 ns @ 50 pF
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 4.5 V
	Minimum Operating Temperature -40 °C

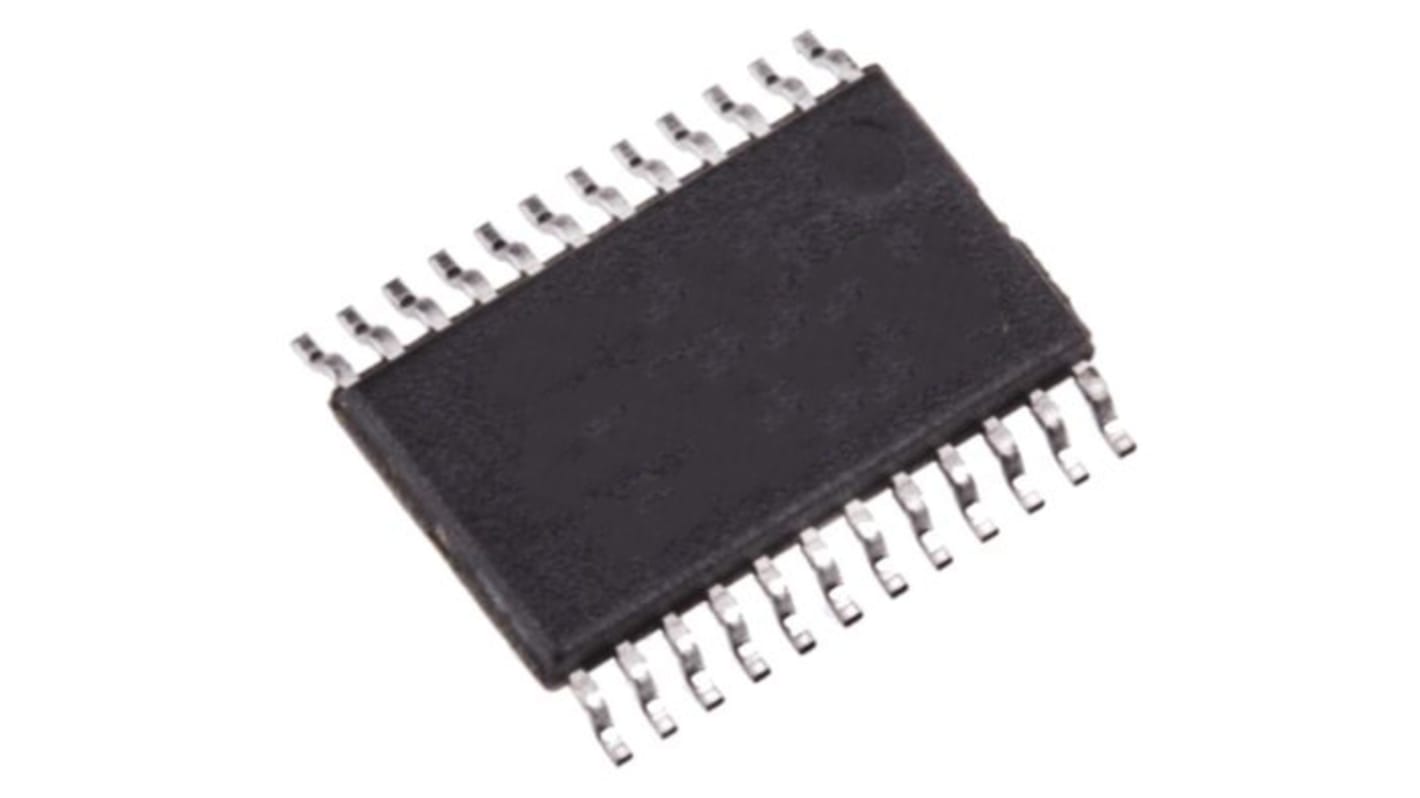

onsemi MC74VHCT245ADTG, Voltage Level Shifter Bus Transceiver 1, 24-Pin TSSOP

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
