Texas Instruments SN74LVC2T45DCTT, Voltage Level Shifter Bus Transceiver 1, 8-Pin SSOP

RS Stock No.:: 922-2877
Mfr. Part No.:: SN74LVC2T45DCTT
Manufacturer:: Texas Instruments

Texas Instruments SN74LVC2T45DCTT, Voltage Level Shifter Bus Transceiver 1, 8-Pin SSOP

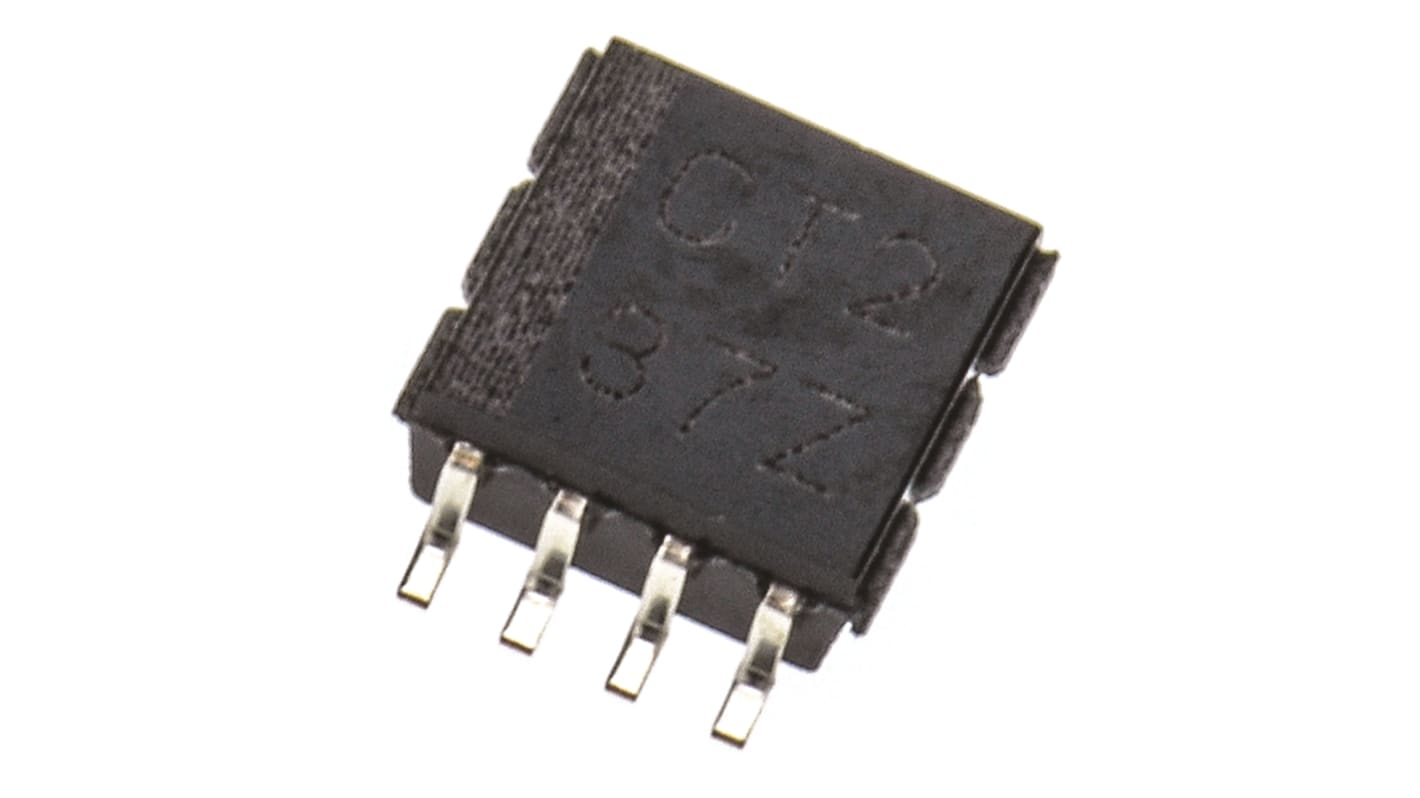

This image is representative of the product range

Bulk discount available

Price Each (On a Reel of 250)

MYR3.79

810 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Reel**
250 - 250	MYR3.79	MYR947.50
500 - 750	MYR3.707	MYR926.75
1000 +	MYR3.639	MYR909.75

**price indicative

RS Stock No.:: 922-2877
Mfr. Part No.:: SN74LVC2T45DCTT
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Family	LVC
Mounting Type	Surface Mount
Number of Elements per Chip	1
Package Type	SSOP
Pin Count	8
Dimensions	2.95 x 2.8 x 1.29mm
Logic Function	Bus Transceiver
Maximum Low Level Output Current	32mA
Maximum High Level Output Current	-32mA
Propagation Delay Test Condition	15pF
Maximum Operating Supply Voltage	5.5 V
Maximum Propagation Delay Time @ Maximum CL	17.7 ns @ 1.8 V
Maximum Operating Temperature	+85 °C
Minimum Operating Supply Voltage	1.65 V
Minimum Operating Temperature	-40 °C

Texas Instruments SN74LVC2T45DCTT, Voltage Level Shifter Bus Transceiver 1, 8-Pin SSOP

FREE delivery for orders over MYR700.00

74LVC2T Family, Texas Instruments
