Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	LVC
	Mounting Type	Surface Mount
	Package Type	SOIC
	Number of Elements per Chip	1
	Output Type	3 State
	Pin Count	24
	Dimensions	15.6 x 7.6 x 2.35mm
	Logic Function	Bus Transceiver
	Maximum Low Level Output Current	32mA
	Maximum High Level Output Current	-32mA
	Propagation Delay Test Condition	15pF
	Maximum Propagation Delay Time @ Maximum CL	32.2 ns @ 15 pF
	Maximum Operating Supply Voltage	5.5 V
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	1.65 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Texas Instruments
	Logic Family LVC
	Mounting Type Surface Mount
	Package Type SOIC
	Number of Elements per Chip 1
	Output Type 3 State
	Pin Count 24
	Dimensions 15.6 x 7.6 x 2.35mm
	Logic Function Bus Transceiver
	Maximum Low Level Output Current 32mA
	Maximum High Level Output Current -32mA
	Propagation Delay Test Condition 15pF
	Maximum Propagation Delay Time @ Maximum CL 32.2 ns @ 15 pF
	Maximum Operating Supply Voltage 5.5 V
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 1.65 V
	Minimum Operating Temperature -40 °C

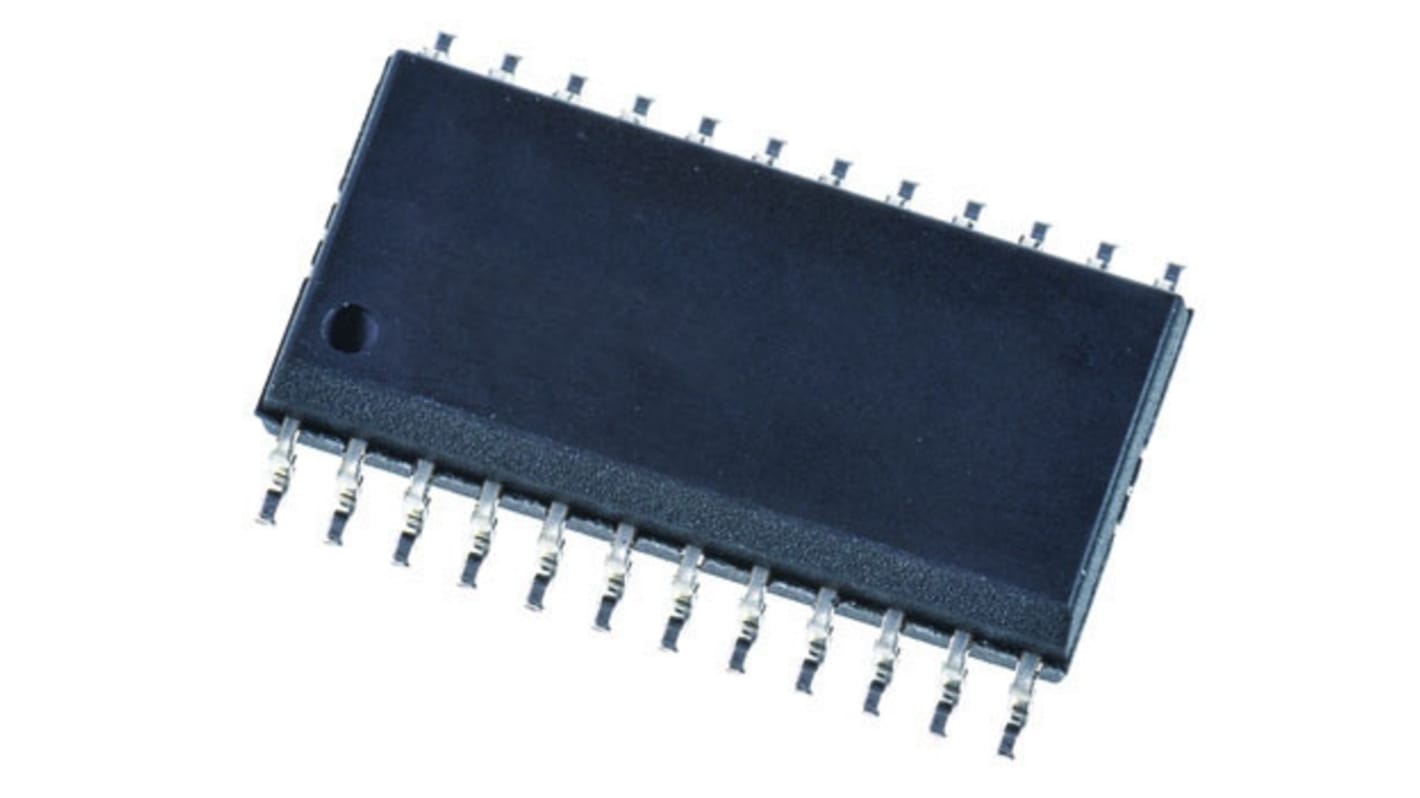

Texas Instruments SN74LVC8T245DWR, Voltage Level Translator Bus Transceiver 1, 24-Pin SOIC

FREE delivery for orders over MYR500.00

74LVC Family Bus Transceivers, Texas Instruments

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
