Units	Per Unit	Per Reel**
2000 - 2000	MYR6.843	MYR13,686.00
4000 - 6000	MYR6.693	MYR13,386.00
8000 +	MYR6.569	MYR13,138.00

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	AVC
	Mounting Type	Surface Mount
	Number of Elements per Chip	1
	Package Type	TVSOP
	Output Type	3 State
	Pin Count	16
	Logic Function	Bus Transceiver
	Dimensions	3.7 x 4.5 x 1.05mm
	Maximum Low Level Output Current	12mA
	Maximum High Level Output Current	-12mA
	Propagation Delay Test Condition	15pF
	Maximum Propagation Delay Time @ Maximum CL	10.3 ns @ 15 pF
	Maximum Operating Supply Voltage	3.6 V
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	1.2 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Texas Instruments
	Logic Family AVC
	Mounting Type Surface Mount
	Number of Elements per Chip 1
	Package Type TVSOP
	Output Type 3 State
	Pin Count 16
	Logic Function Bus Transceiver
	Dimensions 3.7 x 4.5 x 1.05mm
	Maximum Low Level Output Current 12mA
	Maximum High Level Output Current -12mA
	Propagation Delay Test Condition 15pF
	Maximum Propagation Delay Time @ Maximum CL 10.3 ns @ 15 pF
	Maximum Operating Supply Voltage 3.6 V
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 1.2 V
	Minimum Operating Temperature -40 °C

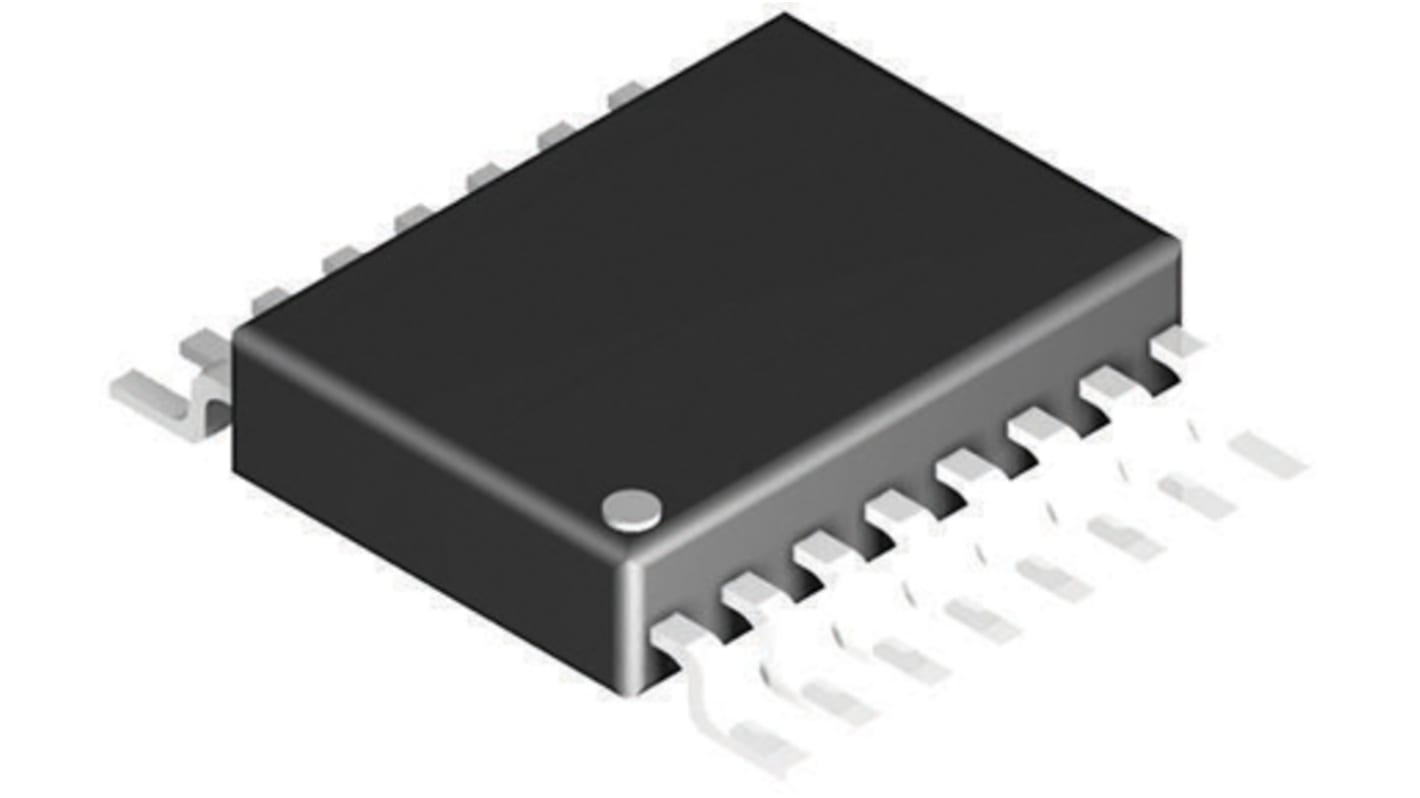

Texas Instruments SN74AVC4T245DGVR, Voltage Level Translator Bus Transceiver 1, 16-Pin TVSOP

FREE delivery for orders over MYR500.00

74AVC Family, Texas Instruments
