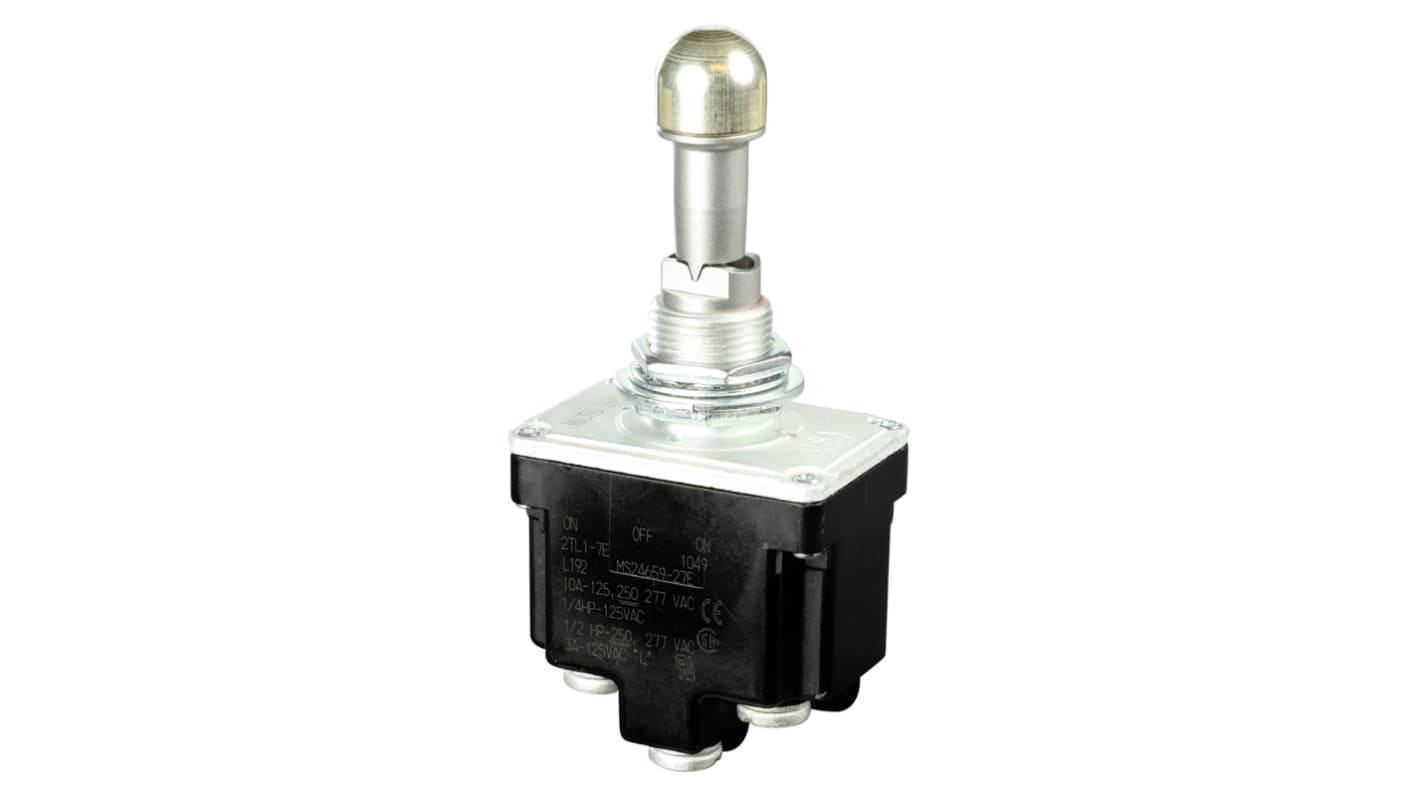

Honeywell Toggle Switch, Panel Mount, On-Off-On, DPDT, Screw Terminal, 28 V dc, 277 V ac

View all Toggle Switches

Subtotal (1 unit)*

MYR458.35

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR458.35

*price indicative

RS Stock No.:
842-4805
Mfr. Part No.:
2TL1-7E
Manufacturer:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Contact Configuration

DPDT

Product Type

Toggle Switch

Switch Operation

On-Off-On

Switch Contact Current

18 A

Mount Type

Panel

Terminal Type

Screw

Panel Cutout Size

12.4 mm

Contact AC Voltage

277V ac

Minimum Operating Temperature

-65°C

Contact DC Voltage

28V dc

Actuator Length

17mm

Switch Configuration

On-Off-On

Maximum Operating Temperature

71°C

Series

TL

Standards/Approvals

UL, CE, CSA

Length

22mm

Height

67mm

Width

53 mm

RoHS Status: Exempt

COO (Country of Origin):
US

Honeywell TL Series Toggle Switches


The TL series Micro Switch™ toggle switches feature pull-to-unlock toggle levers which help to prevent accidental operation (in order for the lever to change position it must be pulled 2.3mm). The have been constructed with high strength, temperature resistant, non-tracking case material and silver cadmium contacts.

Qualified to MIL-DTL-3950

Environment-proof sealing

1,2, and 4 pole circuitry

Standard and pull-to-unlock levers

2 and 3 position, maintained and momentary toggle action

Temperature range: -85 to +160 °F

Completely sealed switching chamber

Step-design case provides added space between terminals to help prevent shorting

Potential Applications:

Industrial machinery and equipment

Military and commercial aviation

Construction equipment

Test instruments

Agricultural machinery

Process control

Medical instrumentation

Standards

UL recognized, CSA certified, CE approved
