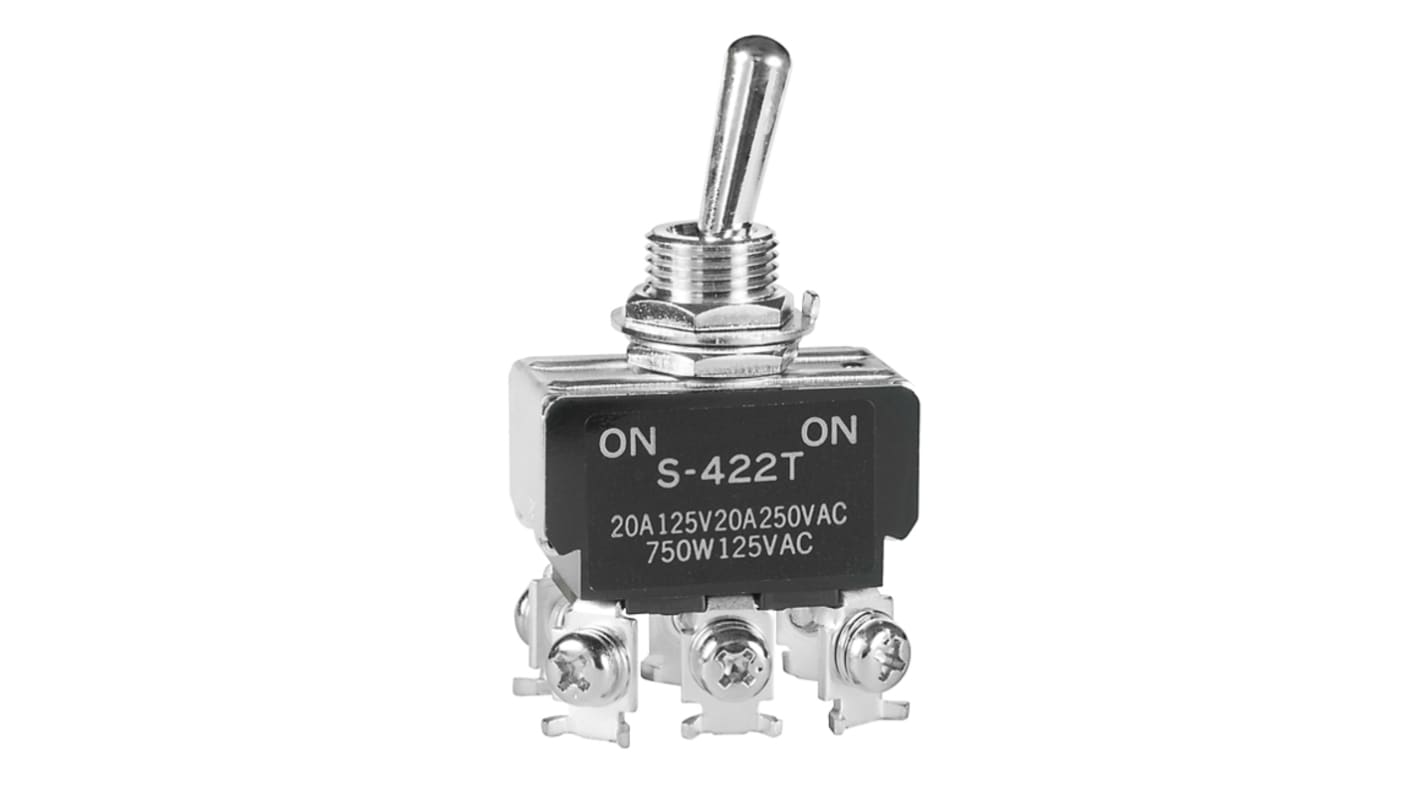

NKK Switches Toggle Switch, Panel Mount, On-On, DPDT, Screw Terminal, 250V ac
- RS Stock No.:
- 181-3651
- Mfr. Part No.:
- S422T
- Manufacturer:
- NKK Switches
Bulk discount available
Subtotal (1 unit)**
MYR89.91
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR89.91 |
| 5 - 49 | MYR88.02 |
| 50 + | MYR85.37 |
**price indicative
- RS Stock No.:
- 181-3651
- Mfr. Part No.:
- S422T
- Manufacturer:
- NKK Switches
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | DPDT | |
| Switch Operation | On-On | |
| Contact Current Rating | 20 A | |
| Mounting Type | Panel Mount | |
| Terminal Type | Screw | |
| Illuminated | No | |
| Panel Cut Out Diameter | 12.5mm | |
| Actuator Length | 17.5mm | |
| Actuator Material | Chrome Plated Brass | |
| Voltage Rating | 250V ac | |
| Contact Resistance | 10mΩ | |
| Contact Material | Silver Alloy (Movable & Stationary) | |
| Operating Temperature Range | -10 → +70°C | |
| Mechanical Life | 50000Operations | |
| Standards Met | CSA, UL | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration DPDT | ||
Switch Operation On-On | ||
Contact Current Rating 20 A | ||
Mounting Type Panel Mount | ||
Terminal Type Screw | ||
Illuminated No | ||
Panel Cut Out Diameter 12.5mm | ||
Actuator Length 17.5mm | ||
Actuator Material Chrome Plated Brass | ||
Voltage Rating 250V ac | ||
Contact Resistance 10mΩ | ||
Contact Material Silver Alloy (Movable & Stationary) | ||
Operating Temperature Range -10 → +70°C | ||
Mechanical Life 50000Operations | ||
Standards Met CSA, UL | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
