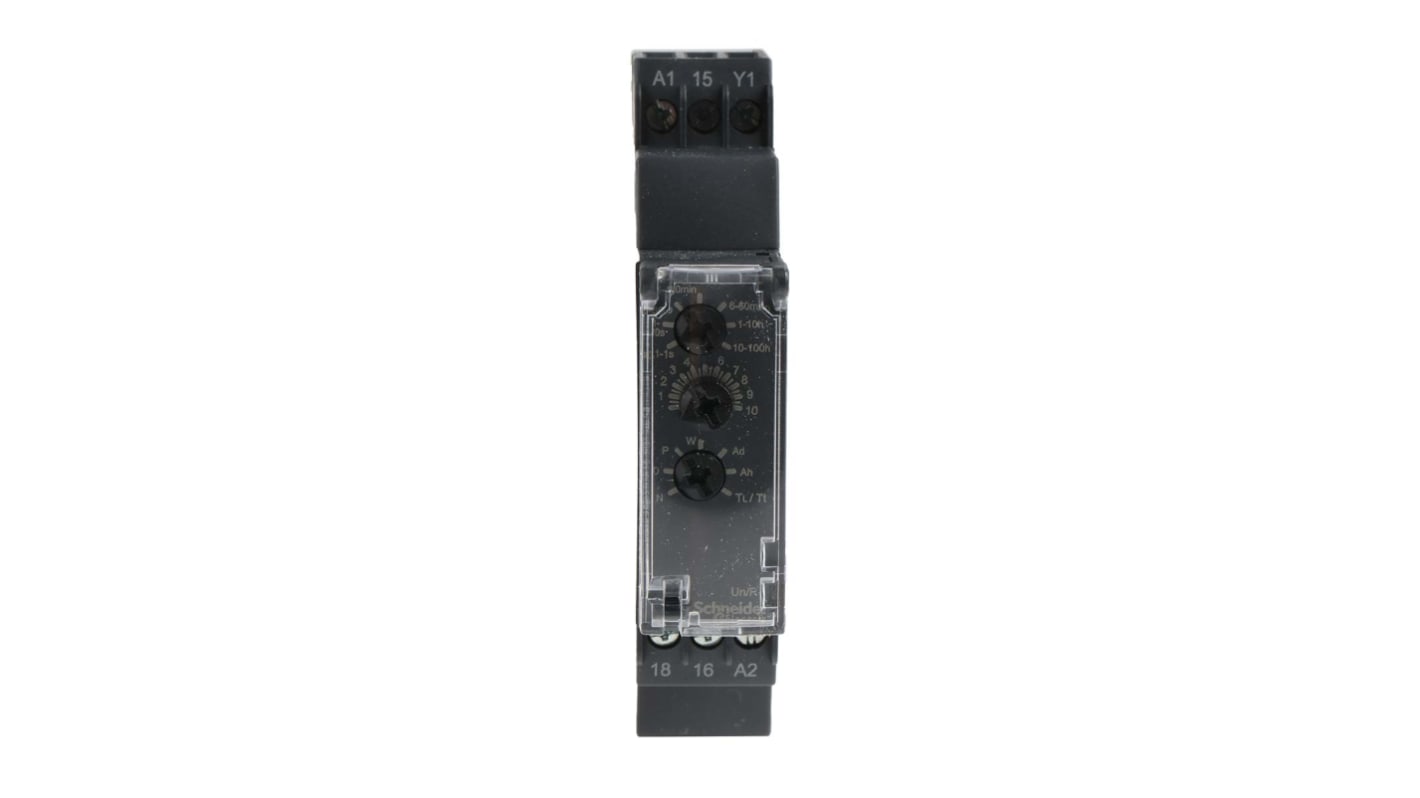

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 V dc, 24 → 240V ac, 2-Contact, 1 s
- RS Stock No.:
- 791-2758
- Distrelec Article No.:
- 303-02-775
- Mfr. Part No.:
- RE17RMXMU
- Manufacturer:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
MYR300.59
FREE delivery for orders over RM 500.00
In Stock
- Plus 25 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | MYR300.59 |
| 25 - 124 | MYR294.29 |
| 125 + | MYR242.21 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-2758
- Distrelec Article No.:
- 303-02-775
- Mfr. Part No.:
- RE17RMXMU
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Supply Voltage | 24 V dc, 24 → 240V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Multifunction | |
| Time Range | 1 s → 100h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 8A | |
| Maximum Voltage | 24 V dc, 240V ac | |
| Terminal Type | Screw | |
| Switch Configuration | SPDT | |
| Width | 17.5mm | |
| Minimum Voltage | 24V ac | |
| Series | Harmony Time | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Depth | 72mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Cadmium Free | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Supply Voltage 24 V dc, 24 → 240V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation Multifunction | ||
Time Range 1 s → 100h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 8A | ||
Maximum Voltage 24 V dc, 240V ac | ||
Terminal Type Screw | ||
Switch Configuration SPDT | ||
Width 17.5mm | ||
Minimum Voltage 24V ac | ||
Series Harmony Time | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Depth 72mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Contact Material Cadmium Free | ||
Schneider Electric Timer Relay, 8A Output Current, 100ms Power-On Delay - RE17 Series - RE17RMXMU
Ensure your machinery reports for duty on schedule with this timer relay from Schneider Electric. It switches your equipment on and off at pre-set intervals to take the need for manual operation off your hands. As the supply and output circuits are isolated, the device helps to minimise the risk of damage caused by power hazards. Its electrical durability of 100,000 cycles means you can bank on consistent, long-lasting performance.
• Screw terminals keep wires held securely in place to ensure a stable connection
• Mounts onto a DIN rail in any position for flexible installation
• Broad operating temperature range between -20°C and +60°C for use in demanding conditions
• Mounts onto a DIN rail in any position for flexible installation
• Broad operating temperature range between -20°C and +60°C for use in demanding conditions
Applications
• Industrial automation systems
• Programmable logical controllers
• Medical equipment
• Lighting circuits
• Safety controls
• Programmable logical controllers
• Medical equipment
• Lighting circuits
• Safety controls
Does this timer relay consume a lot of power?
No, this timer relay consumes just 0.6W at a voltage of 24V DC, so it's an energy-efficient choice.
Is this relay safe to handle?
Yes. Its terminal block has an IP20 rating, so you can be sure it's finger-safe and protected against objects larger than 12mm.
