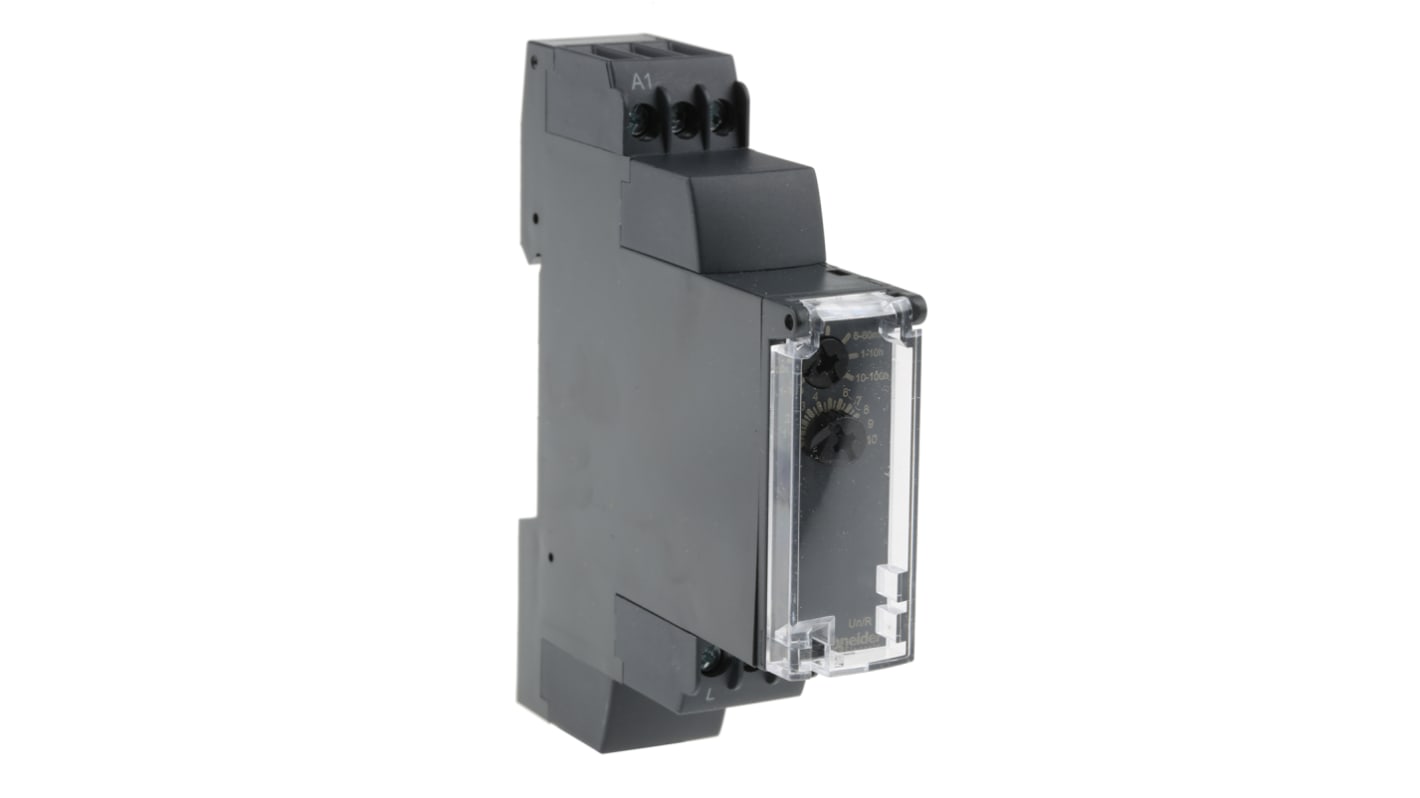

    Schneider Electric DIN Rail Single Function Timer Relay, 24 → 240V ac/dc, Solid State, 0.1 s → 100h

    RS Stock No.:
    791-2708
    Mfr. Part No.:
    RE17LAMW
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all Timer Relays
    54 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    Was MYR215.92

    You pay

    MYR201.76

    unitsPer Unit
    1 - 24MYR201.76
    25 - 49MYR197.52
    50 +MYR191.60
    RS Stock No.:
    791-2708
    Mfr. Part No.:
    RE17LAMW
    Manufacturer:
    Schneider Electric

    Legislation and Compliance


    Product Details

    On Delay Timers - Zelio RE17L Series


    RE17L series timing relays enable simple automation cycles to be set up using wired logic. They can also be used to complement the functions of PLCs.
    Timing relays with solid state output reduce the amount of wiring required (wired in series). The durability of these timing relays is independent of the number of operating cycles.

    Features and Benefits:


    On-delay function
    Multivoltage
    LED state indicator
    Solid state output 0.7 A
    Screw terminals
    DIN rail mounting

    Protection ratings & Safety features:


    • Compliant with international standards and certifications IEC 61812-1, EN 61812-1 UL, CSA, GL, RCM, EAC, CCC, China ROHS
    • IP50 (front panel) conforming to IEC 60529
    • IP40 (housing) conforming to IEC 60529
    • IP20 (terminal block) conforming to IEC 60529
    • Shock resistance - 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
    • Vibration resistance - 20 m/s² (f = 10...150 Hz) conforming to IEC 60068-2-6

    Applications - Time Delay Relays are typically used in industrial applications and play an important role for many industrial processes such as small panel or sub-panels requirements. Other applications include:

    • Lighting circuits
    • Motor start control
    • Sensitive equipment
    • Safety control
    • Conveyor belt sequence delay
    • Machines, single machine and automation
    • Buildings, door locks and roller shutters
    • Water segment such as pumping and irrigation
    • HVAC, fans and water systems


    Specifications

    AttributeValue
    Supply Voltage24 → 240V ac/dc
    Mounting TypeDIN Rail
    Time Range0.1 s → 100h
    Mode of OperationON Delay
    Number of Timer FunctionsSingle
    Contact ConfigurationSolid State
    Time IncrementHours, Minutes, Seconds
    Maximum Voltage240V ac/dc
    SeriesRE17
    Maximum Current20A
    Terminal TypeScrew
    Minimum Voltage24V ac/dc
    Minimum Current0.7A
    Maximum Operating Temperature+60°C
    Width17.5mm
    Depth72mm
    Length90mm
    Minimum Operating Temperature-20°C
    Time Delay<100ms
