Units	Per Unit	Per Tape**
200 - 600	MYR0.401	MYR80.20
800 - 1400	MYR0.393	MYR78.60
1600 +	MYR0.385	MYR77.00

Select all	Attribute	Value
	Brand	onsemi
	Maximum Forward Current	200mA
	Diode Configuration	Single
	Mounting Type	Surface Mount
	Number of Elements per Chip	1
	Maximum Reverse Voltage	70V
	Package Type	SOD-323
	Maximum Forward Voltage Drop	1.1V
	Pin Count	2
	Maximum Diode Capacitance	2.5pF
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Length	1.8mm
	Width	1.35mm
	Height	1mm
	Dimensions	1.8 x 1.35 x 1mm
	Maximum Series Resistance @ Maximum IF	2 kΩ @ 10 mA

	Select all
	Brand onsemi
	Maximum Forward Current 200mA
	Diode Configuration Single
	Mounting Type Surface Mount
	Number of Elements per Chip 1
	Maximum Reverse Voltage 70V
	Package Type SOD-323
	Maximum Forward Voltage Drop 1.1V
	Pin Count 2
	Maximum Diode Capacitance 2.5pF
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Length 1.8mm
	Width 1.35mm
	Height 1mm
	Dimensions 1.8 x 1.35 x 1mm
	Maximum Series Resistance @ Maximum IF 2 kΩ @ 10 mA

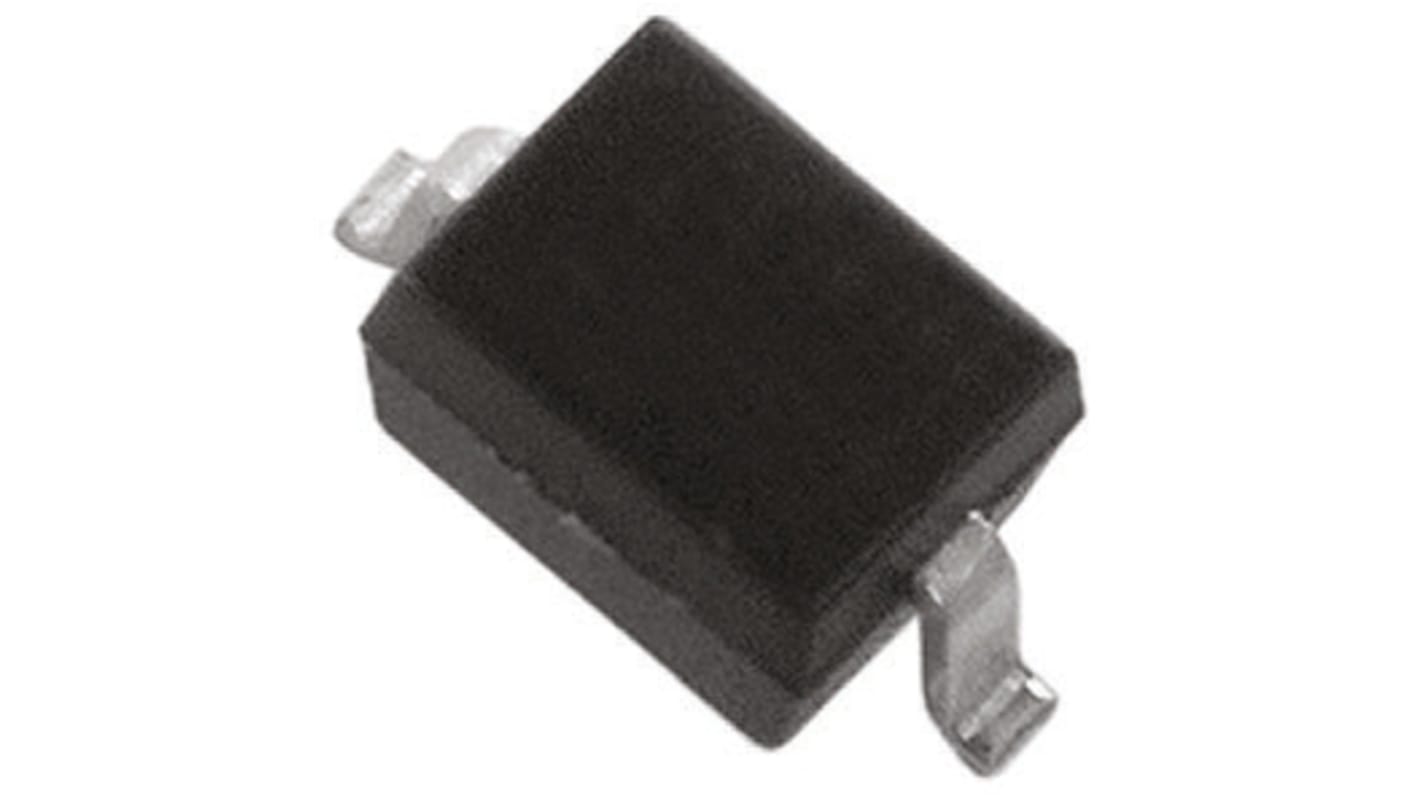

onsemi Switching Diode, 200mA 70V, 2-Pin SOD-323 MMDL6050T1G

FREE delivery for orders over MYR500.00

Small Signal Switching Diodes, ON Semiconductor
