Units	Per Unit	Per Reel**
3000 - 3000	MYR0.095	MYR285.00
6000 - 9000	MYR0.094	MYR282.00
12000 +	MYR0.092	MYR276.00

Select all	Attribute	Value
	Brand	onsemi
	Maximum Forward Current	200mA
	Diode Configuration	Single
	Number of Elements per Chip	1
	Mounting Type	Surface Mount
	Maximum Reverse Voltage	70V
	Package Type	SOT-23
	Pin Count	3
	Maximum Diode Capacitance	2.5pF
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Length	3.04mm
	Width	1.4mm
	Height	1.01mm
	Dimensions	3.04 x 1.4 x 1.01mm
	Power Dissipation	300mW

	Select all
	Brand onsemi
	Maximum Forward Current 200mA
	Diode Configuration Single
	Number of Elements per Chip 1
	Mounting Type Surface Mount
	Maximum Reverse Voltage 70V
	Package Type SOT-23
	Pin Count 3
	Maximum Diode Capacitance 2.5pF
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Length 3.04mm
	Width 1.4mm
	Height 1.01mm
	Dimensions 3.04 x 1.4 x 1.01mm
	Power Dissipation 300mW

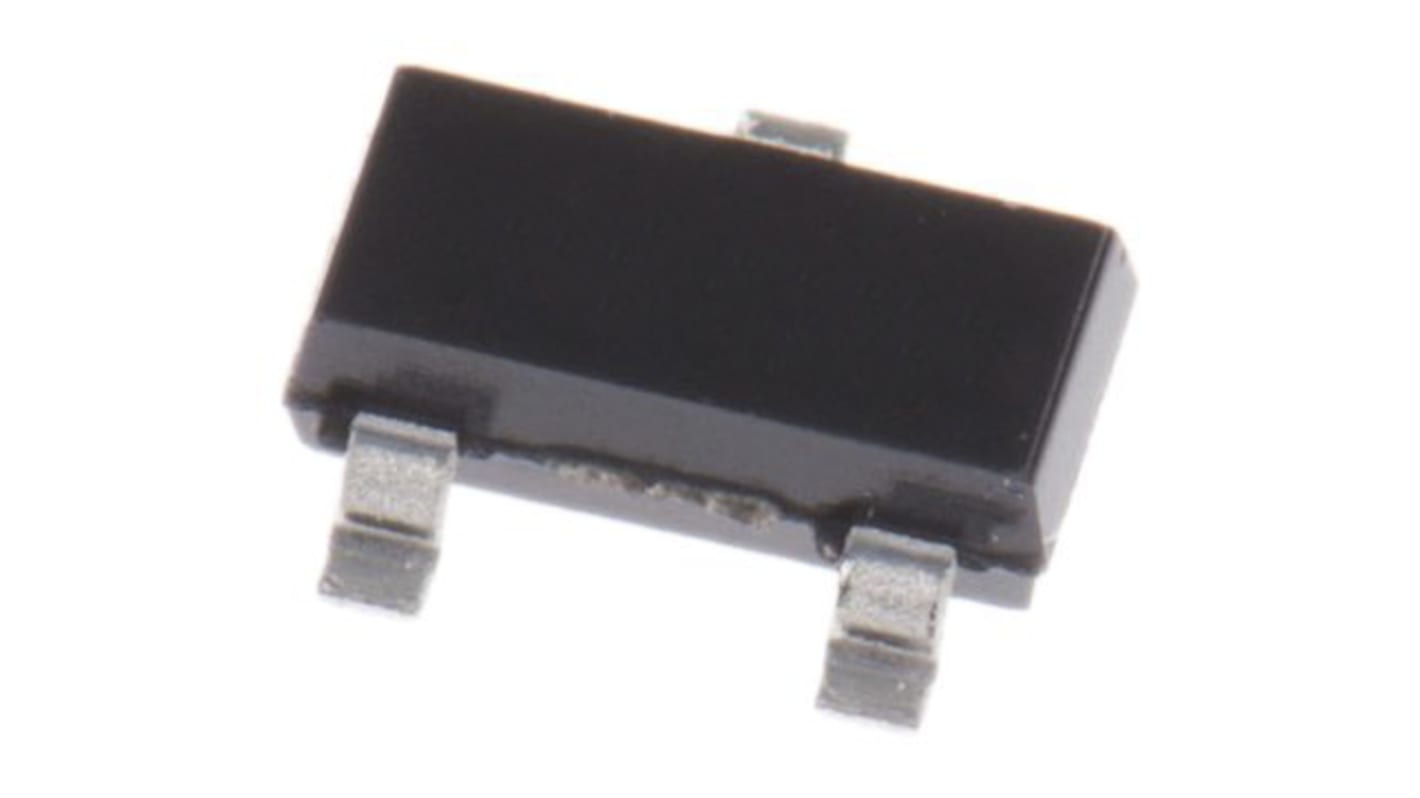

onsemi Switching Diode, 200mA 70V, 3-Pin SOT-23 MMBD6050LT1G
