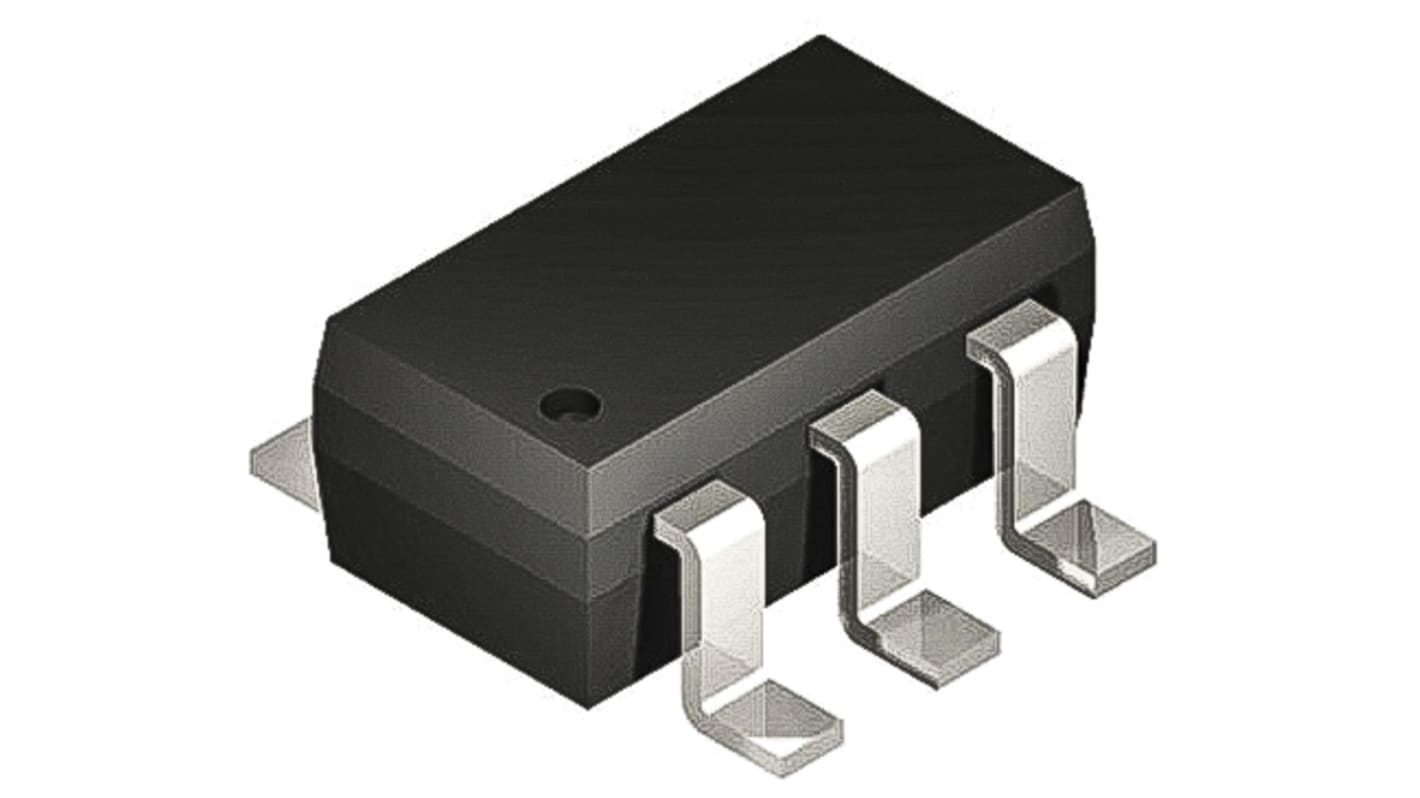

Nexperia Switching Diode, Series, 215 mA, 6-Pin 100 V SOT-23 BAV70,235
- RS Stock No.:
- 170-7959
- Mfr. Part No.:
- BAV70,235
- Manufacturer:
- Nexperia
Subtotal (1 reel of 10000 units)*
MYR700.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 11 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 10000 + | MYR0.07 | MYR700.00 |
*price indicative
- RS Stock No.:
- 170-7959
- Mfr. Part No.:
- BAV70,235
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Switching Diode | |
| Maximum Forward Current If | 215mA | |
| Diode Configuration | Series | |
| Sub Type | Switching Diode | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Pin Count | 6 | |
| Maximum Forward Voltage Vf | 1.25V | |
| Peak Reverse Recovery Time trr | 4ns | |
| Minimum Operating Temperature | -65°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Maximum Power Dissipation Pd | 250mW | |
| Maximum Operating Temperature | 150°C | |
| Length | 3mm | |
| Height | 1.1mm | |
| Series | BAV70 | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Switching Diode | ||
Maximum Forward Current If 215mA | ||
Diode Configuration Series | ||
Sub Type Switching Diode | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Pin Count 6 | ||
Maximum Forward Voltage Vf 1.25V | ||
Peak Reverse Recovery Time trr 4ns | ||
Minimum Operating Temperature -65°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 4A | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 100V | ||
Maximum Power Dissipation Pd 250mW | ||
Maximum Operating Temperature 150°C | ||
Length 3mm | ||
Height 1.1mm | ||
Series BAV70 | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
High speed switching diodes fabricated in planar technology with a maximum switching speed of 4 ns. Supports customized high density circuit designs encapsulated in hermetically sealed packaging.
High-speed switching diodes, encapsulated in small Surface-Mounted Device (SMD) plastic packages.
High switching speed: trr ≤ 4 ns
Low capacitance: Cd ≤ 1.5 pF
Low leakage current
Reverse voltage: VR ≤ 100 V
Small SMD plastic packages
Target applications
High-speed switching
General-purpose switching
