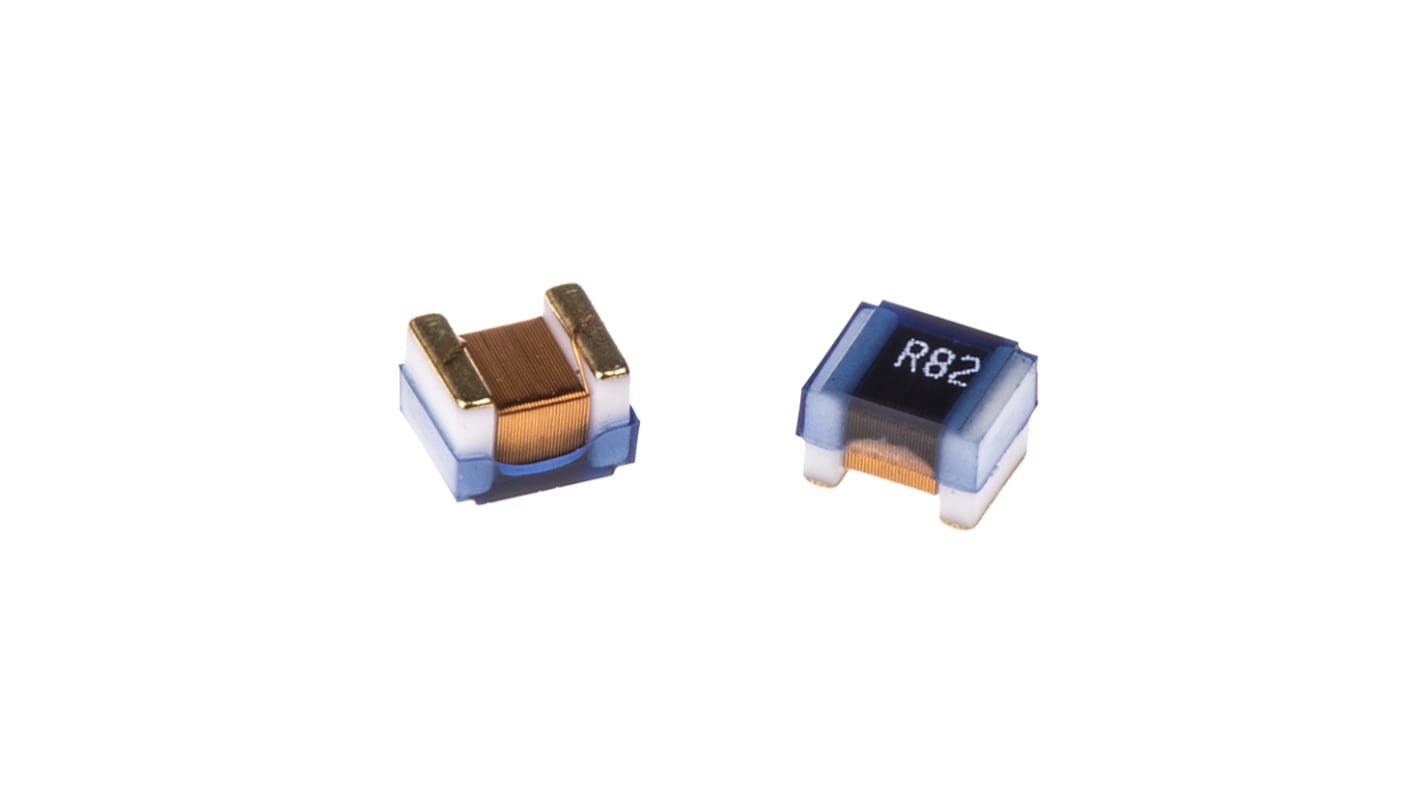

Wurth, WE-KI, 1008A Shielded Wire-wound SMD Inductor with a Ceramic Core, 0.82 μH ±5% Wire-Wound 180mA Idc Q:45
- RS Stock No.:
- 883-0127
- Mfr. Part No.:
- 744762282A
- Manufacturer:
- Wurth Elektronik
This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 10 units)*
MYR23.16
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 10 - 490 | MYR2.316 | MYR23.16 |
| 500 - 990 | MYR2.199 | MYR21.99 |
| 1000 + | MYR2.09 | MYR20.90 |
*price indicative
- RS Stock No.:
- 883-0127
- Mfr. Part No.:
- 744762282A
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 0.82 μH | |
| Maximum DC Current | 180mA | |
| Package/Case | 1008A | |
| Length | 2.5mm | |
| Depth | 2mm | |
| Height | 1.6mm | |
| Dimensions | 2.5 x 2 x 1.6mm | |
| Shielded | Yes | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 2.3Ω | |
| Series | WE-KI | |
| Core Material | Ceramic | |
| Maximum Self Resonant Frequency | 350MHz | |
| Maximum Operating Temperature | +125°C | |
| Minimum Quality Factor | 45 | |
| Inductor Construction | Wire-Wound | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 0.82 μH | ||
Maximum DC Current 180mA | ||
Package/Case 1008A | ||
Length 2.5mm | ||
Depth 2mm | ||
Height 1.6mm | ||
Dimensions 2.5 x 2 x 1.6mm | ||
Shielded Yes | ||
Tolerance ±5% | ||
Maximum DC Resistance 2.3Ω | ||
Series WE-KI | ||
Core Material Ceramic | ||
Maximum Self Resonant Frequency 350MHz | ||
Maximum Operating Temperature +125°C | ||
Minimum Quality Factor 45 | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- MY
Wurth 1008 WE-KI Series Wire-Wound Inductors
Wurth WE-KI Series 1008 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recommended for these products.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
