Wurth, WE-PMI Series, 0805 (2012M) Unshielded Multilayer Surface Mount Inductor 1 μH ±20% Multilayer 1.2A Idc Q:14
- RS Stock No.:
- 823-5403
- Mfr. Part No.:
- 74479773210
- Manufacturer:
- Wurth Elektronik

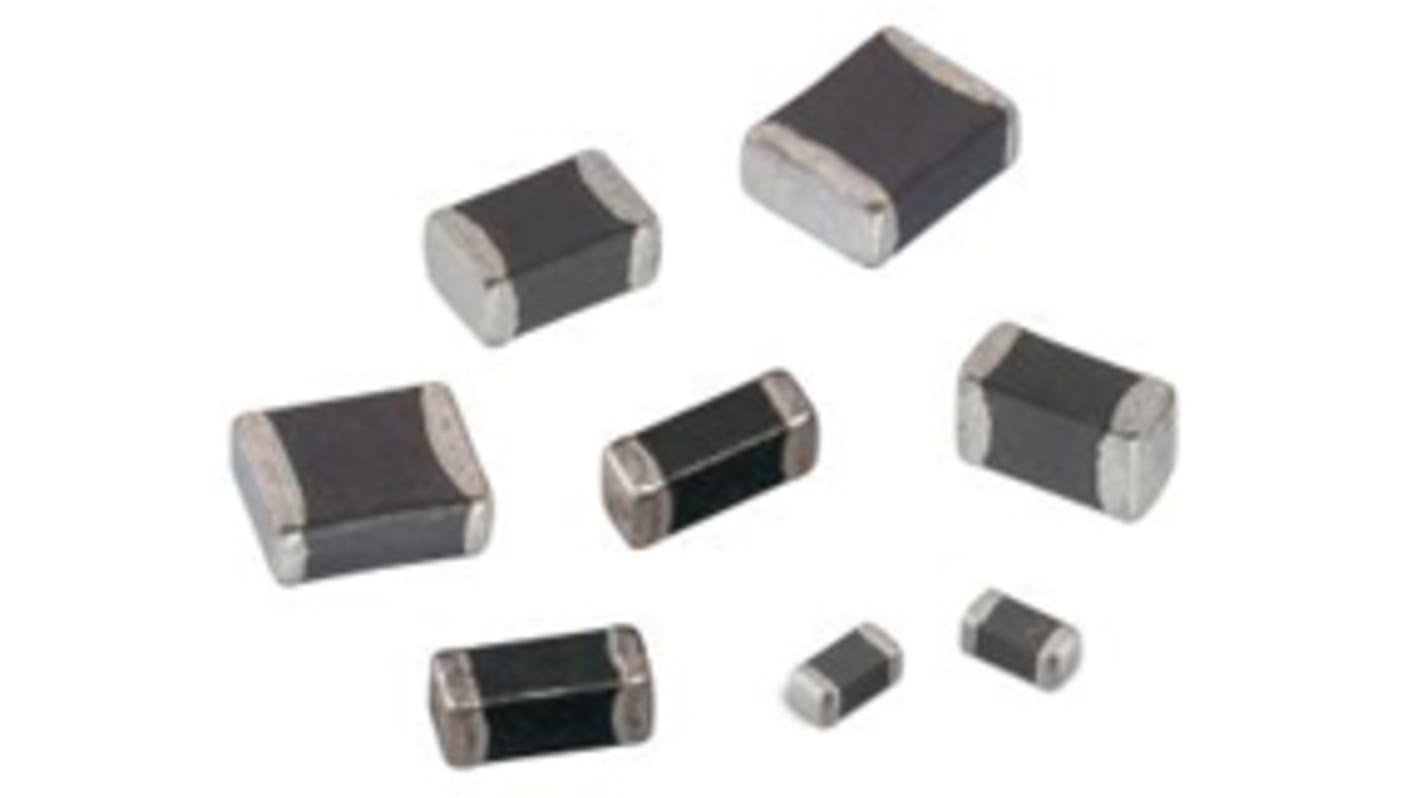

This image is representative of the product range
Save 6% when you buy 2500 units
Subtotal (1 bag of 5 units)*
MYR8.88
FREE delivery for orders over RM 500.00
In Stock
- Plus 45 unit(s) shipping from 22 September 2025
- Plus 1,450 unit(s) shipping from 29 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 5 - 1245 | MYR1.776 | MYR8.88 |
| 1250 - 2495 | MYR1.718 | MYR8.59 |
| 2500 + | MYR1.668 | MYR8.34 |
*price indicative
- RS Stock No.:
- 823-5403
- Mfr. Part No.:
- 74479773210
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1 μH | |
| Maximum DC Current | 1.2A | |
| Package/Case | 0805 (2012M) | |
| Length | 2.0mm | |
| Depth | 1.25mm | |
| Height | 0.5mm | |
| Dimensions | 2.0 x 1.25 x 0.5mm | |
| Shielded | No | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 180mΩ | |
| Series | WE-PMI Series | |
| Maximum Self Resonant Frequency | 90MHz | |
| Minimum Quality Factor | 14 | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Inductor Construction | Multilayer | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1 μH | ||
Maximum DC Current 1.2A | ||
Package/Case 0805 (2012M) | ||
Length 2.0mm | ||
Depth 1.25mm | ||
Height 0.5mm | ||
Dimensions 2.0 x 1.25 x 0.5mm | ||
Shielded No | ||
Tolerance ±20% | ||
Maximum DC Resistance 180mΩ | ||
Series WE-PMI Series | ||
Maximum Self Resonant Frequency 90MHz | ||
Minimum Quality Factor 14 | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Inductor Construction Multilayer | ||
