Units	Per Unit	Per Pack*
5 - 145	MYR3.05	MYR15.25
150 - 295	MYR2.984	MYR14.92
300 +	MYR2.894	MYR14.47

Select all	Attribute	Value
	Brand	Bourns
	Inductance	22 μH
	Maximum DC Current	4A
	Package/Case	1260
	Length	12.5mm
	Depth	12.5mm
	Height	6mm
	Dimensions	12.5 x 12.5 x 6mm
	Shielded	Yes
	Tolerance	±20%
	Maximum DC Resistance	43mΩ
	Series	SRR1260
	Core Material	Ferrite
	Maximum Self Resonant Frequency	13.4MHz
	Inductor Construction	Wire-Wound
	Minimum Quality Factor	29
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+125°C

	Select all
	Brand Bourns
	Inductance 22 μH
	Maximum DC Current 4A
	Package/Case 1260
	Length 12.5mm
	Depth 12.5mm
	Height 6mm
	Dimensions 12.5 x 12.5 x 6mm
	Shielded Yes
	Tolerance ±20%
	Maximum DC Resistance 43mΩ
	Series SRR1260
	Core Material Ferrite
	Maximum Self Resonant Frequency 13.4MHz
	Inductor Construction Wire-Wound
	Minimum Quality Factor 29
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +125°C

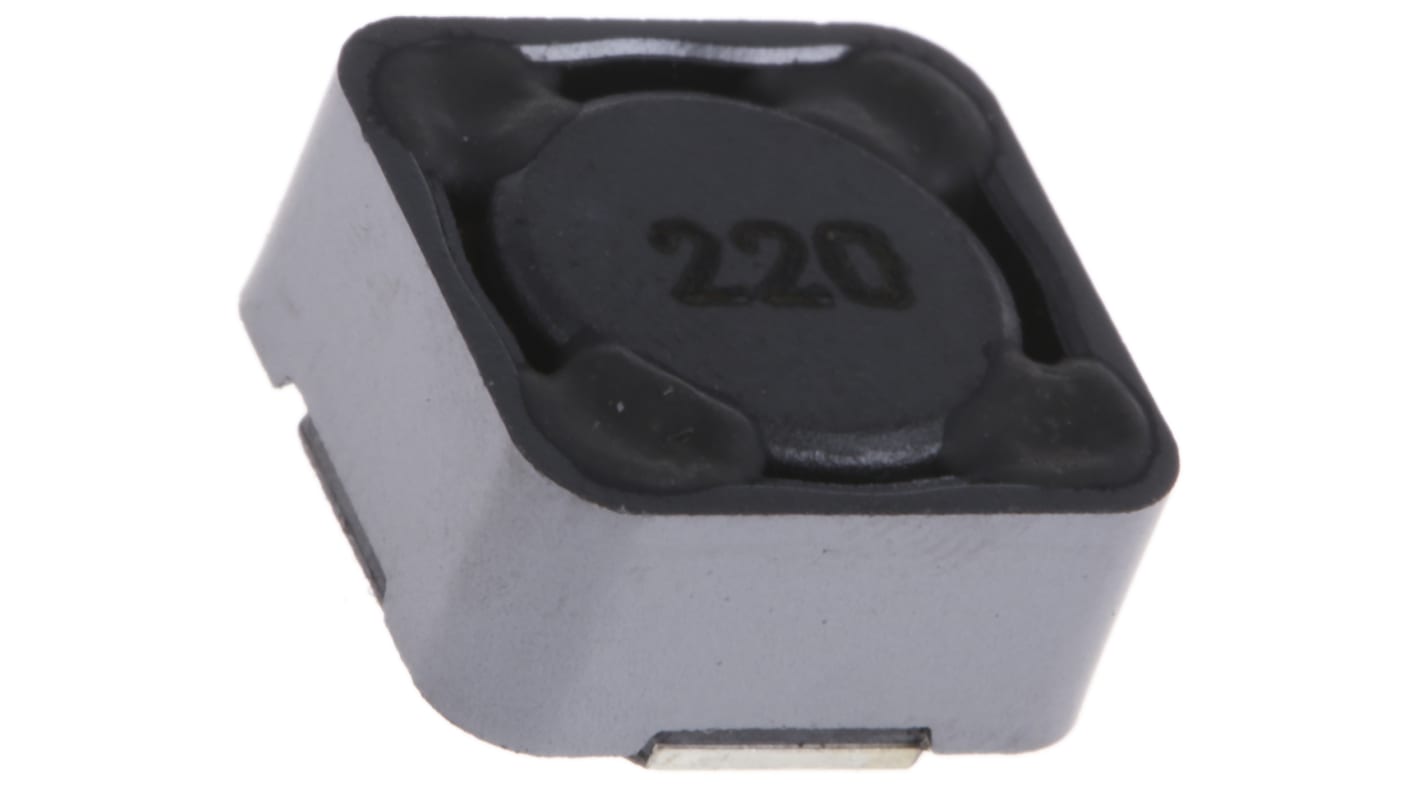

Bourns, SRR1260, 1260 Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound 4A Idc Q:29

FREE delivery for orders over RM 500.00

SRR1260 Series Magnetically Shielded Wire Wound Inductors

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
