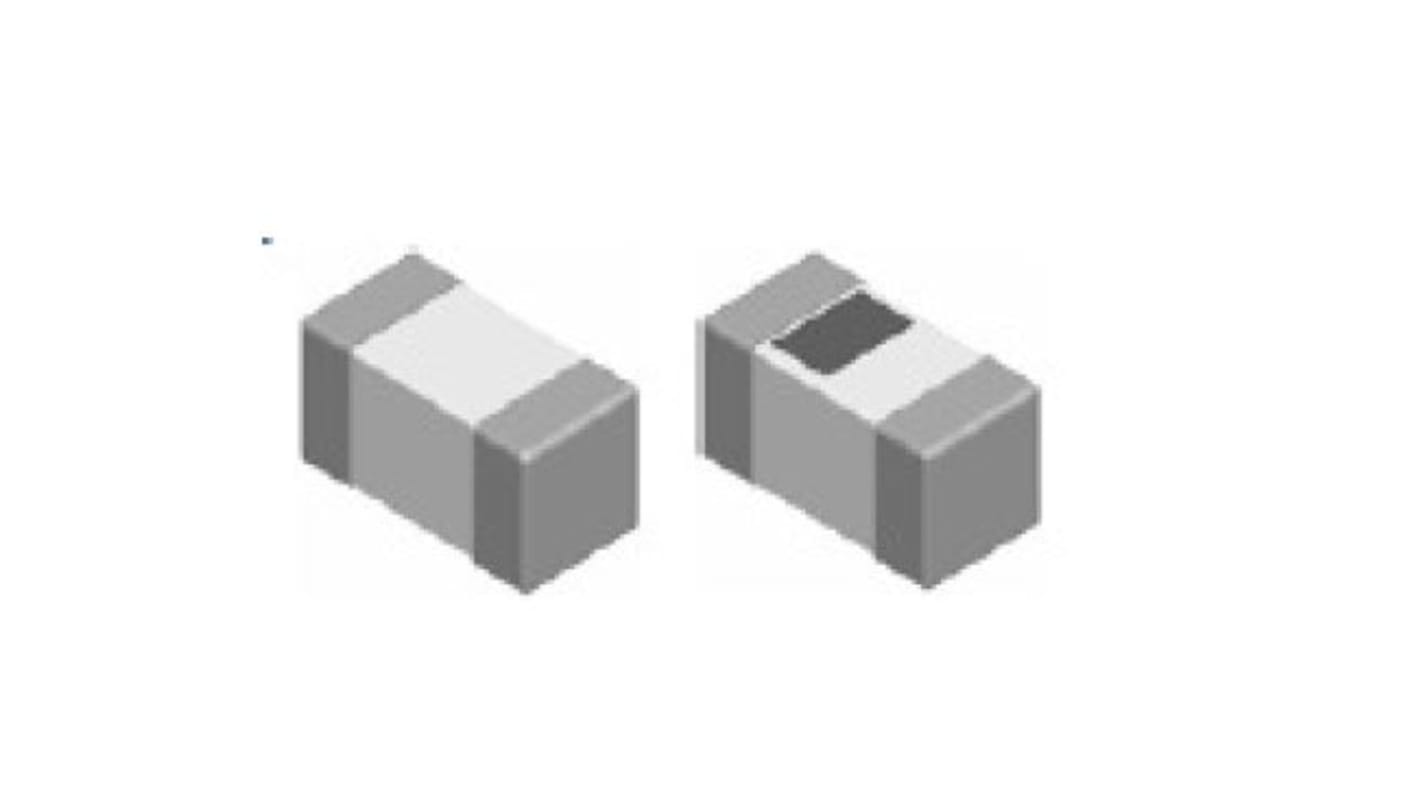

RS PRO, 0402 Wire-wound SMD Inductor with a Ceramic Core, 47nH ±5% Multilayer 250mA Idc
- RS Stock No.:
- 256-7643
- Mfr. Part No.:
- RSMLCI02JT47N-S
- Manufacturer:
- RS PRO
Save 25% when you buy 50000 units
Subtotal (1 tape of 50 units)*
MYR2.90
MYR2.90
FREE delivery for orders over RM 500.00
In Stock
- 9,550 unit(s) ready to ship from another location
- Plus 999,990,400 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* |
|---|---|---|
| 50 - 2450 | MYR0.058 | MYR2.90 |
| 2500 - 4950 | MYR0.057 | MYR2.85 |
| 5000 - 12450 | MYR0.053 | MYR2.65 |
| 12500 - 49950 | MYR0.048 | MYR2.40 |
| 50000 + | MYR0.043 | MYR2.15 |
*price indicative
- RS Stock No.:
- 256-7643
- Mfr. Part No.:
- RSMLCI02JT47N-S
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inductance | 47nH | |
| Maximum DC Current | 250mA | |
| Package/Case | 0402 | |
| Length | 1mm | |
| Automotive Standard | IEC 60950-1, IEC 62368-1 | |
| Depth | 0.5mm | |
| Height | 0.5mm | |
| Dimensions | 1 x 0.5 x 0.5mm | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 1.10Ω | |
| Core Material | Ceramic | |
| Maximum Self Resonant Frequency | 1.10GHz | |
| Inductor Construction | Multilayer | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Inductance 47nH | ||
Maximum DC Current 250mA | ||
Package/Case 0402 | ||
Length 1mm | ||
Automotive Standard IEC 60950-1, IEC 62368-1 | ||
Depth 0.5mm | ||
Height 0.5mm | ||
Dimensions 1 x 0.5 x 0.5mm | ||
Tolerance ±5% | ||
Maximum DC Resistance 1.10Ω | ||
Core Material Ceramic | ||
Maximum Self Resonant Frequency 1.10GHz | ||
Inductor Construction Multilayer | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -55°C | ||
