Units	Per Unit	Per Reel**
2000 - 2000	MYR1.254	MYR2,508.00
4000 - 6000	MYR1.226	MYR2,452.00
8000 +	MYR1.204	MYR2,408.00

Select all	Attribute	Value
	Brand	Bourns
	Inductance	15 μH
	Maximum DC Current	920mA
	Package/Case	0403
	Length	4.5mm
	Depth	4mm
	Height	3.2mm
	Diameter	4.5mm
	Dimensions	4.5 x 4 x 3.2mm
	Shielded	No
	Tolerance	±20%
	Maximum DC Resistance	240mΩ
	Series	SDR0403
	Core Material	Ferrite DR
	Maximum Self Resonant Frequency	28MHz
	Minimum Quality Factor	28
	Inductor Construction	Ferrite Core
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+125°C

	Select all
	Brand Bourns
	Inductance 15 μH
	Maximum DC Current 920mA
	Package/Case 0403
	Length 4.5mm
	Depth 4mm
	Height 3.2mm
	Diameter 4.5mm
	Dimensions 4.5 x 4 x 3.2mm
	Shielded No
	Tolerance ±20%
	Maximum DC Resistance 240mΩ
	Series SDR0403
	Core Material Ferrite DR
	Maximum Self Resonant Frequency 28MHz
	Minimum Quality Factor 28
	Inductor Construction Ferrite Core
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +125°C

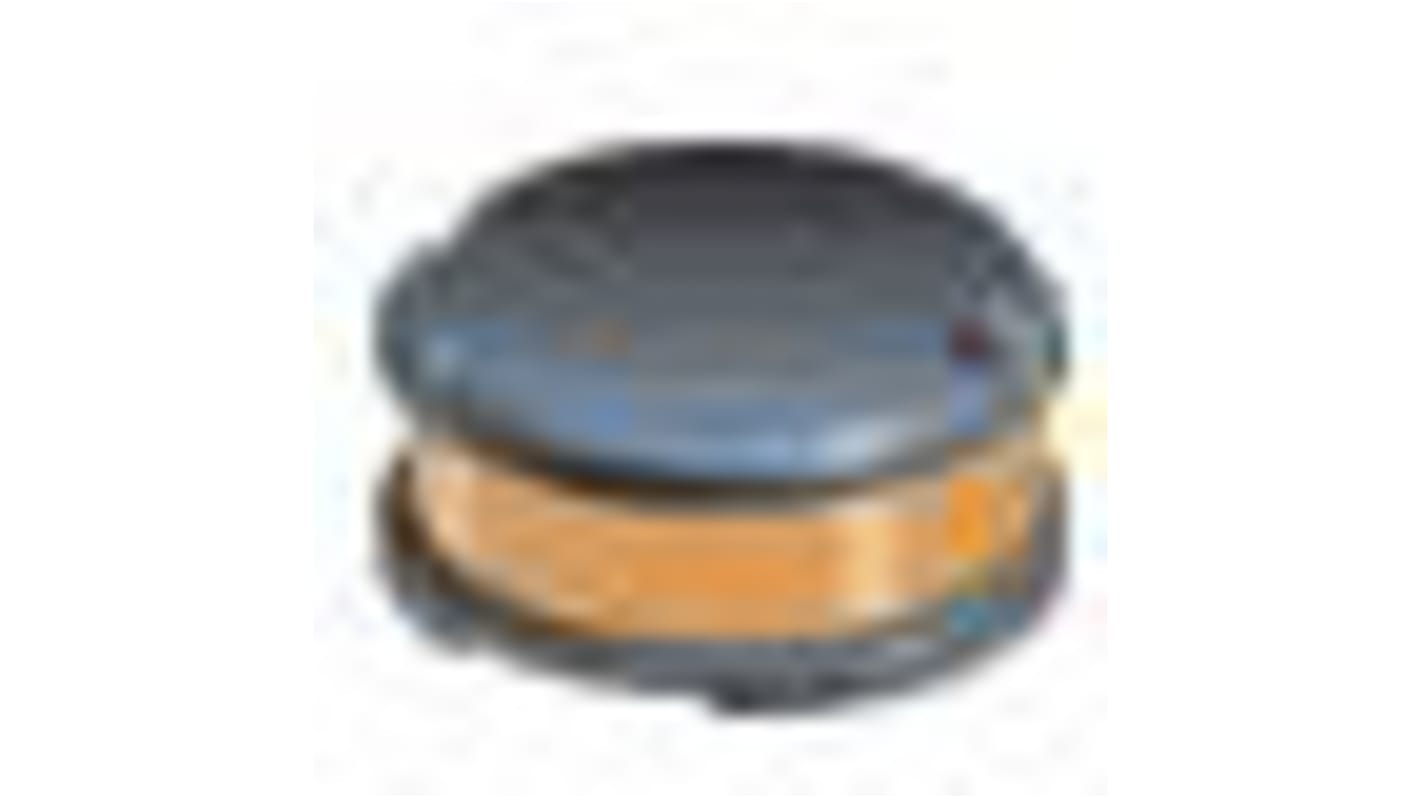

Bourns, SDR0403, 0403 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 15 μH ±20% Ferrite Core 920mA Idc Q:28
