Bourns, SDR1307, 1307 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 150 μH ±10% Wire-Wound 2.6A Idc Q:20
- RS Stock No.:
- 172-8516
- Mfr. Part No.:
- SDR1307-151KL
- Manufacturer:
- Bourns

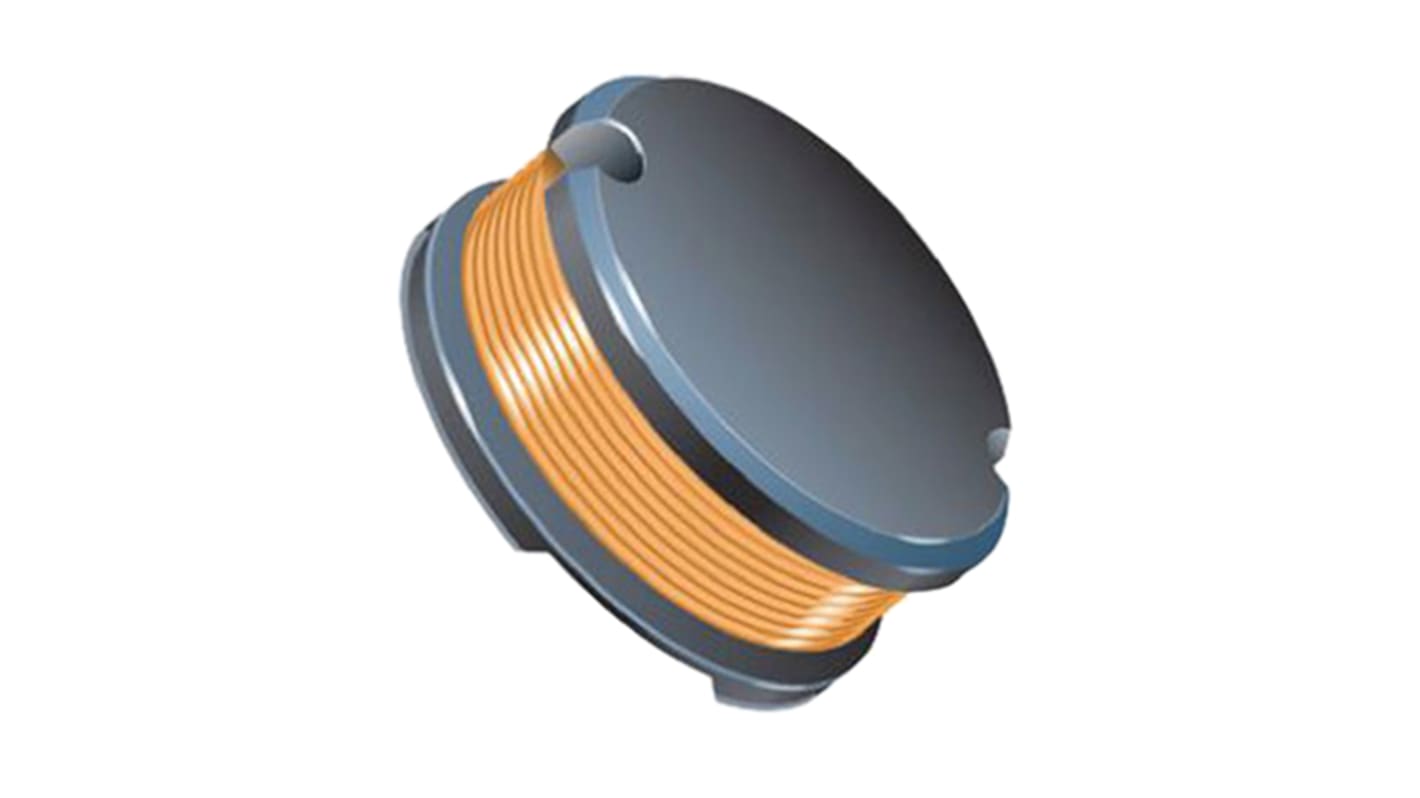

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 400 units)*
MYR1,064.00
FREE delivery for orders over RM 500.00
In Stock
- 400 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 400 - 400 | MYR2.66 | MYR1,064.00 |
| 800 - 1200 | MYR2.602 | MYR1,040.80 |
| 1600 + | MYR2.554 | MYR1,021.60 |
*price indicative
- RS Stock No.:
- 172-8516
- Mfr. Part No.:
- SDR1307-151KL
- Manufacturer:
- Bourns
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 150 μH | |
| Maximum DC Current | 2.6A | |
| Package/Case | 1307 | |
| Length | 13mm | |
| Depth | 13mm | |
| Height | 7mm | |
| Diameter | 13mm | |
| Dimensions | 13 x 13 x 7mm | |
| Shielded | No | |
| Tolerance | ±10% | |
| Maximum DC Resistance | 250mΩ | |
| Series | SDR1307 | |
| Core Material | Ferrite DR | |
| Maximum Self Resonant Frequency | 4.5MHz | |
| Minimum Quality Factor | 20 | |
| Minimum Operating Temperature | -40°C | |
| Inductor Construction | Wire-Wound | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 150 μH | ||
Maximum DC Current 2.6A | ||
Package/Case 1307 | ||
Length 13mm | ||
Depth 13mm | ||
Height 7mm | ||
Diameter 13mm | ||
Dimensions 13 x 13 x 7mm | ||
Shielded No | ||
Tolerance ±10% | ||
Maximum DC Resistance 250mΩ | ||
Series SDR1307 | ||
Core Material Ferrite DR | ||
Maximum Self Resonant Frequency 4.5MHz | ||
Minimum Quality Factor 20 | ||
Minimum Operating Temperature -40°C | ||
Inductor Construction Wire-Wound | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- CN
SDR1307 Series Wire Wound Chokes
Bourns SDR1307 Series SMD Power Inductors with a low profile of only 7mm. Applications include input/output of DC/DC converters and power supplies for: Portable communication equipment; Camcorders; LCD TVs; Car radios
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
