Wurth Elektronik, WE-CAIR, 3168 Unshielded Surface Mount Air Coil Inductor with a Copper Core, 43 nH ±5 % 4 A Idc Q:106
- RS Stock No.:
- 163-8197
- Mfr. Part No.:
- 744914143
- Manufacturer:
- Wurth Elektronik

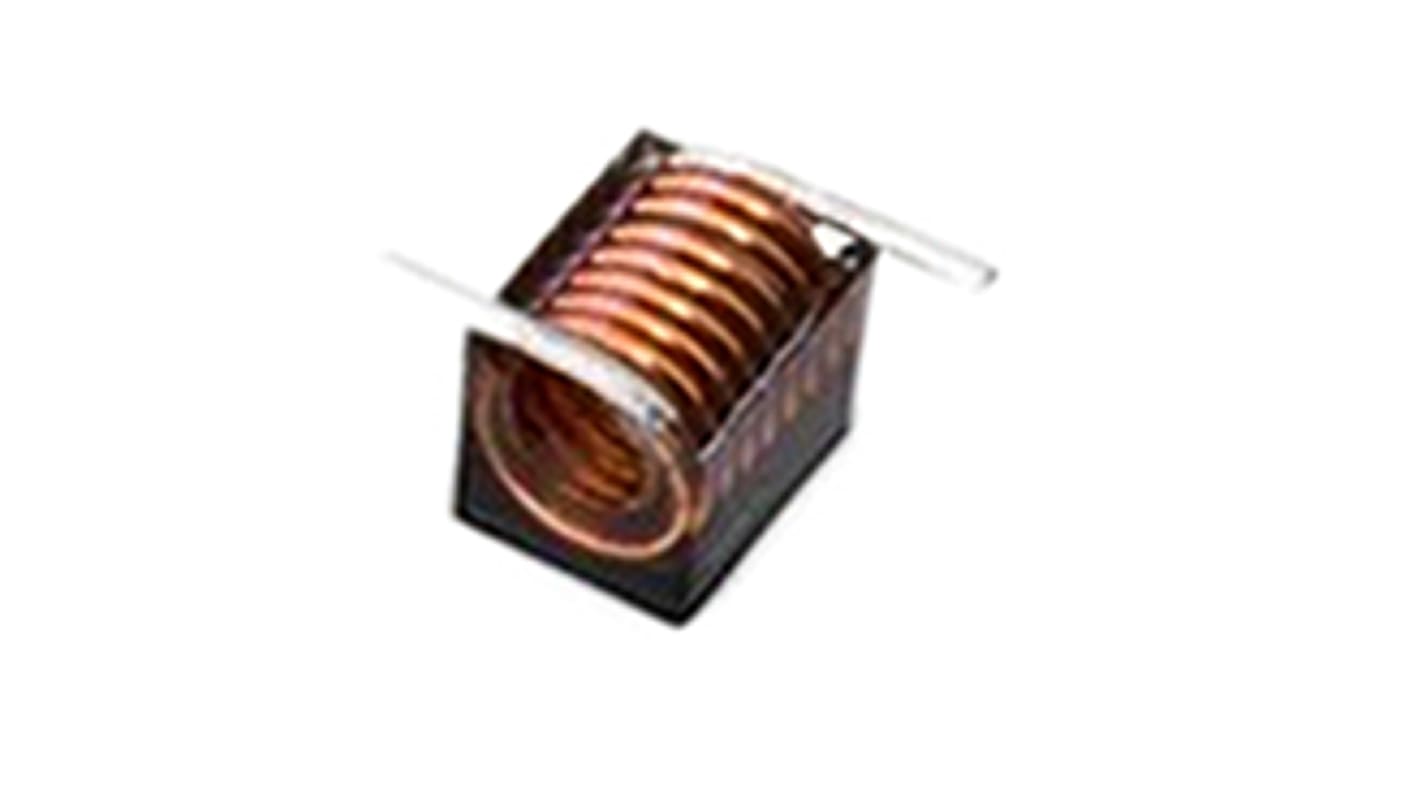

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 500 units)*
MYR1,672.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 500 - 500 | MYR3.344 | MYR1,672.00 |
| 1000 - 1500 | MYR3.27 | MYR1,635.00 |
| 2000 + | MYR3.21 | MYR1,605.00 |
*price indicative
- RS Stock No.:
- 163-8197
- Mfr. Part No.:
- 744914143
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 43nH | |
| Product Type | Surface Mount Air Coil Inductor | |
| Maximum DC Current | 4A | |
| Package/Case | 3168 | |
| Length | 6.86mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | No | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 7.9mΩ | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-CAIR | |
| Inductance Tolerance | ±5 % | |
| Depth | 3.05mm | |
| Standards/Approvals | RoHS, REACH | |
| Termination Style | Solder | |
| Core Material | Copper | |
| Height | 3.18mm | |
| Maximum Self Resonant Frequency | 1.2GHz | |
| Inductor Construction | Wirewound | |
| Minimum Quality Factor | 106 | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 43nH | ||
Product Type Surface Mount Air Coil Inductor | ||
Maximum DC Current 4A | ||
Package/Case 3168 | ||
Length 6.86mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding No | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 7.9mΩ | ||
Maximum Operating Temperature 125°C | ||
Series WE-CAIR | ||
Inductance Tolerance ±5 % | ||
Depth 3.05mm | ||
Standards/Approvals RoHS, REACH | ||
Termination Style Solder | ||
Core Material Copper | ||
Height 3.18mm | ||
Maximum Self Resonant Frequency 1.2GHz | ||
Inductor Construction Wirewound | ||
Minimum Quality Factor 106 | ||
Moulded No | ||
WE-CAIR Air Coil Inductors
WE-CAIR Air coil SMD RF Inductors, with a high self-resonant frequency, a very high quality factor (>100), currents of up to 3.5A and Inductance values from 22nH up to 120nH. The WE-CAIR Air coil inductors are pick and place compatible and have tinned connector pins making them easy to solder. The WE-CAIR series are designed especially for high current RF applications such as Broad band filtering and RF-Decoupling.
