Wurth, WE-KI, 0805C Wire-wound SMD Inductor with a Ceramic Core, 0.56 μH ±5% Wire-Wound 230mA Idc Q:23
- RS Stock No.:
- 163-4163
- Mfr. Part No.:
- 744760256C
- Manufacturer:
- Wurth Elektronik

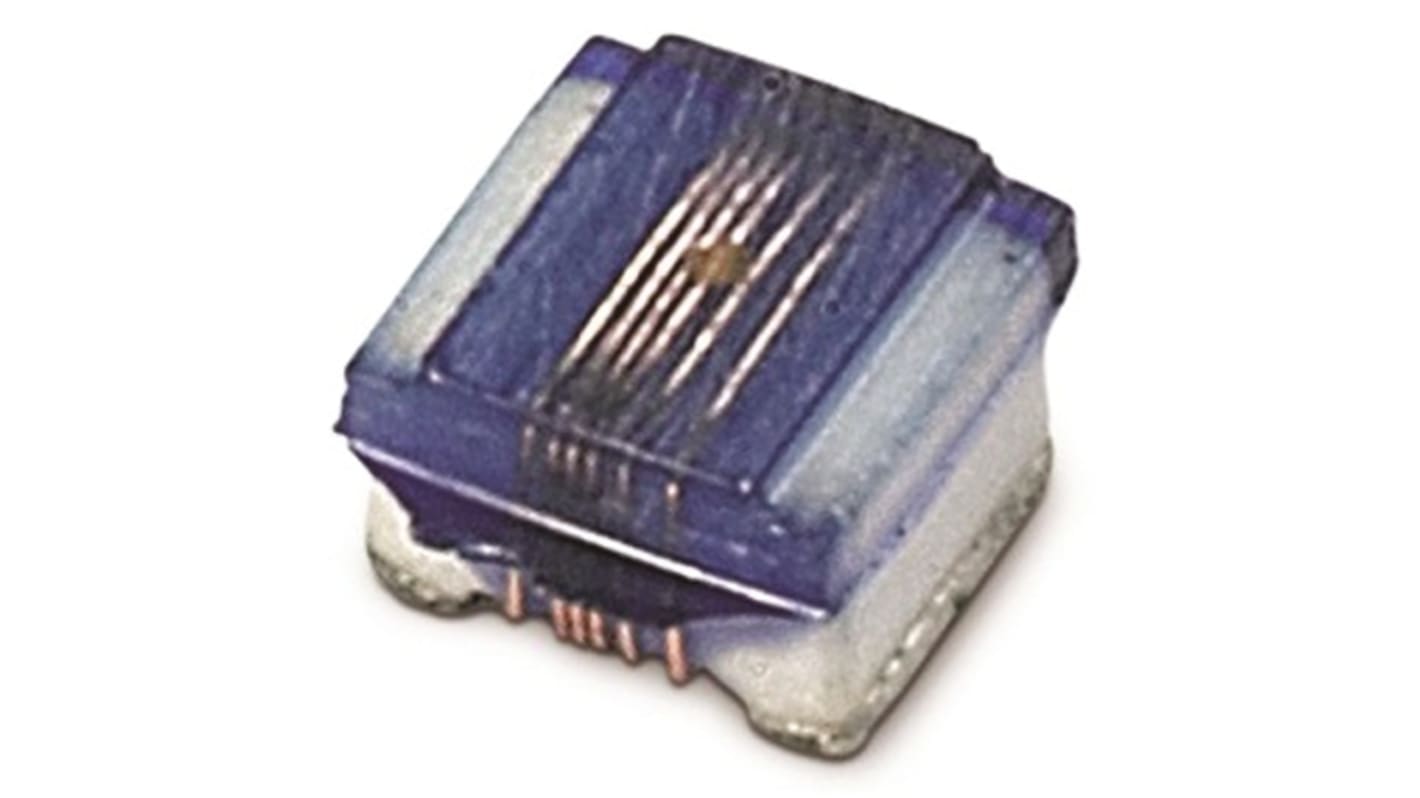

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 2000 units)*
MYR2,156.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 999,998,000 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | MYR1.078 | MYR2,156.00 |
| 4000 - 6000 | MYR1.054 | MYR2,108.00 |
| 8000 + | MYR1.035 | MYR2,070.00 |
*price indicative
- RS Stock No.:
- 163-4163
- Mfr. Part No.:
- 744760256C
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 0.56 μH | |
| Maximum DC Current | 230mA | |
| Package/Case | 0805C | |
| Length | 2.28mm | |
| Depth | 1.7mm | |
| Height | 1.28mm | |
| Dimensions | 2.28 x 1.7 x 1.28mm | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 2.5Ω | |
| Series | WE-KI | |
| Core Material | Ceramic | |
| Maximum Self Resonant Frequency | 340MHz | |
| Minimum Operating Temperature | -40°C | |
| Minimum Quality Factor | 23 | |
| Maximum Operating Temperature | +125°C | |
| Inductor Construction | Wire-Wound | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 0.56 μH | ||
Maximum DC Current 230mA | ||
Package/Case 0805C | ||
Length 2.28mm | ||
Depth 1.7mm | ||
Height 1.28mm | ||
Dimensions 2.28 x 1.7 x 1.28mm | ||
Tolerance ±5% | ||
Maximum DC Resistance 2.5Ω | ||
Series WE-KI | ||
Core Material Ceramic | ||
Maximum Self Resonant Frequency 340MHz | ||
Minimum Operating Temperature -40°C | ||
Minimum Quality Factor 23 | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- MY
Wurth 0805 WE-KI Series Wirewound Ceramic Inductors
Wurth WE-KI Series 0805 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recommended for these products.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
