Units	Per Unit	Per Reel*
800 - 800	MYR5.852	MYR4,681.60
1600 - 2400	MYR5.723	MYR4,578.40
3200 +	MYR5.618	MYR4,494.40

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Inductance	220 μH
	Maximum DC Current	750mA
	Package/Case	1038
	Length	10mm
	Depth	10mm
	Height	3.8mm
	Dimensions	10 x 10 x 3.8mm
	Shielded	Yes
	Tolerance	±30%
	Maximum DC Resistance	740mΩ
	Series	WE-TPC
	Core Material	Ferrite
	Maximum Self Resonant Frequency	6MHz
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+125°C
	Inductor Construction	Wire-Wound

	Select all
	Brand Wurth Elektronik
	Inductance 220 μH
	Maximum DC Current 750mA
	Package/Case 1038
	Length 10mm
	Depth 10mm
	Height 3.8mm
	Dimensions 10 x 10 x 3.8mm
	Shielded Yes
	Tolerance ±30%
	Maximum DC Resistance 740mΩ
	Series WE-TPC
	Core Material Ferrite
	Maximum Self Resonant Frequency 6MHz
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +125°C
	Inductor Construction Wire-Wound

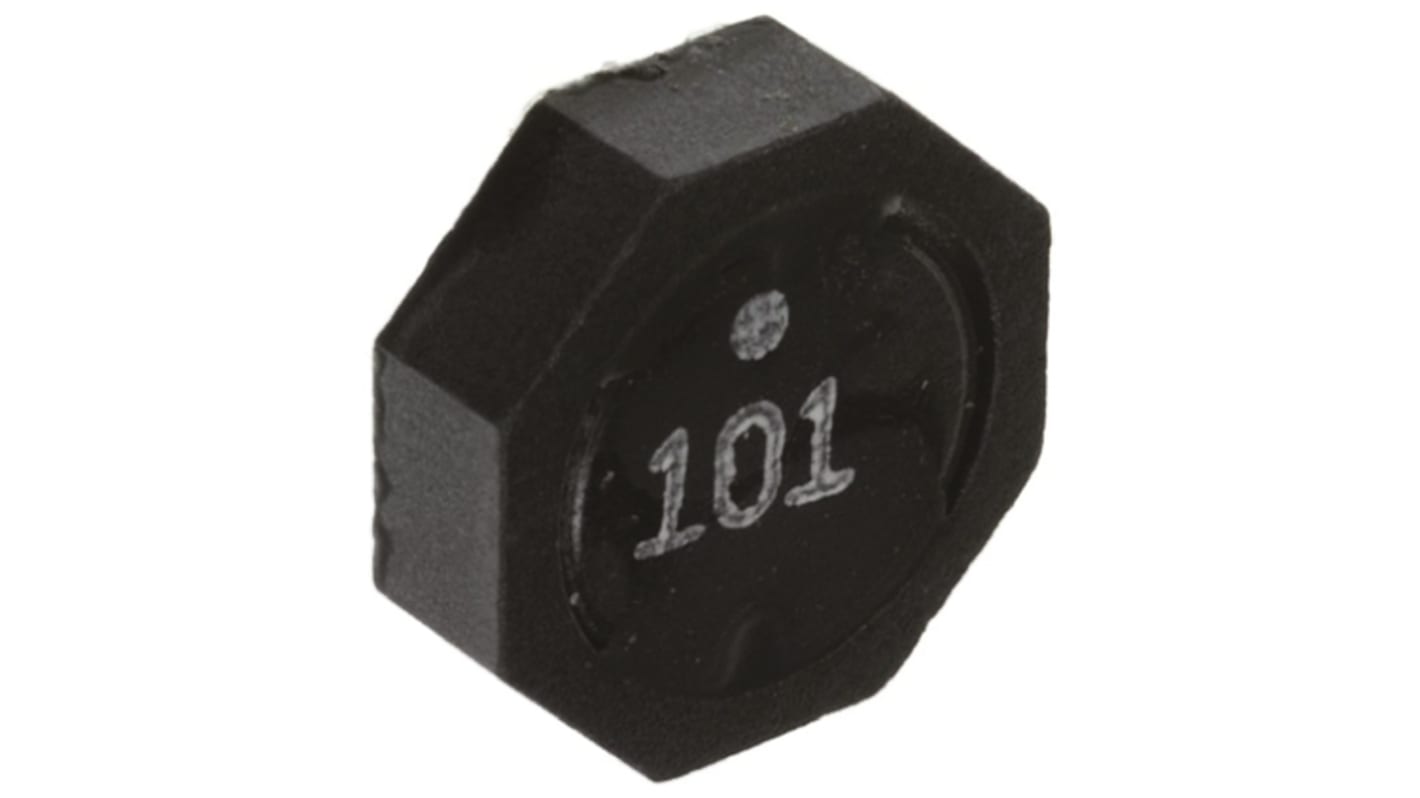

Wurth, WE-TPC, 1038 Shielded Wire-wound SMD Inductor with a Ferrite Core, 220 μH ±30% Wire-Wound 750mA Idc

FREE delivery for orders over RM 500.00

WE-TPC Series 10mm Square Magnetically Shielded Wire Wound Chokes
