Units	Per Unit	Per Reel*
1000 - 1000	MYR6.365	MYR6,365.00
2000 - 3000	MYR6.225	MYR6,225.00
4000 +	MYR6.11	MYR6,110.00

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Inductance	15 μH
	Maximum DC Current	1.6A
	Length	7.3mm
	Depth	7.3mm
	Height	4.5mm
	Dimensions	7.3 x 7.3 x 4.5mm
	Shielded	Yes
	Tolerance	±20%
	Maximum DC Resistance	810mΩ
	Series	WE-PD
	Core Material	Ferrite
	Maximum Self Resonant Frequency	19.5MHz
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+125°C
	Inductor Construction	Shielded

	Select all
	Brand Wurth Elektronik
	Inductance 15 μH
	Maximum DC Current 1.6A
	Length 7.3mm
	Depth 7.3mm
	Height 4.5mm
	Dimensions 7.3 x 7.3 x 4.5mm
	Shielded Yes
	Tolerance ±20%
	Maximum DC Resistance 810mΩ
	Series WE-PD
	Core Material Ferrite
	Maximum Self Resonant Frequency 19.5MHz
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +125°C
	Inductor Construction Shielded

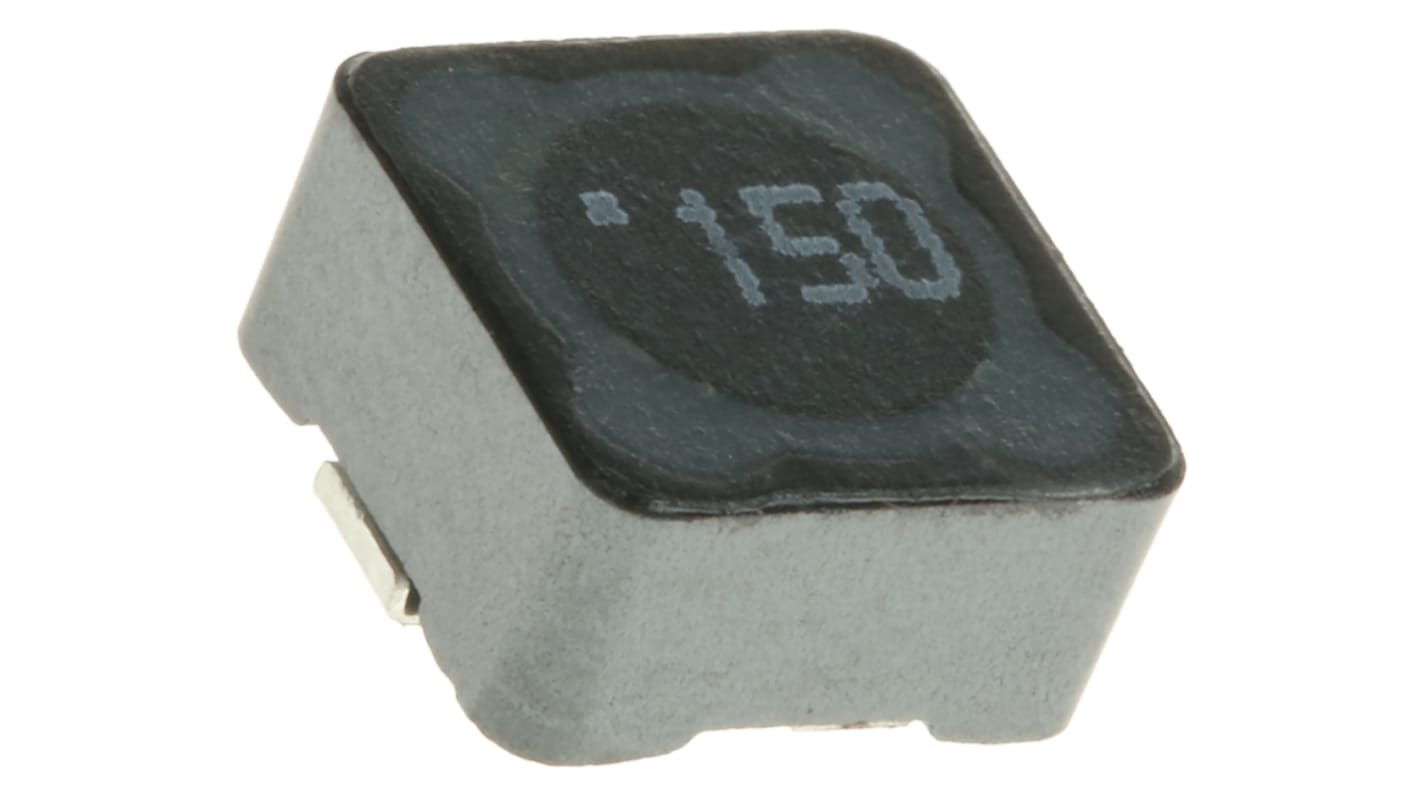

Wurth, WE-PD Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH ±20% Shielded 1.6A Idc

FREE delivery for orders over RM 500.00

WE-PD Series Magnetically Shielded Wire Wound Chokes

Applications

Note

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
