Abracon 1 F Supercapacitor 0/30 % Tolerance, ADCC-S05R5S 5.5 V dc, Through Hole
- RS Stock No.:
- 266-460
- Mfr. Part No.:
- ADCC-S05R5SA105RB
- Manufacturer:
- Abracon

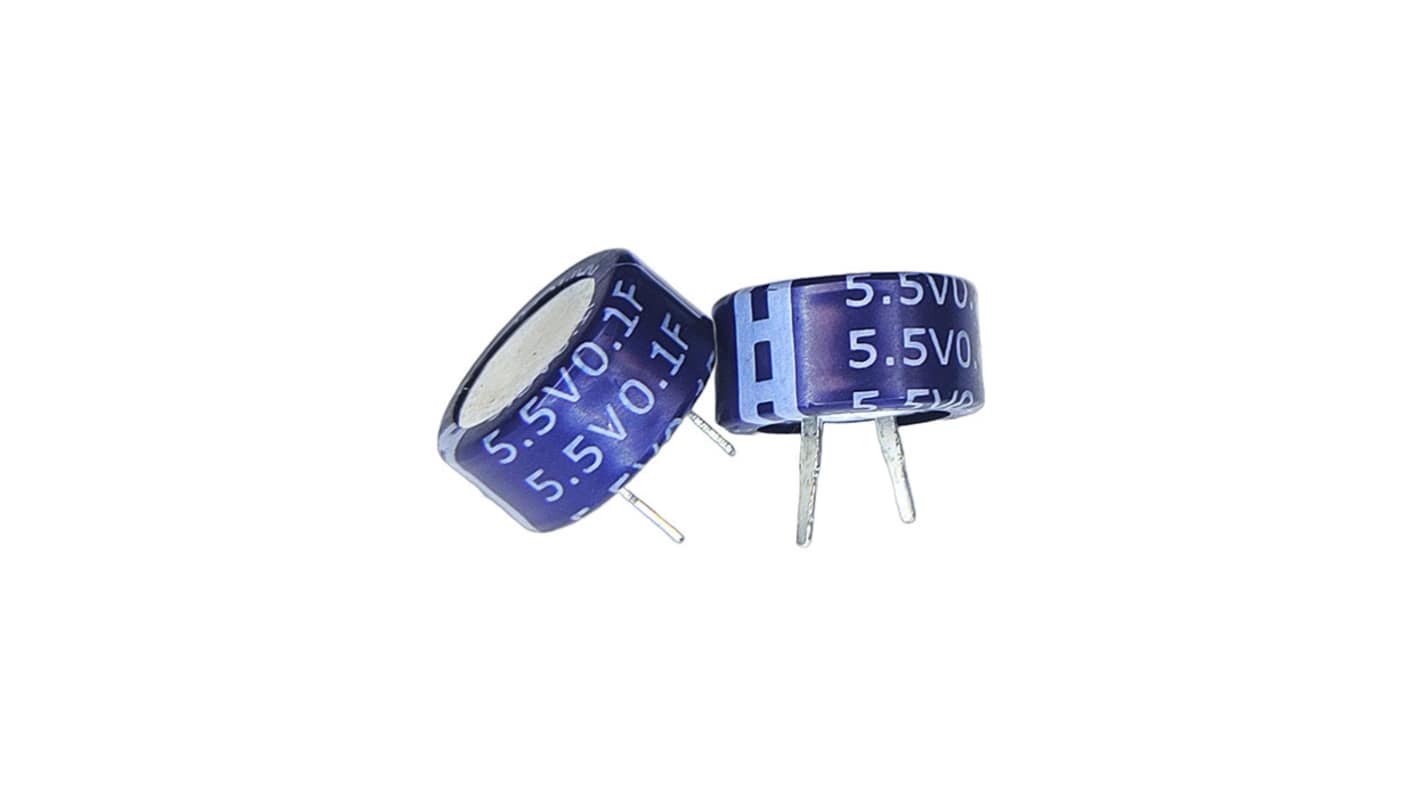

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR44.23
FREE delivery for orders over RM 500.00
In Stock
- 365 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | MYR8.846 | MYR44.23 |
| 50 - 95 | MYR8.406 | MYR42.03 |
| 100 - 495 | MYR7.786 | MYR38.93 |
| 500 - 995 | MYR7.164 | MYR35.82 |
| 1000 + | MYR6.906 | MYR34.53 |
*price indicative
- RS Stock No.:
- 266-460
- Mfr. Part No.:
- ADCC-S05R5SA105RB
- Manufacturer:
- Abracon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Supercapacitor | |
| Capacitance | 1F | |
| Voltage | 5.5 V dc | |
| Mount Type | Through Hole | |
| Packaging | Bulk | |
| Diameter | 20.5 mm | |
| Automotive Standard | No | |
| Lead Diameter | 0.45mm | |
| Polarity | Polar | |
| Lead Pitch | 5mm | |
| Terminal Type | Lead | |
| Leakage Current | 8μA | |
| Minimum Operating Temperature | -25°C | |
| Equivalent Series Resistance ESR | 15Ω | |
| Pin Count | 2 | |
| Lifetime | 500000 Cycles | |
| Maximum Operating Temperature | 70°C | |
| Height | 7.4mm | |
| Standards/Approvals | RoHS, No SVHC (as of 27-Jun-2024) | |
| Series | ADCC-S05R5S | |
| Tolerance | 0/30 % | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Supercapacitor | ||
Capacitance 1F | ||
Voltage 5.5 V dc | ||
Mount Type Through Hole | ||
Packaging Bulk | ||
Diameter 20.5 mm | ||
Automotive Standard No | ||
Lead Diameter 0.45mm | ||
Polarity Polar | ||
Lead Pitch 5mm | ||
Terminal Type Lead | ||
Leakage Current 8μA | ||
Minimum Operating Temperature -25°C | ||
Equivalent Series Resistance ESR 15Ω | ||
Pin Count 2 | ||
Lifetime 500000 Cycles | ||
Maximum Operating Temperature 70°C | ||
Height 7.4mm | ||
Standards/Approvals RoHS, No SVHC (as of 27-Jun-2024) | ||
Series ADCC-S05R5S | ||
Tolerance 0/30 % | ||
- COO (Country of Origin):
- CN
The Abracon Coin type super capacitor with horizontal centre pins offers high power density and minimal discharge rate, maintaining less than 20 percent discharge over 72 hours.
RoHS and RoHS II compliant
Excellent cycle life
