Abracon 1 F Supercapacitor 0/30 % Tolerance, ADCH-S05R5S 5.5 V dc, Through Hole
- RS Stock No.:
- 266-456
- Mfr. Part No.:
- ADCH-S05R5SA105RB
- Manufacturer:
- Abracon

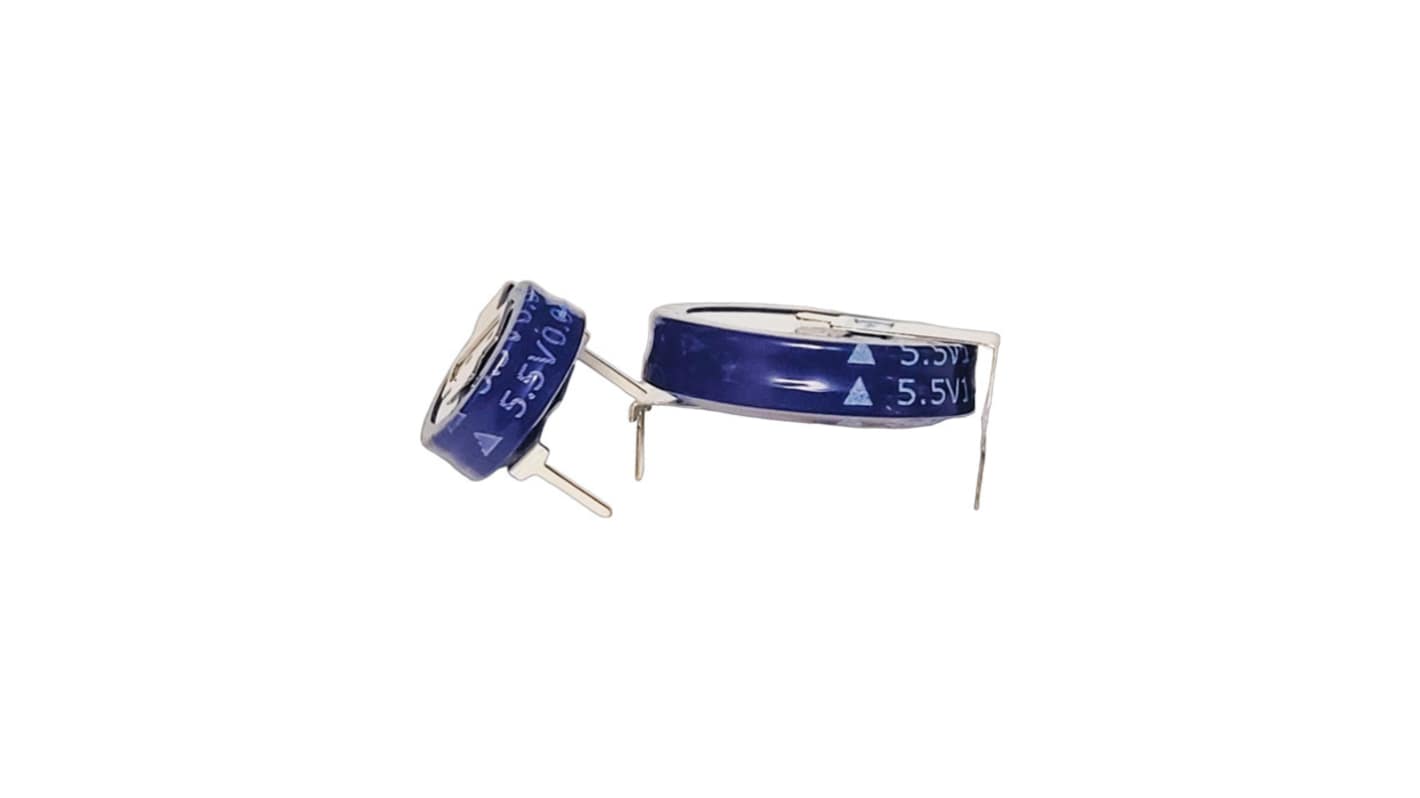

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR43.58
FREE delivery for orders over RM 500.00
In Stock
- Plus 645 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | MYR8.716 | MYR43.58 |
| 50 - 95 | MYR8.278 | MYR41.39 |
| 100 - 495 | MYR7.67 | MYR38.35 |
| 500 - 995 | MYR7.062 | MYR35.31 |
| 1000 + | MYR6.802 | MYR34.01 |
*price indicative
- RS Stock No.:
- 266-456
- Mfr. Part No.:
- ADCH-S05R5SA105RB
- Manufacturer:
- Abracon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Supercapacitor | |
| Capacitance | 1F | |
| Voltage | 5.5 V dc | |
| Mount Type | Through Hole | |
| Packaging | Bulk | |
| Automotive Standard | No | |
| Diameter | 18.7 mm | |
| Leakage Current | 8μA | |
| Minimum Operating Temperature | -25°C | |
| Equivalent Series Resistance ESR | 15Ω | |
| Maximum Operating Temperature | 70°C | |
| Lifetime | 500000 Cycles | |
| Standards/Approvals | RoHS/RoHS II | |
| Series | ADCH-S05R5S | |
| Height | 6mm | |
| Depth | 5.3mm | |
| Tolerance | 0/30 % | |
| Capacitor Family | Supercapacitor | |
| Package/Case | Bulk | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Supercapacitor | ||
Capacitance 1F | ||
Voltage 5.5 V dc | ||
Mount Type Through Hole | ||
Packaging Bulk | ||
Automotive Standard No | ||
Diameter 18.7 mm | ||
Leakage Current 8μA | ||
Minimum Operating Temperature -25°C | ||
Equivalent Series Resistance ESR 15Ω | ||
Maximum Operating Temperature 70°C | ||
Lifetime 500000 Cycles | ||
Standards/Approvals RoHS/RoHS II | ||
Series ADCH-S05R5S | ||
Height 6mm | ||
Depth 5.3mm | ||
Tolerance 0/30 % | ||
Capacitor Family Supercapacitor | ||
Package/Case Bulk | ||
- COO (Country of Origin):
- CN
The Abracon Coin Type Super capacitor features a horizontal configuration, offering high power density with a minimal discharge rate of 72 hours at less than 20% discharge.
RoHS and RoHS II compliant
Excellent cycle life
