RS PRO Heat Shrink Splice Connector, Insulated 0.5-1.5 → 1.5-2.5 mm², 22-16 → 16-14 AWG

RS Stock No.:: 178-7188
Manufacturer:: RS PRO

RS PRO Heat Shrink Splice Connector, Insulated 0.5-1.5 → 1.5-2.5 mm², 22-16 → 16-14 AWG

Bulk discount available

Subtotal (1 bag of 50 units)*

MYR176.70

FREE delivery for orders over RM 500.00

In Stock

300 unit(s) ready to ship from another location
Plus 1,000 unit(s) shipping from 09 December 2025
Plus 3,000 unit(s) shipping from 06 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Bag*
50 - 450	MYR3.534	MYR176.70
500 - 950	MYR3.46	MYR173.00
1000 - 2450	MYR3.357	MYR167.85
2500 - 12450	MYR3.274	MYR163.70
12500 +	MYR2.695	MYR134.75

*price indicative

RS Stock No.:: 178-7188
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Splice Type	Heat Shrink
	Wire Size	0.5-1.5 → 1.5-2.5 mm², 22-16 → 16-14 AWG
	Minimum Wire Size mm²	0.5-1.5mm²
	Maximum Wire Size mm²	1.5-2.5mm²
	Overall Length	36mm
	Diameter	1.7 (d2) mm, 2.3 (d1) mm
	Minimum Wire Size AWG	22-16AWG
	Maximum Wire Size AWG	16-14AWG
	Insulation	Insulated
	Contact Material	Copper

	Select all
	Brand RS PRO
	Splice Type Heat Shrink
	Wire Size 0.5-1.5 → 1.5-2.5 mm², 22-16 → 16-14 AWG
	Minimum Wire Size mm² 0.5-1.5mm²
	Maximum Wire Size mm² 1.5-2.5mm²
	Overall Length 36mm
	Diameter 1.7 (d2) mm, 2.3 (d1) mm
	Minimum Wire Size AWG 22-16AWG
	Maximum Wire Size AWG 16-14AWG
	Insulation Insulated
	Contact Material Copper

COO (Country of Origin):: TW

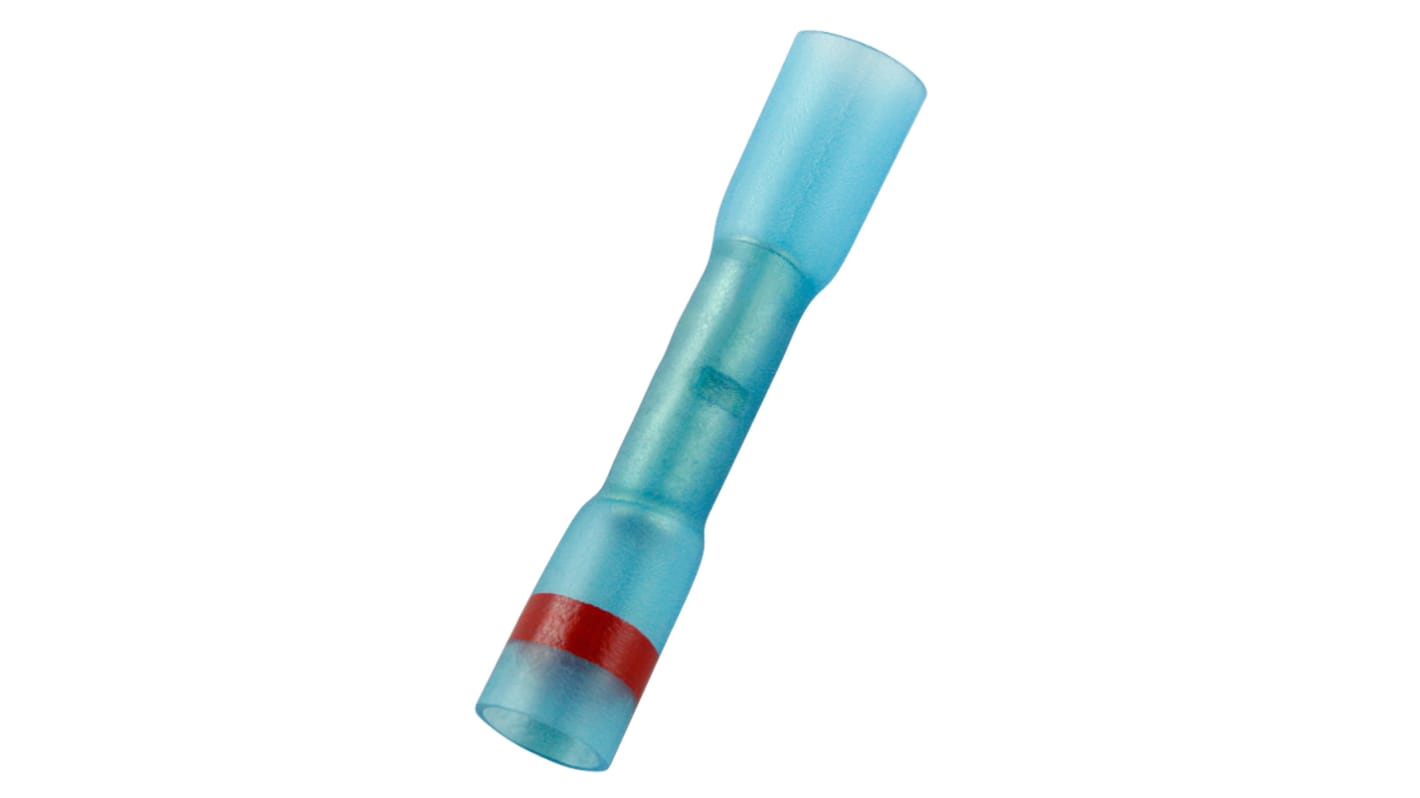

The RS PRO Splice connector is an insulated connector with length of 36mm and has wire size of 14AWG.

Colour: Blue with red colour ring
Contact Material: Copper

RS PRO Heat Shrink Splice Connector, Insulated 0.5-1.5 → 1.5-2.5 mm², 22-16 → 16-14 AWG
