Select all	Attribute	Value
	Brand	Carlo Gavazzi
	Maximum Load Current	85 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	660 V ac
	Minimum Load Voltage	180 V ac
	Maximum Control Voltage	10 V dc
	Minimum Control Voltage	0 V dc
	Switching Type	Proportional
	Control Voltage Range	0 → 10 V dc
	Minimum Load Current	1 A
	Number of Poles	2
	Terminal Type	Screw
	Output Device	Varistor
	Relay Type	Solid State Relay
	Load Voltage Range	180 → 660V ac
	Maximum Turn On Time	1 s
	Series	RGC2P
	Dimensions	72 x 141 x 141mm
	Maximum Operating Temperature	+70°C
	Height	141mm
	Minimum Operating Temperature	-40°C
	Special Features	Heat Sinked
	Depth	141mm
	Operating Temperature Range	-40 → +70°C
	Off State Leakage Current	5 mA
	Length	72mm

	Select all
	Brand Carlo Gavazzi
	Maximum Load Current 85 A
	Mounting Type DIN Rail
	Maximum Load Voltage 660 V ac
	Minimum Load Voltage 180 V ac
	Maximum Control Voltage 10 V dc
	Minimum Control Voltage 0 V dc
	Switching Type Proportional
	Control Voltage Range 0 → 10 V dc
	Minimum Load Current 1 A
	Number of Poles 2
	Terminal Type Screw
	Output Device Varistor
	Relay Type Solid State Relay
	Load Voltage Range 180 → 660V ac
	Maximum Turn On Time 1 s
	Series RGC2P
	Dimensions 72 x 141 x 141mm
	Maximum Operating Temperature +70°C
	Height 141mm
	Minimum Operating Temperature -40°C
	Special Features Heat Sinked
	Depth 141mm
	Operating Temperature Range -40 → +70°C
	Off State Leakage Current 5 mA
	Length 72mm

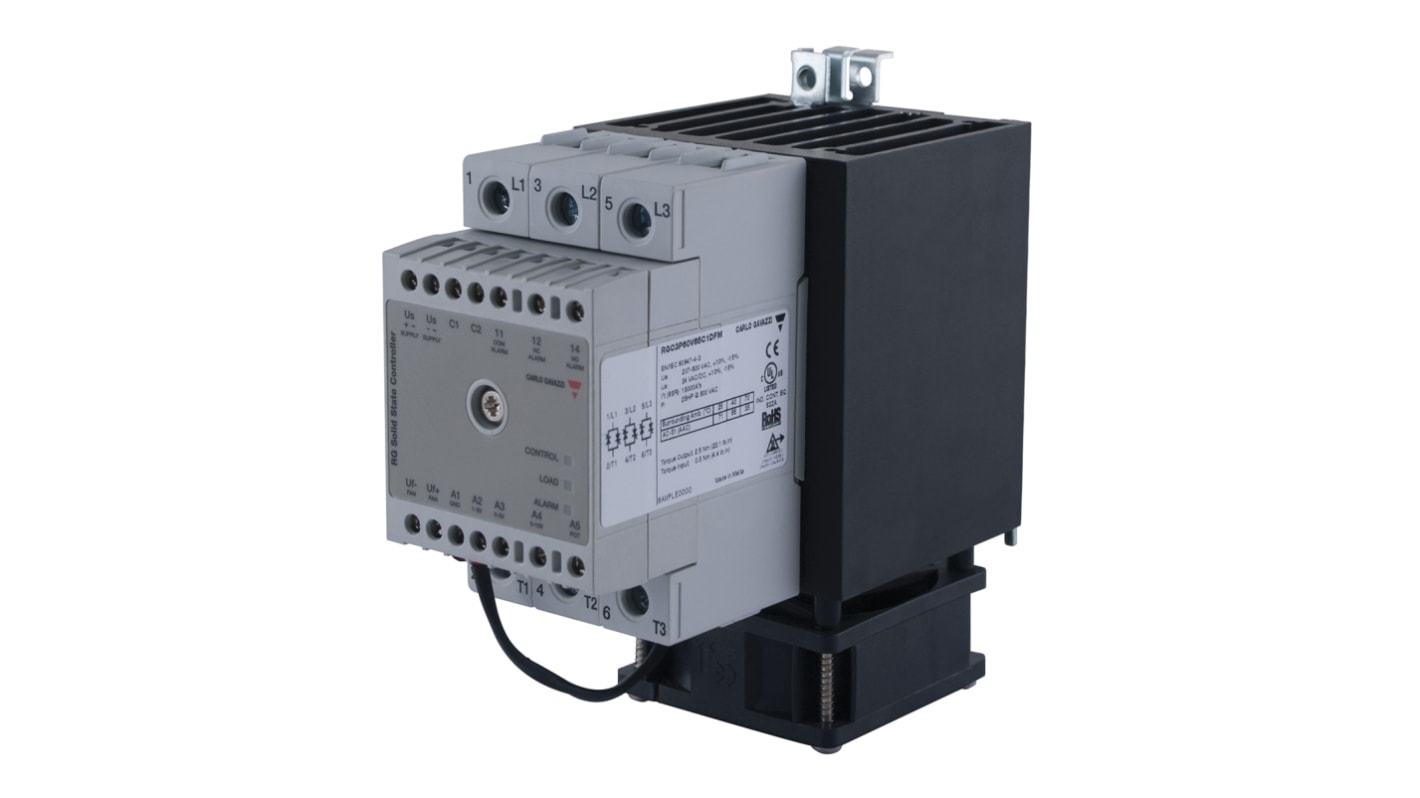

Carlo Gavazzi RGC2P Series Solid State Relay, 85 A Load, DIN Rail Mount, 660 V ac Load, 10 V dc Control
